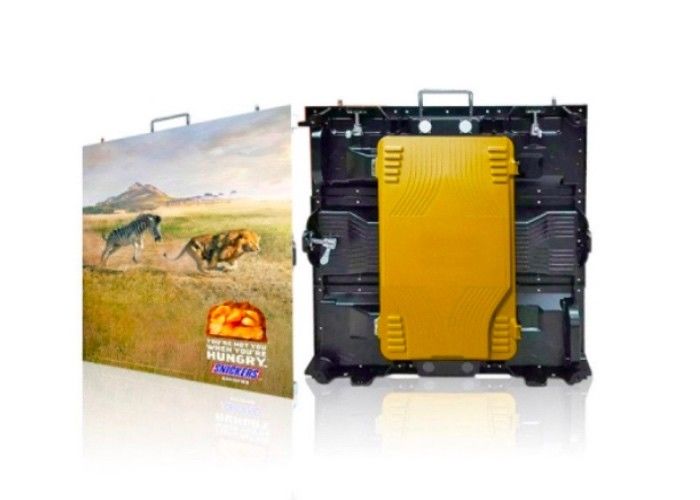

Outdoor P6 LED Stage Display Screen Die Casting Aluminum For Live Show
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GBLED |
| Certification: | CE FCC ROHS UL |
| Model Number: | GRO-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | flight case/ wooden box |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Pixel Pitch: | 6mm | Brightness: | 5000 Nits |
|---|---|---|---|
| Panel Size: | 576mm X 576mm | Materials: | De-casting Aluminum |
| Waterproof: | Yes | ||
| High Light: | led video wall hire,video wall led display |
||
Product Description
Outdoor P6 die-casting aluminum rental led display for live show
Description:
1.Panel size 576mm x 576mm
2.Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
3.High brightness with 5000 nits.
4.Light with only 8.3 kg
5.High refresh rate.
6.Die-casting aluminum with high precision.
7.Fast lock system design and fast aviation connector for power and data.
8.2 years warranty, easy to install & maintenance.
9.CE, ROHS, FCC.
10.IP65 waterproof.
Specifications:
| Outdoor Die-casting Aluminum Rental LED Display | ||||||
| Type | P4(SMD) | P5(SMD) | P6(SMD) | P8(SMD) | P10(SMD) | |
| Module | Pixel Configuration | 1921 | 2727 | 2727 | 2727 | 3535 |
| Pixel Pitch (mm) | 4 | 5 | 6 | 8 | 10 | |
| Module Size (W*H) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 | |
| Module Resolution (W*H) | 64*32 | 32*32 | 32*32 | 32*16 | 32*16 | |
| Panel | Panel Size (W*H) | 512*512 | 640*640 | 576*576 | 512*512 | 640*640 |
| Panel Resolution (W*H) | 160*160 | 160*160 | 160*160 | 128*96 | 96*96 | |
| Panel Weight (kg) | 8 | 9 | 8.5 | 8 | 9 | |
| Maintenance Method | Rear | |||||
| Pixel Denity (Dots/㎡) | 62500 | 40000 | 27777 | 15625 | 10000 | |
| Brightness (cd/㎡) | 5000 | 5000 | 5000 | 5000 | 5000 | |
| Refresh Rate (Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |
| Grey Level (Bit) | 12～16Adjustable | |||||
| Color Temperature (K) | 6500 Adjustable | |||||
| Horizontal/Vertical Viewing Angle (°) | 140/140 | |||||
| Max./Ave.Power Consumption (Per Panel) | 240/80 | 240/80 | 240/80 | 240/80 | 240/80 | |
| Operating Voltage | AC90~240V(50~60Hz) | |||||
| Contrast Ratio | 1/3000 | |||||
| Application | Working Temperature (℃) | -25~65 | ||||
| Working Humidity (RH) | 10~ 85% No Condensation | |||||
| Working Life Span (hrs) | ≥100,000 | |||||
| Certificate | CCC.ETL/UL.CE-TUV.FCC.ROHS | |||||
| Version:V1.0 | ||||||
Good service After-sale
1. Two years warranty for the whole system except human factor and force majeure
2. One year quality warranty, lifetime maintenance, and guarantee the maintenance time in contract.
3. During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge.
4. As to the product quality problems caused by design, manufacture, installation technology, material, the replacement and maintenance are free. The system damage caused by force majeure(flood, fire, earthquake, war and so on) as well as users) man-made disturbance(construction, cleaning ) should be coordinate by both sides to solve.
5. Life-long maintenance for the system: after the guarantee, we only charge the cost of hardware
