Fanless Design LED Backdrop Screen Rental , SMD3528 HD Video Play LED Display Wall

Fanless Design LED Backdrop Screen Rental , SMD3528 HD Video Play LED Display Wall

Product Details:

Place of Origin: China
Brand Name: GBLED
Certification: CE, FCC, ROHS
Model Number: W5.95-I

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight Case
Delivery Time: 10~20 Working Days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 10000SQ.M/Month
Get Best Price Contact Now

Detail Information

Pixel Density: 28224 Dots/sq.m Pixel Type: SMD3528
Service Access: Front And Rear Cabinet Material: Die-cast Aluminum
Module Size: 250*250mm Cabinet Size: 500*500mm
Drive Mode: 1/7 Scan Pixel Pitch: 5.95 Mm
High Light:

indoor led screen hire

,

indoor rental led display

Product Description

Fanless Design Indoor Rental LED Display Panels For Stage Backdrop, 500x500mm

Product Quick Details:

  • Pixel pitch: 5.95mm
  • Front and rear access, much easier maintenance
  • Slim and light weight

Product Features:

  1. Front or rear maintenance, modules and control box can be installed and maintained from either front or rear.
  2. There are handles on modules and cabinets, much more convenient for assemble, disassemble and moving.
  3. Real time working status feedback, real time monitoring and feedback system, easily acquire working status of each module and power supply
  4. Alignment hole and location pin design for installation could achieve extreme precision between cabinets, besides module shaping one time, get seamless splicing and assemble easier.
  5. Cabinet size is 500*500mm, and weight is only 8kg/pc, very light and slim, convenient in transporting and and installation, thus save labor cost and avoid wasting much time, very suitable for flow shows and rents.
  6. Mute design: excellent heat dissipation, the entire screen no fan design, to achieve zero noise, provide quiet working environment.
  7. IC MBI5124 is used, high refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
  8. SMD guarantee super wide viewing angle, higher flatness and better performance, offers you clear and natural images in all directions.

Product Parameter:

Model No. W5.95-I
Pixel Pitch 5.95mm
Pixel Density 28224(dot/m²)
Module Size 250mmx250mm
Module Resolution 42x42
Cabinet Size 500mmx500mm
Cabinet Resolution 84x84(dot)
Cabinet Weight 8kg/pc
Frame Frequency 50&60Hz
Viewing Angle 150°/120°
Brightness ≥1200CD/m²
Drive Mode 1/7 scan, constant current
Best Viewing Angle 5-100m
Cabinet Flatness ≤0.2mm
Protection Level 31(IP)
Pixel Configuration 1R1G1B



Power Consumption



Max: 800W/m²
Avg: 300W/m²
Voltage AC 100V~240V, 50/60 Hz
Refresh Rate ≥1920Hz





LED Parameter



RED: λp(620-625nm) IV:(189-245.7mcd)
Green: λp(520-522.5nm) IV: (550-715mcd)
Blue: λp(465-467.5nm) IV:(90-117mcd)



Warranty:

2 years quality guaranteed, necessary design drawing and user manual step by step will be offered to you.

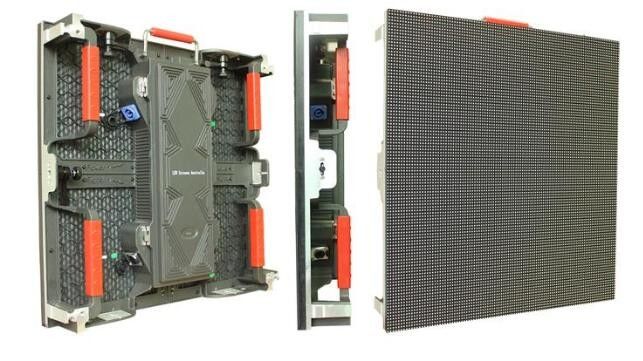

Product Pictures:
Fanless Design LED Backdrop Screen Rental , SMD3528 HD Video Play LED Display Wall 0


Application:
Widely used in high-end conference, high-end hotel, concert, live on TV, wedding, press conference, ceremony gala, exhibition presentation and commercial advertising and other rental events.



Packing List:

  • Flight case, 12pcs cabinets/case,
  • User manual x1pcs
  • Load file x1pcs
  • Cables
  • Modules
  • LEDs
  • Control Cards and other necessary spare parts.
