Scrolling Indoor Rental LED Screen With Die Casting Aluminum Cabinet 500X500MM
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE, FCC, ROHS |
| Model Number: | W6.25-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight Case |
| Delivery Time: | 10~20 Working Days |
| Payment Terms: | T/T, Western Union, Paypal, L/C |
| Supply Ability: | 10000SQ.M/Month |
|
Detail Information |
|||
| Pixel Density: | 25600 Dots/sq.m | Pixel Type: | SMD3528 |
|---|---|---|---|
| Service Access: | Front And Rear | Cabinet Material: | Die-cast Aluminum |
| Module Size: | 250*250mm | Cabinet Size: | 500*500mm |
| Drive Mode: | 1/10 Scan | Pixel Pitch: | 6.25 Mm |
| High Light: | indoor rental led display,led display screen rental |
||
Product Description

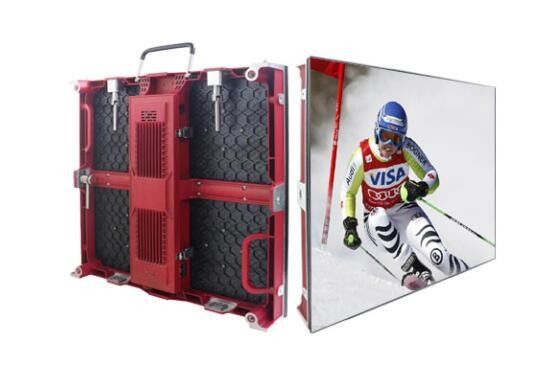

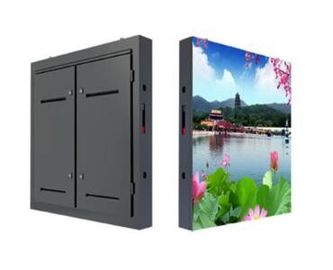

Scrolling Indoor Rental LED Display Board Die-casting Aluminum Cabinet 500x500mm
Product Quick Details:
- Pixel pitch: 6.25mm
- Front and rear access, much easier maintenance
- Slim and light weight
Product Features:
- IC MBI5124 is used, high refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
- Fanless design, excellent natural heat dissipation achieves zero noise, providing quiet working environment, best choice for indoor rental events.
- Cabinet size is 500*500mm, and weight is only 8kg/pc, very light and slim, convenient in transporting and and installation, thus save labor cost and avoid wasting much time, very suitable for flow shows and rents.
- Alignment hole and location pin design for installation could achieve extreme precision between cabinets, besides module shaping one time, get seamless splicing and assemble easier.
- Real time working status feedback, real time monitoring and feedback system, easily acquire working status of each module and power supply
- There are handles on modules and cabinets, much more convenient for assemble, disassemble and moving.
- Front or rear maintenance, modules and control box can be installed and maintained from either front or rear.
Product Parameter:
| Model No. | W6.25-I |
| Pixel Pitch | 6.25mm |
| Pixel Density | 25600(dot/m²) |
| Module Size | 250mmx250mm |
| Module Resolution | 40x40 |
| Cabinet Size | 500mmx500mm |
| Cabinet Resolution | 80x80(dot) |
| Cabinet Weight | 8kg/pc |
| Frame Frequency | 50&60Hz |
| Viewing Angle | 150°/120° |
| Brightness | ≥1200CD/m² |
| Drive Mode | 1/10 scan, constant current |
| Best Viewing Angle | 6-100m |
| Cabinet Flatness | ≤0.2mm |
| Protection Level | 31(IP) |
| Pixel Configuration | 1R1G1B |
|
Power Consumption
|
Max: 800W/m² |
| Avg: 300W/m² | |
| Working Temperature/Humidity | -20℃~60℃/10%~85%RH(non-condensing) |
| Storage Temperature/Humidity | -20℃~60℃/10%~85%RH(non-condensing) |
| Voltage | AC 100V~240V, 50/60 Hz |
| Refresh Rate | ≥1920Hz |
|
LED Parameter
|
RED: λp(620－625nm) IV:(189－245.7mcd) |
| Green: λp(520－522.5nm) IV: (550－715mcd) | |
| Blue: λp(465－467.5nm) IV:(90－117mcd) |
Warranty:
2 years quality guaranteed, necessary design drawing and user manual step by step will be offered to you.
Application:
Widely used in high-end conference, high-end hotel, concert, live on TV, wedding, press conference, ceremony gala, exhibition presentation and commercial advertising and other rental events.
Packing List:
- Flight case, 12pcs cabinets/case,
- User manual x1pcs
- Load file x1pcs
- Cables
- Modules
- LEDs
- Control Cards and other necessary spare parts.
