High Resolution Video Wall LED Display With Front / Rear Maintenance
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE/RoHS/FCC/ETL |
| Model Number: | C391S |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Product Name: | LED Display | Application: | Indoor |
|---|---|---|---|
| Brightness: | 1200cd/m2 | Feature: | Magnet Adsorption |
| Contrast: | 4000:1 | Repetition Frequency: | 50/60 Hz |
| High Light: | video wall led display,led video panel rental |
||
Product Description
High Resolution Indoor Rental LED Screen Front And Rear Maintenance
Specifications:
|
Model |
C391S |
|
Pixel pitch |
3.91 mm |
|
Configuration |
SMD2121 black |
|
Module dimension |
(W)250mm x(H) 500mm |
|
Module weight |
1.31 kg |
|
Panel dimension |
(W)500mmx(H)1000mmx(D)70mm |
|
Panel weight |
13.5 kg |
|
Pixel density |
65536 dots/㎡ |
|
Flatness error |
≤0.1 mm |
|
Viewing angle |
160°/140°(Horizontal/Vertical) |
|
Brightness |
>1200 cd/㎡ |
|
Color temperature |
12400 K |
|
Contrast |
4000:1 |
|
Repetition frequency |
50/60 Hz |
|
Refresh frequency |
1200 Hz |
|
Gray scale |
14 bit |
|
Ave. power |
100 W/㎡ |
|
Max power |
260 W/㎡ |
|
Working temp./humidity |
-10~40℃ / 10%~90%R |
|
Storing temp./humidity |
-40~60℃ / 10%~90%R |
|
Panel structure |
Die-casting aluminum alloy |
|
Maintenance |
Front and Rear |
|
Protection |
IP40 |
|
Driving mode |
Constant current driver |
|
Scanning |
1/16 |
|
Power requirements |
AC220V±10%, 47~63Hz |
|
Life time |
100,000 hrs |
|
Certificate |
CCC/TUV-CE/ETL, etc. |

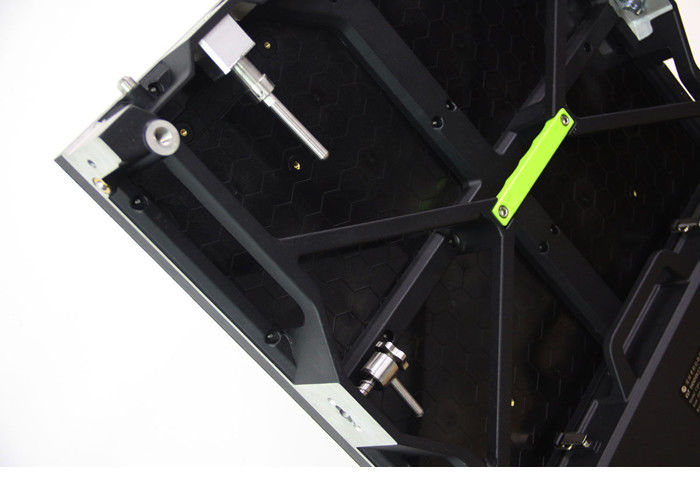

Description:
1. Light weight cabinet.
2. 4 fast locks with adjustment function for the seamless between panels.
3. Front & rear maintenance while display is running-no tools needed.
4. The outer lines can be through the side of the panels, tidier.
5. LED module connects to frame through magnet adsorption.
6. Large viewing angle: 160°/140°(horizontal/vertical).
7. Modules can be added to frame in any order.
8. Die-casting aluminum.
9. Panel weight: 13.5kg.
Our Company:
The Advantages of Shenzhen CLT LED Technology CO.,LTD.
1). Price: we have the best competitive High Cost-effective of Price/ features.
2), Automatic : From selecting LED chip , led encapsulation, PCB soldering, LED module,
are operated by Automatic machine, improve showing effect of led screen .
3). Quality: From material to product finished, from design to produce, all steps are controlled
by our workshop, that's the guarantee of the reliability.
4), Payment :accept : T/T , L/C , D/P, D/A ,MoneyGram, werstern union, and Cash .
Applications:
Product presentations, Live shows, rental events, TV studios, exhibitions.
