Full Color Indoor P4 Stadium LED Display SAGEOPTO Delivery 1R1G1B Basketball LED Display
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | GBLED |
| Certification: | CE,ROHS |
| Model Number: | S4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case or flight case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union |
| Supply Ability: | 1000 sqm/per month |
|
Detail Information |
|||
| Pixel Pitch: | 4mm | Pixel Package: | 2121/2020 |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B | Module Size: | 256x128mm |
| Cabinet Size: | W1024xH1024xD150mm | Cabinet Material: | Iron Or Aluminum |
| Driving Mode: | 1/16 | Refresh Rate: | 1440~3840Hz |
| Frame Frequency: | 60Hz | Product Name: | Full Color Indoor P4 Stadium LED Display |
| High Light: | stadium led screens,stadium display screen |
||
Product Description
Fast Shipping Full Color Indoor P4 Stadium LED Display SAGEOPTO Delivery 1R1G1B Basketball LED Display
Full Color Indoor P4 Stadium LED Display Features:
1. Top Cabinet Special Design for Collision Avoidance.
2. Adjustable Soleplate Design, Cabinet Freely Regulated Angle 55°to 90°.
3. Back door and Cabinet Façade parallel, Simple and Practical.
4. Stowable Regulating Bracket, Saving Storage Space.
5. Separation of Inside Power Supplier and Control System Ensures Easy Maintenance.
6. Safe, Convenient and Quick.
7. Power Supplier and Signal Plug Connectors, International Standard.
Full Color Indoor P4 Stadium LED Display Description:
1. High Brightness
More than 1500nits and it can be sawn from long distance.
2. Soft Mask
Soft mask design delivers good protection to the players and also decreases damage to LEDs.
3. Adjustable Support and Quick Rigging System
Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick rigging system design makes the installation and dismantle easier and faster.
4. Cost Effective LED Display
Energy saving design, help you saving cost.
5. Waterproof and 2 Year Warranty
Water Proof IP43 and 2 year warranty. LED display can work in all-weather condition very well.

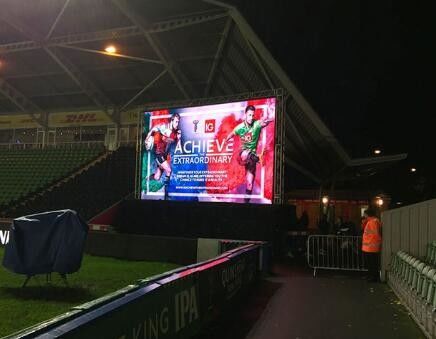

Full Color Indoor P4 Stadium LED Display Applications:
Any indoor sport tadium, such as volleyball, baseball, basketball etc.
Full Color Indoor P4 Stadium LED Display Specifications:
| Product Series | S4 |
| Pixel Pitch | 4mm |
| Pixel Package | SMD2121 |
| LED Configuration | 1R1G1B |
| Pixel Density | 62,500 Pixels/㎡ |
| Module Size | 128mm x 128mm |
| Module Resolution | 32 x 32 dots |
| Suggested Cabinet Size | 640mm x 512mm x 135mm |
| Cabinet Resolution | 160 x 128 dots |
| Cabinet Material | Iron / Aluminum |
| Brightness | ≥ 1200 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Refresh Rate | 960-2880Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 10 bits/ 1024 levels |
| Number of Color | ＞1 billion |
| Maximum Power Consumption | 1000 W/㎡ |
| Average Power Consumption | 400 W/㎡ |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP40/IP43 |
Why Choose SAGE?
1. 14 years experienced led display manufacturer since 2002.
2. Multi International Sports Events perimeter display designated supplier, TBF, CBA, WCBA, CUBA, Chinese Football Super League etc.
3. All imports of machinery, strict production process and reliable after-sale services.
4. Using 3A quality accessories and raw materials, free maintenance during warranty period.
5. Leading technologies in display industry, experienced technique team, own multi patent designs.
6. Two years warranty and free online technical support.
7. Good quality products with CE,ETL,ROHS,ISO certified.
Quality Control:
Aging:
1. 100% fully test,
2. Condition: 72 hours with 256 grey level.
Vibration Testing:
Condition: 3-5 mins up and down in 5mm range.
Testing before packing, imitate the transportation environment, ensure there is no false soldering and blind dot. And all cables are well connected.
