Product Details:

Place of Origin: China
Brand Name: GBLED
Certification: CE FCC ROHS UL
Model Number: GRT-3.91

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case
Delivery Time: 15 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5,000pcs per month
Get Best Price Contact Now

Detail Information

Pixel Pitch: 3.9mm Brightness: 1000 Nits
Materials: Die-casting Aluminum Panel Size: 500 X 1000mm
Connector: Fast Aviation Connector For Power And Data Installation: Hanging And Floor Stand
Lock System: Fast Lock System
High Light:

transparent glass display

,

transparent glass led display

Product Description

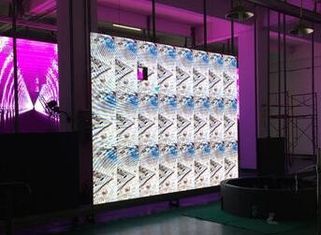

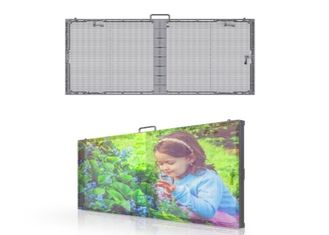

Indoor P3.9 Slim Transparent Glass LED Screen / Transparent LED Video Wall For Stage​


Description:

1. High transparency up to 85%.
2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
3. Ultra slim with 7mm thickness.
4. Light with only 7kg/panel.
5. Double projection with acrylic in front and rear.
6. Die-casting aluminum with high precision.
7. Fast lock system design and fast aviation connector for power and data.
8. 2 years warranty, easy to install & maintenance.
9. CE, ROHS, FCC.


Products Advantages:
1) Price Advantage: we have the best competitive price in the market, also better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle,
3) Quality advantage: From material to finished product, from design to produce, we control all steps. That's the guarantee of the quality and reliability.
4) Service advantage: Better service in the same situation, better cooperation in the same service!

Specifications:



TRANSPARENT LED DISPLAY SERIES PARAMETER
Standard Brightness/High Brightness
TypeG3.91-5G3.91-7.81G7.81-7.81G7.81-15.62G710.4-10.4
Pixel Pitch

3.91mm(H)
5mm(V)

3.91mm(H)
7.81mm(V)

7.81mm(H)
7.81mm(V)

7.81mm(H)
15.62mm(V)

10.4mm(H)
10.4mm(V)


Pixel Density(pixel/sqm)51,20032,76816,3848,1929,216
Panel Weight15kgs15kgs15kgs15kgs15kgs
Protection Level(front/back)IP43IP43IP43IP43IP43
Panel Power Consumption(max./ave.)400/150400/150400/150400/150400/150
Viewing Angle(h×v)120°/120°120°/120°120°/120°120°/120°120°/120°

Brightness
(adjustable)

1200nits/
5000nits

1200nits/
5000nits

1200nits/5000nits1200nits/5000nits1200nits/5000nits
LED Type SMD 3-in-1
Panel Size 1000mm x 1000mm /500mm x 1000mm
Maintenance Method from
Panel Material Aluminum+ Aacrylic
Brightness/Color Calibration Yes
Refresh Rate ≥1920Hz
Grey Level(adjustable) 12-16bit
Color Temperature(adjustable) 6500K
Operating Voltage AC220V(50~60Hz)
Contrast Ratio 2000:1
Working Humidity(rh) 10 ~ 80%
Working Temperature -20℃~50℃
Life Time(hrs) ≥100,000
Color Uniformity ±0.0035 Cx,Cy
Luminance Uniformity ≥97.5%
Certification ETL.CE-TUV. RoHS.FCC.CCC

Version:V1.0



Good service After-sale
1. Two years warranty for the whole system except human factor and force majeure
2. One year quality warranty, lifetime maintenance, and guarantee the maintenance time in contract.
3. During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge.
4. As to the product quality problems caused by design, manufacture, installation technology, material, the replacement and maintenance are free. The system damage caused by force majeure(flood, fire, earthquake, war and so on) as well as users) man-made disturbance(construction, cleaning ) should be coordinate by both sides to solve.
5. Life-long maintenance for the system: after the guarantee, we only charge the cost of hardware
