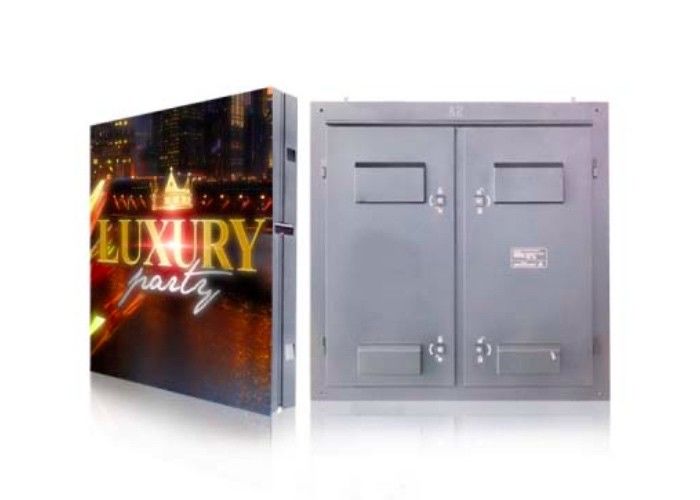

P10 SMD Outdoor SMD LED Screen / Full Color Advertising LED Display For Shopping Mall
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GBLED |
| Certification: | CE FCC ROHS UL |
| Model Number: | GRO-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | Brightness: | 5000 Nits |
|---|---|---|---|
| Panel Size: | 960mm X 960mm | Waterproof: | Yes |
| Certification: | CE FCC ROHS UL | Origin: | China |
| High Light: | outdoor led display panels,outdoor led billboard |
||
Product Description
Outdoor P10 SMD Full Color Advertising LED Display for shopping mall
Description:
1.Standard panel size 960mm x 960mm
2.Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
3.High brightness with 5000 nits.
4.Good heat dissipation
5.High refresh rate.
6.2 years warranty, easy to install & maintenance.
7.CE, ROHS, FCC.
8.IP65: water-proof.
Specifications:
| Outdoor Advertising LED Display | ||||||
| Type | P4(SMD) | P5(SMD) | P6(SMD) | P8(SMD) | P10(SMD) | |
| Module | Pixel Configuration | 1921 | 2727 | 2727 | 2727 | 3535 |
| Pixel Pitch (mm) | 4 | 5 | 6 | 8 | 10 | |
| Module Size (W*H) | 256*128 | 160*160 | 192*192 | 256*128 | 320*160 | |
| Module Resolution (W*H) | 64*32 | 32*32 | 32*32 | 32*16 | 32*16 | |
| Panel | Panel Size (W*H) | 768*768 | 960*960 | 960*960 | 1024*768 | 960*960 |
| Panel Resolution (W*H) | 160*160 | 160*160 | 160*160 | 128*96 | 96*96 | |
| Weight (square meter) | 45 | 45 | 45 | 45 | 45 | |
| Maintenance Method | Rear | |||||
| Pixel Denity (Dots/㎡) | 62500 | 40000 | 27777 | 15625 | 10000 | |
| Brightness (cd/㎡) | 5500 | 5500 | 5500 | 5500 | 5500 | |
| Refresh Rate (Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |
| Grey Level (Bit) | 12～16Adjustable | |||||
| Color Temperature (K) | 6500 Adjustable | |||||
| Horizontal/Vertical Viewing Angle (°) | 140/140 | |||||
| Max./Ave.Power Consumption (square meter) | 600/180 | 600/180 | 600/180 | 600/180 | 600/180 | |
| Operating Voltage | AC90~240V(50~60Hz) | |||||
| Contrast Ratio | 1/3000 | |||||
| Application | Working Temperature (℃) | -25~65 | ||||
| Working Humidity (RH) | 10~ 85% No Condensation | |||||
| Working Life Span (hrs) | ≥100,000 | |||||
| Certificate | CCC.ETL/UL.CE-TUV.FCC.ROHS | |||||
| Version:V1.0 | ||||||
Good service After-sale
1. Two years warranty for the whole system except human factor and force majeure
2. One year quality warranty, lifetime maintenance, and guarantee the maintenance time in contract.
3. During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge.
4. As to the product quality problems caused by design, manufacture, installation technology, material, the replacement and maintenance are free. The system damage caused by force majeure(flood, fire, earthquake, war and so on) as well as users) man-made disturbance(construction, cleaning ) should be coordinate by both sides to solve.
5. Life-long maintenance for the system: after the guarantee, we only charge the cost of hardware
