7.8MM P7.81 Transparent LED Display Screen For Glass Shop , Light Weight Cabinet Design
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE FCC ROHS UL |
| Model Number: | GRT-7.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | flight case/ wooden box |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Pixel Pitch: | 7.8mm | Brightness: | 5000 Nits |
|---|---|---|---|
| Panel Size: | 1000mm X 1000mm | Panel Weight: | 16kg |
| Certification: | CE FCC ROHS UL | Model: | GRT-7.8 |
| High Light: | clear glass display screen,transparent glass led display |
||
Product Description

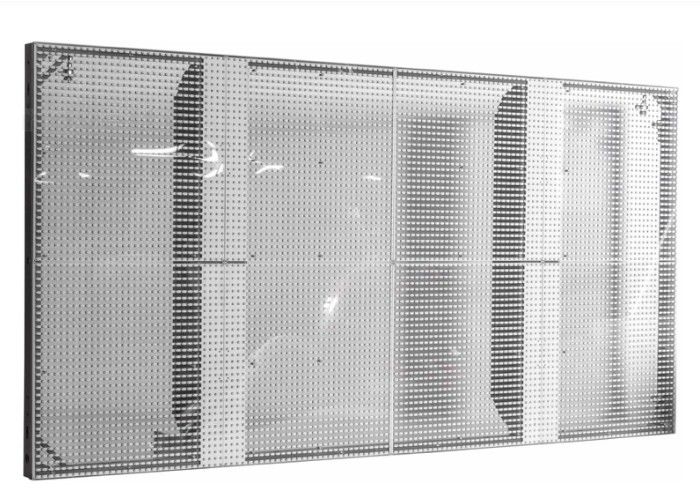

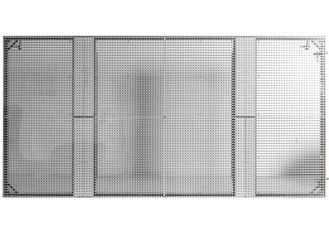

Outdoor P7.81 Transparent Glass LED Display for glass shop , light weight cabinet design
Description:
1. Light with only 7kg/panel.
2. Double projection with acrylic in front and rear.
3. Fast lock system design and fast aviation connector for power and data.
4. 2 years warranty, easy to install & maintenance.
5. CE, ROHS, FCC.

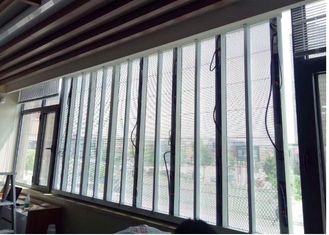

Outdoor p7.81 Transparent Glass LED Display is good for glass shop, compared with traditional led display transparent led display will not close the lights of the window.
Specifications:
| TRANSPARENT LED DISPLAY SERIES PARAMETER | ||||||
| Standard Brightness/High Brightness | ||||||
| Type | G3.91-5 | G3.91-7.81 | G7.81-7.81 | G7.81-15.62 | G710.4-10.4 | |
| Pixel Pitch |
3.91mm(H) 5mm(V) |
3.91mm(H) 7.81mm(V) |
7.81mm(H) 7.81mm(V) |
7.81mm(H) 15.62mm(V) |
10.4mm(H) 10.4mm(V) |
|
| Pixel Density(pixel/sqm) | 51,200 | 32,768 | 16,384 | 8,192 | 9,216 | |
| Panel Weight | 15kgs | 15kgs | 15kgs | 15kgs | 15kgs | |
| Protection Level(front/back) | IP43 | IP43 | IP43 | IP43 | IP43 | |
| Panel Power Consumption(max./ave.) | 400/150 | 400/150 | 400/150 | 400/150 | 400/150 | |
| Viewing Angle(h×v) | 120°/120° | 120°/120° | 120°/120° | 120°/120° | 120°/120° | |
| Brightness(adjustable) | 1200nits/5000nits | 1200nits/5000nits | 1200nits/5000nits | 1200nits/5000nits | 1200nits/5000nits | |
| LED Type | SMD 3-in-1 | |||||
| Panel Size | 1000mm x 1000mm /500mm x 1000mm | |||||
| Maintenance Method | from | |||||
| Panel Material | Aluminum+ Aacrylic | |||||
| Brightness/Color Calibration | Yes | |||||
| Refresh Rate | ≥1920Hz | |||||
| Grey Level(adjustable) | 12-16bit | |||||
| Color Temperature(adjustable) | 6500K | |||||
| Operating Voltage | AC220V(50~60Hz) | |||||
| Contrast Ratio | 2000:1 | |||||
| Working Humidity(rh) | 10 ~ 80% | |||||
| Working Temperature | -20℃~50℃ | |||||
| Life Time(hrs) | ≥100,000 | |||||
| Color Uniformity | ±0.0035 Cx,Cy | |||||
| Luminance Uniformity | ≥97.5% | |||||
| Certification | ETL.CE-TUV. RoHS.FCC.CCC | |||||
| Version:V1.0 | ||||||
Good service After-sale
1. Two years warranty for the whole system except human factor and force majeure
2. One year quality warranty, lifetime maintenance, and guarantee the maintenance time in contract.
3. During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge.
4. As to the product quality problems caused by design, manufacture, installation technology, material, the replacement and maintenance are free. The system damage caused by force majeure(flood, fire, earthquake, war and so on) as well as users) man-made disturbance(construction, cleaning ) should be coordinate by both sides to solve.
5. Life-long maintenance for the system: after the guarantee, we only charge the cost of hardware
