Sunlight Pitch 4.8mm Outdoor Rental LED Display , Full Color Outdoor Led Display Board
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE, FCC, ROHS |
| Model Number: | N4.8-O |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight Case |
| Delivery Time: | 10~20 Working Days |
| Payment Terms: | T/T, Western Union, Paypal, L/C |
| Supply Ability: | 10000SQ.M/Month |
|
Detail Information |
|||
| Pixel Pitch: | 4.8mm | Pixel Density: | 43402 Dots/sq.m |
|---|---|---|---|
| LED Type: | SMD2727 | Module Size: | 192*192mm |
| Cabinet Size: | 576*576mm | Cabinet Material: | Die-cast Aluminum |
| Drive Mode: | 1/10 Scan | Protection Level: | IP65 |
| High Light: | outdoor led screen rental,outdoor led display rental |
||
Product Description
Sunlight Readable Pitch 4.8mm Full Color Outdoor Rental LED Board SMD 2727 P4.8
Product Quick Details:
- Pixel pitch: 4.8mm
- Protection level: IP65
- Slim and light weight
Product Features:
- Handlers design, cabinet has handlers on top and sides, more convenient to assemble and do maintenance.
- Smart, using die-cast aluminum mold forming, cabinet dimensional is controlled within 0.1mm
- Slim, each cabinet thickness is 8cm, with fashion die-cast aluminum frame design
- Light, each cabinet only 10kg, more convenient installation and cheaper shipping cost.
General Information:
| Model No. | N4.8-O | Description | Outdoor Rental LED Display | |||
| Pitch | 4.8MM | Pixel Density | 43402 pixels/sq.m | |||
| Pixel Configuration | 1R1G1B | Pixel Type | SMD2727 | |||
LED Information:
| Color | Wave Length | Brightness |
| Red | 622nm | 470mcd |
| Green | 525nm | 750mcd |
| Blue | 470nm | 120mcd |
Product Parameter:
| ITEM | SPECIFICATION |
| Module Size | 192*192mm |
| Module Resolution | 40*40 |
| Module Component | W:2*H:2pcs=4pcs |
| Cabinet Size | 576*576*80mm |
| Cabinet Resolution | 80*80 |
| Cabinet Material | Die-casting aluminum |
| Drive Mode | 1/10 scan, constant current |
| IC | MBI5124 |
| Brightness | 5500CD/SQ.M(adjustable) |
| Refresh Rate | 1920Hz |
| Frame Frequency | 50&60Hz |
| Grey Scale Level | 65536(adjustable) |
| Color Temperature | 3200~9300K(adjustable) |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 150°(Horizontal),120°(Vertical) |
| Best Viewing Distance | 4~100m |
| Life-Span | 100,000 hours |
| Protection Level | IP65 |
| Power Consumption (Max) | 700W/M2 |
| Power Consumption (Avg) | 300W/M2 |
| Control System | Synchronous/Asynchronous Control System |
Warranty:
2 years quality guaranteed, necessary design drawing and user manual step by step will be offered to you.

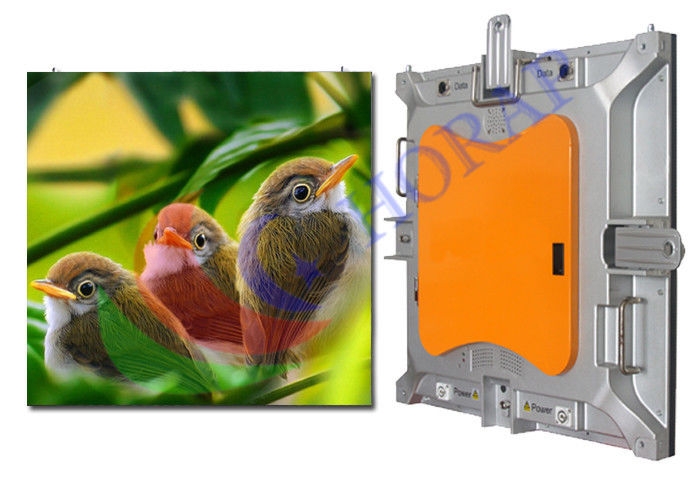

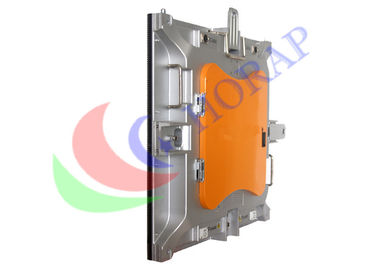

Product Pictures:
Application:
Widely used in stage, concert, live on TV, wedding, conference, ceremony gala, exhibition presentation, commercial advertising and other outdoor rental events.
Packing List:
- Flight case, 9pcs cabinets/case,
- User manual x1pcs
- Load file x1pcs
- Cables
- Modules
- LEDs
- Control Cards and other necessary spare parts.
