Full Seamless Ph 1.92mm Led Video Panels , High Resolution Large Led Display
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE, FCC, ROHS |
| Model Number: | S1.92-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10~20 Working Days |
| Payment Terms: | T/T, Western Union, Paypal, L/C |
| Supply Ability: | 10000SQ.M/Month |
|
Detail Information |
|||
| Pixel Pitch: | 1.92mm | Pixel Type: | SMD 1010, Black |
|---|---|---|---|
| Module Size: | 200*300mm | Cabinet Size: | 400*300*66mm |
| Cabinet Weight: | 4.6kg/pc | Refresh Rate: | 3840Hz |
| Color Depth: | 16 Bit | Contrast Ratio: | 4000:1 |
| High Light: | hd led wall,hd led video wall |
||
Product Description
Full Seamless Ph 1.92mm HD LED Display Wall Hire Events 16 bit Color Depth
Product Features:
- High refresh rate 3840HZ, MBI 5153 is used, and 160°super wide horizontal and vertical viewing angle covers more potential customers. The broadcasting pictures are stable with no scanning line, and the edge of image is sharp and clear when dealing with dynamic pictures. Could meet high-end demands of clients, such as video on live.
- Support single pixel color brightness calibration and single color brightness cablibration, ensures adjust to high color uniformity and high brightness uniformity of each screen even on site.
- Ultra high resolution: 270400 dots per square meters, super clear, gives you big visual enjoyment even with small size.
- Ultra thin and light, each cabinet only have 4.6kg, thickness 66cm with beautiful design, very convenient for transporting and intallation, save much shipping cost, labor cost and time.
- Die-cast aluminum with module shaping one time, has high flatness, easy to realize seamless splicing.
- Metal structure has excellent natural heat dissipation, realize completely mute working and no fan deign.
- High quality SMD 1010 with low failure is used, it has a great performance in stability, lowest light mulfunction, great color consistence as well as heat dissipation.
- HD led display is self-luminous, high grey scale under low brightness is used, guarantee pefect video effect, clear and rich in details without any loss, also give you big visual comfort under low brightness 300~800CD adjustable.
- 16 bit color processing level and 65536 grey scale level, makes pictures richer and more vivid.
- High contrast ratio 4000:1, The high quality full black leds together with black mask achieves higher color consistency and higher brightness uniformity in all directions, get clear and crystal pictures.
Product Parameter:
| Model No. | S1.92-I |
| Pixel Pitch | 1.92mm |
| Pixel Density | 270400(dot/m²) |
| Module Size | 200mmx300mm |
| Module Resolution | 104x156 |
| Cabinet Size | 400mmx300x66mm |
| Cabinet Resolution | 208x156(dot) |
| Module Component | W:2*H:1pcs=2pcs |
| LED Type | SMD1010 Black |
| Drive IC | MBI5153 |
| Brightness | 800CD/m² |
| Refresh Rate | 3840Hz |
| Frame Frequency | 50&60Hz |
| Drive Mode | 1/30 scan, constant current |
| Best Viewing Angle | 1-50m |
| Viewing Angle | 160°(Horizontal)/160°(Vertical) |
| Video playback capabilities |
2KHD,4KHD |
| Pixel Configuration | 1R1G1B |
|
|
Max: 800W/m² |
| Avg: 250W/m² | |
| Control System | Synchronous/Asynchronous |

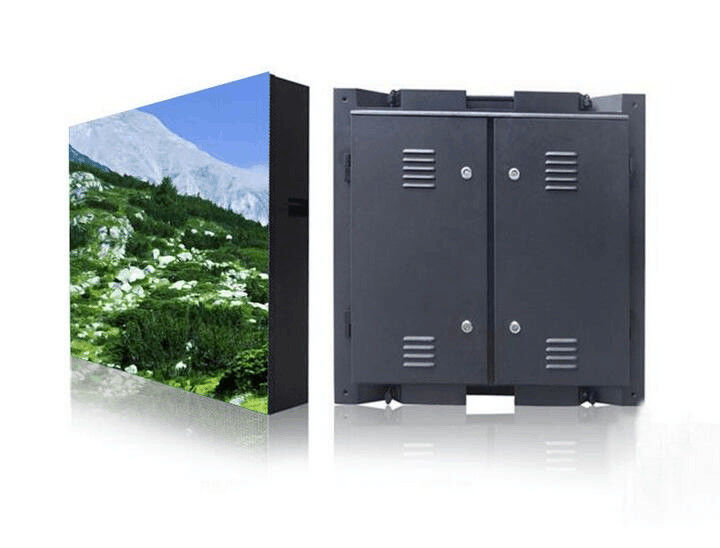

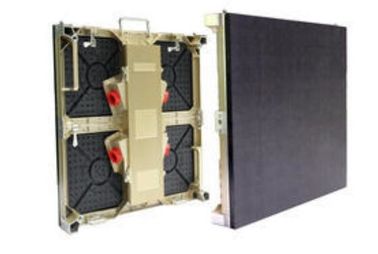

Product Pictures:
Application:
Widely used in stage, concert, TV studio, wedding, conference, ceremony gala, exhibition presentation, commercial advertising and other indoor rental events.
