FHD LED Sign Display High Grey Scale Under Low Brightness High Contrast Ratio
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE, FCC, ROHS |
| Model Number: | V2.5-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10~20 Working Days |
| Payment Terms: | T/T, Western Union, Paypal, L/C |
| Supply Ability: | 10000SQ.M/Month |
|
Detail Information |
|||
| Contrast Ratio: | 5000:1 | Brightness: | 800 Nits |
|---|---|---|---|
| Refresh Rate: | 3840 Hz | Grey Level: | 65536 |
| Work Power: | 250W/sq.m | Voltage: | AC90~264V |
| High Light: | hd led wall,hd led video wall |
||
Product Description
FHD LED Sign Display High Grey Scale Under Low Brightness High Contrast Ratio
Advantage:
- Support for Front Installation and Maintenance Module, power supply, receiving card, conversion card, and cables between panels could all be maintained from the front. Additionally, the specially-designed panel could be installed from front as well, which makes it more adaptive to the condition with limited space.
Product Parameter:
|
Pixel Configuration |
SMD1010 |
|
Pixel pitch(mm) |
2.5 |
|
Pixel density(dots/m2) |
160000 |
|
Module resolution(W×H) |
80×135 |
|
Module size (mm) |
200(W)×168.75(H) |
|
Maximum power consumption of the module(W) |
40 |
|
Module of cabinet (W×H) |
3×2 |
|
Cabinet resolution(W×H) |
240×135 |
|
Cabinet size (mm) |
600(W)×337.5(H)×80(D) |
|
Cabinet weight (kg) |
7.8 |
|
Cabinet level up degree(mm |
≤0.2 |
|
Maintenance mode |
Front |
|
Cabinet raw material |
Die-casting aluminum |
|
White Balance Brightness (nits) |
≥800(6500K) |
|
Viewing Angle (Horizontal / Vertical) |
160/160 |
|
Contrast |
5000:1 |
|
Drive mode |
Constant drive,1/30 scan |
|
Refresh rate (Hz) |
≥3840 |

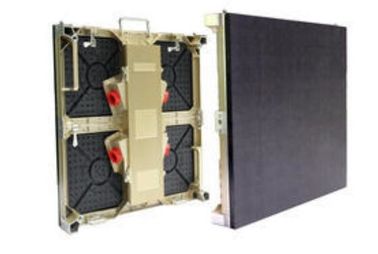

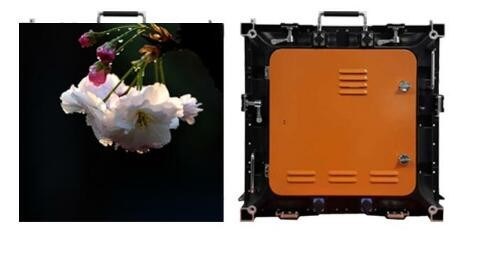

Product Pictures:
