P4.8 High Flatness Transparent LED Curtain Display SMD RGB With Iron Steel Cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE, FCC, ROHS |
| Model Number: | A4.8-O |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10~20 Working Days |
| Payment Terms: | T/T, Western Union, Paypal, L/C |
| Supply Ability: | 10000SQ.M/Month |
|
Detail Information |
|||
| Pixel Pitch: | 4.8mm | Pixel Density: | 43402 Dots/sq.m |
|---|---|---|---|
| Pixel Type: | SMD 2727 | Module Size: | 192x192mm |
| Module Resolution: | 40*40 Pixels | Cabinet Material: | Iron Steel |
| Protection Level: | IP65 | Brightness: | 5500CD |
| High Light: | led transparent screen,clear led screen |
||
Product Description
P4.8 High Flatness Transparent LED Curtain Display SMD RGB With Iron Steel Cabinet
Product Features:
- High resolution and definition guarantee superior performance even with small screen size.
- High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
- Aviation plug and quick lock is used, bringing easier cables connection and quicker assembly of cabinets to save time.
- Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans’ speed monitoring, three-way voltage monitoring and temperature monitoring etc.
- Low power consumption and fast heat dissipation with dual channel heat dissipation
- Widely used in outdoor advertising, toll gate, supermarket, shopping mall, sport game etc.
- High brightness ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
- Protection level is IP65, is full waterproof, dustproof, anti-corrosion and anti-ultraviolet, enable themselves to work in all weather conditions to guarantee durability, reliability and steady.
- SMD2727 enable higher flatness and larger viewing angle, could visible in most corners.
- Super wide viewing angle and have best view in different position, give you visual enjoyment.
Product Parameter:
| ITEM | SPECIFICATION |
| Pixel Pitch | 4.8mm |
| Pixel Density | 43402 |
| Pixel Configuration | 1R1G1B |
| Pixel Type | SMD2727 |
| Module Size | 192*192mm |
| Module Resolution | 40*40 |
| Drive Mode | 1/10 scan, constant current |
| IC | SM16106SC |
| Brightness | 5500CD/SQ.M(adjustable) |
| Refresh Rate | 1200Hz |
| Frame Frequency | 50&60Hz |
| Grey Scale Level | 65536(adjustable) |
| Color Temperature | 3200~9300K(adjustable) |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 150°(Horizontal),120°(Vertical) |
| Best Viewing Distance | 5~50m |
| Life-Span | 100,000 hours |
| Protection Level | IP65 |
| Power Consumption (Max) | 800W/M2 |
| Power Consumption (Avg) | 300W/M2 |

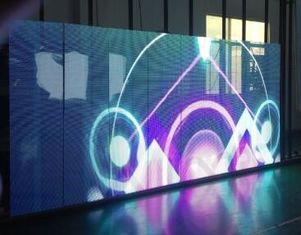

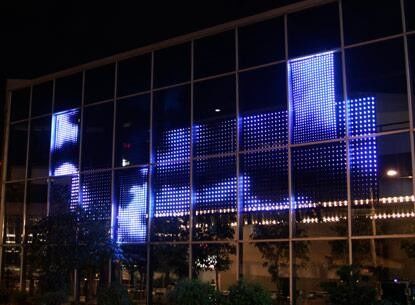

Product Pictures:
Warranty:
2 years quality guaranteed, necessary design drawing and user manual step by step will be offered to you.
Pre-sales service :
Our team design and make solutions based on different requirements from different customers, what you think is what we can do.
After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We provide one professional engineer to one customer to keep fastly reply.
Installation Service:
1. We provide detailed CAD drawing to customer for preparing metal structure.
2. We could dispatch our engineer to your place , guide installation and free training.
3. Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements
