High Brightness 6MM Outdoor Transparent LED Display Full Color For Airports
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE, FCC, ROHS |
| Model Number: | A6-O |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10~20 Working Days |
| Payment Terms: | T/T, Western Union, Paypal, L/C |
| Supply Ability: | 10000SQ.M/Month |
|
Detail Information |
|||
| Pixel Pitch: | 6mm | Pixel Density: | 27777 Dots/sq.m |
|---|---|---|---|
| Pixel Type: | SMD 2727 | Module Size: | 192x192mm |
| Module Resolution: | 32*32 Pixels | Cabinet Material: | Iron Steel |
| Protection Level: | IP65 | Brightness: | 5000CD |
| High Light: | transparent led display screen,clear led screen |
||
Product Description
High Brightness 6MM Outdoor Transparent LED Display Full Color For Airports
Product Features:
- SMD2727 technology could guarantee higher flatness and better performance.
- High resolution could guarantee superior performance even with small screen size.
- High brightness ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
- Protection level is IP65, is full waterproof, dustproof, anti-corrosion and anti-ultraviolet, enable themselves to work in all weather conditions to guarantee durability, reliability and steady.
- High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
- Super wide viewing angle and have best view in different position, give you visual enjoyment.
- Aviation plug and quick lock is used, bringing easier cables connection and quicker assembly of cabinets to save time.
- Dual channel heat dissipation brings energy saving and environment friendly
- Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans’ speed monitoring, three-way voltage monitoring and temperature monitoring etc.
- Widely used in outdoor advertising, toll gate, supermarket, shopping mall, sport game etc.
Packing List:
- Wooden case, 4pcs cabinets/case,
- User manual *1pcs
- Load file *1pcs
- Cables
- Modules
Product Parameter:
| ITEM | SPECIFICATION |
| Pixel Pitch | 6mm |
| Pixel Density | 27777 |
| Pixel Configuration | 1R1G1B |
| Pixel Type | SMD2727 |
| Module Size | 192*192mm |
| Module Resolution | 32*32 |
| Drive Mode | 1/8 scan, constant current |
| IC | SM16106SC |
| Brightness | 6000CD/SQ.M(adjustable) |
| Refresh Rate | 1200Hz |
| Frame Frequency | 50&60Hz |
| Grey Scale Level | 65536(adjustable) |
| Color Temperature | 3200~9300K(adjustable) |
| Contrast Ratio | 4000:1 |
| Brightness/Color Uniformity | ≥97% |
| Viewing Angle | 150°(Horizontal),120°(Vertical) |
| Best Viewing Distance | 6~50m |
| Protection Level | IP65 |
| Power Consumption (Max) | 800W/M2 |
| Power Consumption (Avg) | 300W/M2 |

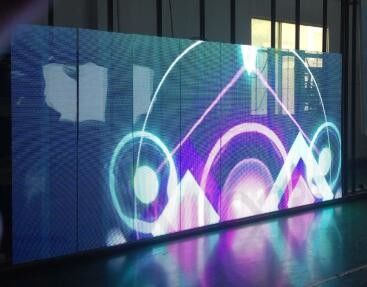

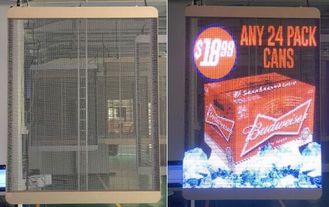

Product Pictures:
Warranty:
2 years quality guaranteed, necessary design drawing and user manual step by step will be offered to you.
After-sales services:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We provide one professional engineer to one customer to keep fastly reply.
Installation Service:
1. We provide detailed CAD drawing to customer for preparing metal structure.
2. We could dispatch our engineer to your place , guide installation and free training.
3. Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements
Our company
Our product quality management is strictly adhering to the ISO9001: 2008 certifications system and 7S management standard, to seek for greater perfection, which exerts profound influence on standardization of LED industry.GBLED is a national new high-tech enterprise,which owns number of national patents and has been cited as "Shenzhen Flat Panel Display Industry Association", "Member of Shenzhen SME Development Association", "Member of Semi-conductor and Lighting Promotion Association", "Member of Shenzhen Electronic Chamber of Commerce", "Member of China Optics and Optoelectronics Industry Association and LED Display Applications Branch Association", "Certified Supplier of Made-in-China" etc.
