Full Color P3.91 LED Stage Curtain Screen For Stage Concert Wedding Meeting
Product Details:
Place of Origin: | Shenzhen China |
Brand Name: | GBLED |
Certification: | 3C/GMC/ISO9001/CCPC |
Model Number: | P3.91 |
Payment & Shipping Terms:
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case / Flight Case |
Delivery Time: | 7-15 Working Days |
Payment Terms: | T/T, L/C |
Supply Ability: | >300sqm/month |
Detail Information |
|||
Product Name: | LED Display | Application: | Indoor |
---|---|---|---|
Size Of Panel: | 250x250 | Resolution: | 128x128 |
Brightness: | 1200cm/d | Feature: | Refresh Rate≥800. Red,Green And Blud LED Chips Incorporated Encapsulation,Better Perspective . More Faster To Assemble Or Disassemble It Without Any Tool |
Standard: | 3C/GMC/ISO9001/CCPC | Type: | Rental |
High Light: | led stage curtain screen,led stage display screen |
Product Description
Full Color P3.91 Led Display Board For Stage Concert Wedding Meeting
Description
Higher cost performance. Lower maintenance cost . Combined with the control system which has more than 14bit processing ,effecting a higher gray level. Red,green and blue LED chips incorporated encapsulation ,better perspective. Strong adaption to environment. More faster to assemble or disassemble it without any tool.
specifications
1.Indoor led Display technical parameter
Pixel Density(pixel/㎡) | 65356 |
White Balance Brightness (cd/㎡) | ≥1200(adjustable) |
Max Power Consumption | 200W/cabinet |
Average Power Consumption | 100W/cabinet |
Color Temperature | 3200-9300(adjustable) |
View Angle | Horizontal 110°;Vertical 110° |
Best Viewing Distance(m) | 4m—100m |
Display Work Method | 1/16 scan |
Digital Processing | 14 bit |
Gray Scale | 65536 levels per color |
Refresh Frequency (Hz) | ≥800 |
Input Signal | Video: PAL/NTSC Option: VGA , Video , DVD,TV, |
Waterproof | No |
Working Temperature(ºC) | -20~+45 |
Humidity(RH) | 10% - 80% |
Stored Temperature (ºC) | -30~+60 |
Lifetime (50%Brightness)(Hours) | ≥100,000 |
Input Voltage(VAC) | AC 220(or 110V) |
Input Power Frequency(Hertz) | 50 to 60 |
Data Connection | Super CAT6 Cable or Fiber |
Operating System | Windows(98/2000/XP/Vista) |
Blind Spot Rate | <0.00001 |
Control Distance | CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
Panel Input Format (With Video Processor) | VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
Earth Leakage Current(mA) | <2 |
Pixel Configuration | SMD2121 | Pixel Pitch | 3.91mm |
Module Resolution | 64x64 | Module Size(W*H) | 250mm x 250mm |
Weigth Per Module | 0.58kg | Max Power Consumption | 45w |

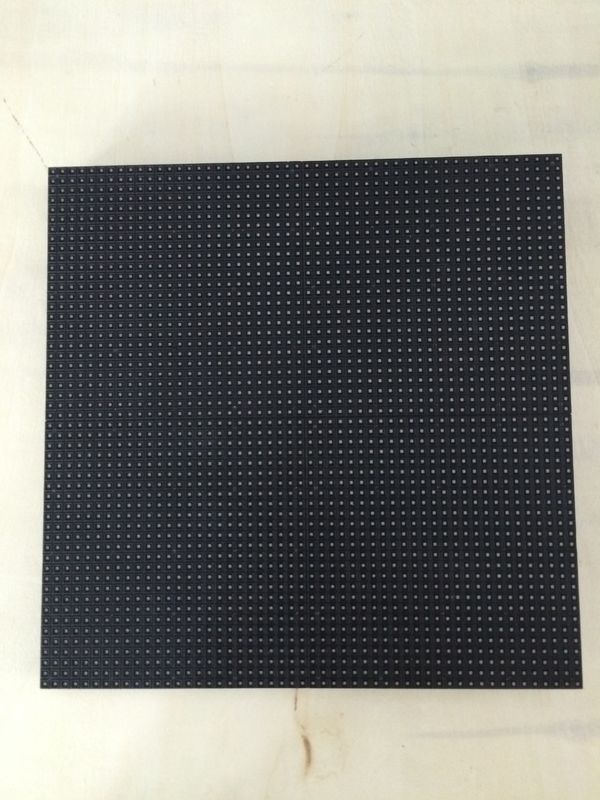

P3.91 led module 250*250mm black lamp
3. Indoor LED Display Cabinet
Cabinet Size(W*H) | 500mm × 500mm | Module Qty | 4 pcs |
Cabinet Resolution | 128 x 128 | Cabinet Area | 0.25㎡ |
Weight Of One Cabinet | 8.5 kg | Cabinet Pixel | 65536 |
Cabinet Flatness | <0.2/㎡ | Cabinet Material | Die Casting Cabinet |

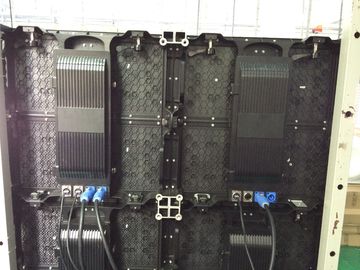

p3.91 500*500mm die-casting aluminum cabinet for rental( quick lock,thin and light,easy to install)

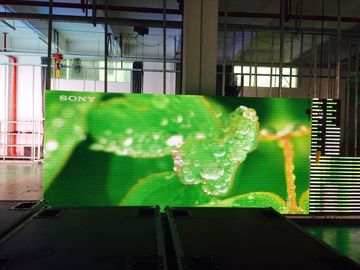

p3.91 led display aging test in workshop
Applications
This Indoor Full Color LED Display Are Very Popular In Commercial Advertising Field . such as Community, bus station, schools, telecommunications, customs, stadiums, studio,shopping malls, airports, etc;
competitive advantage
1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
