High Brightness LED Video Wall Rental  P36 RGB With 36MM Pixel Pitch

High Brightness LED Video Wall Rental P36 RGB With 36MM Pixel Pitch

Product Details:

Place of Origin: Shenzhen China
Brand Name: GBLED
Certification: 3C/GMC/ISO9001/CCPC
Model Number: P36.0mm

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case/ Flight Case
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: >500sqm/month
Get Best Price Contact Now

Detail Information

Product Name: P36.0mm LED Curtain Display Screen Pixel Pitch: 36mm
Size Of Panel: 480 X160 Brightness: 6000
Usage: Advertising Pixel Density: 6944
Weight: 46 KG For Each Cabinet
High Light:

led video screen rental


clear led display

Product Description

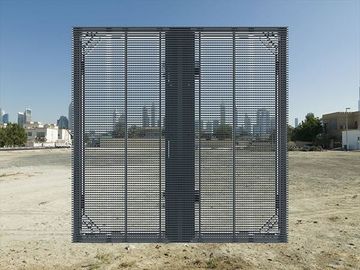

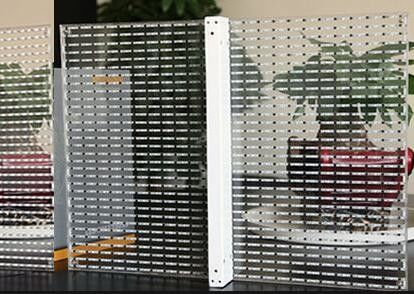

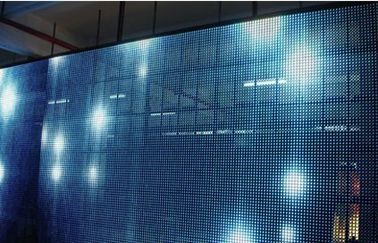

High Brightness LED Video Wall Rental P36 RGB With 36MM Pixel Pitch

Panel input format(with video processor), such as ,VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV  .  There are also interfaces for Sound signal and video signal.  The gray level si 65536 level, and the brightness, contrast,saturation, chroma can be adjusted by manual and sensor.  Show all sort of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously or asynchronously.   Can be used outdoor in all kinds of circumstance, and excellent capability of antisepsis, waterproof.  More faster to assemble or disassemble it without any tool.



The RGB LED Display Are Very Popular In Outdoor Field. This Type Screen
Are Popular Used Outdoor Shopping Center ,Outdoor Building,Foodball Field,crossroad,
highway,Concert,airport etc;

competitive advantage

1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.


1. Product Feature

Wide application field&short ROI time: commercial advertisement, Stadium perimeter, Mobile trailer LED video display screen for mobile media, shopping mall, bank & stock exchange, train & bus station, airport, telecommunication.

High Contrast: 4000:1

First-class LED chip: Supplied by Nichia of Japan & other high strictly selected LED chip Clear vivid image quality even in direct, full-on sunlight.

Long-term Brightness: 2500-nits brightness capacity throughout product lifetime.

Easy Installation & Using: easy & simple installation interface and user friendly software.

Convenient Servicing: Front and rear cabinet access make the maintenance work very convenient and low cost.


We have several models of OUTDOOR & INDOOR LED CURTAINS (for events, TV studios, clubs, decoration etc...)


Module Parameters
Physical Pitch: 36mm
Physical Density: 625pixels/M2
Pixel Type and Configuration: 1R1G1B
Drive Mode: Static.
Cabinet Parameters
Cabinet Size: 640X640X80mm
Cabinet Resolution: 16X16
Strip Quantity: 16PCS
Cabinet Weight: 8kg
Display Parameters
Optical Brightness: ≥ 1000CD/M2
Contrast Ratio: ≥ 1000: 1
View Angle(50% Brightness): 110° /60°
Minimum View Distance: 40M
Transparency Ratio: 53%
Gray Scale: 8bits/256levels
Color Capacity: 16.7million
Power Supply
Power Consumption (Max. ): 230W/ M2
Power Consumption (Ave. ): 75W/ M2
Operating Power Source: AC110-220V 50-60Hz
Controller Frame Frequency: 60-85Hz
Refresh Rate: 2000Hz
Brightness Adjustment: 0-100%, 8 levels automatic
Gamma Correction: -5.0-5.0
Correction Scale Level: 8bits
Color Temperature: 5000-9300K
Brightness Correction: Pixel, Module, Cabinet Correction.
Input Source Support: Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD_SDI.
Control Distance: UTP CAT5E: 100M.
Multi-mode Fiber: 500M.
Single-mode Fiber: 10KM
Reliability Operating Temperature: -40-+65 degree
Operating Humidity: 10-90% RH
Operating Life Span: 100, 000 Hours
MTBF: 5, 000 Hours
Protection Ratings: IP63
Pixels Out of Control Rate: 0.01%


Our product
Our product quality management is strictly adhering to the ISO9001: 2008 certifications system and 7S management standard, to seek for greater perfection, which exerts profound influence on standardization of LED industry.GBLED is a national new high-tech enterprise,which owns number of national patents and has been cited as "Shenzhen Flat Panel Display Industry Association", "Member of Shenzhen SME Development Association", "Member of Semi-conductor and Lighting Promotion Association", "Member of Shenzhen Electronic Chamber of Commerce", "Member of China Optics and Optoelectronics Industry Association and LED Display Applications Branch Association", "Certified Supplier of Made-in-China" etc.

With an outstanding business performance and good social reputation,We has won respect from various circles of society, and acquired the "2009-2010 Excellent LED Display Application Engineering", "China Well-known Enterprise", "AAA Quality, Service and Prestige Unit", "China Top 100 Enterprise", "Guangdong China Top 10 Enterprise", "Shenzhen Well known Brand Enterprise", "National New High-tech Enterprise" etc.

Here we promise that, every client, every order and every feedback will be valued byGift Booking. Let's hand in hand, regarding "Showing the beauty of the world" as our mission, and creating a more colorful and brighter world.
