SMD 3 In 1 PH5 Stage Rental LED Display High Brightness HUB75 Module Port
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE/ROHS/FCC |
| Model Number: | P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case, flight case |
| Delivery Time: | 15 working days after receiving the deposit |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Pixel Pitch: | 5 Mm | Module Size: | 320 * 160 Mm |
|---|---|---|---|
| Scan Mode: | 1/16 Scanning | Module Port: | HUB75 |
| Warranty: | Two Years | Brightness: | ≥ 1800 Nits |
| High Light: | stage background led screen,led stage curtain screen |
||
Product Description
SMD 3 In 1 Ph5 Exterior LED Signs Rental High Brightness HUB75 Module Port
Specifications:
| ※ Module parameters | ||||
| Technical parameters | UNIT | Parameters | ||
| Pixel pitch | MM | 5 | ||
| Panel size | MM | L320*H160*T13 | ||
| Physical density | /M2 | 40000 dots | ||
| Pixel configuration | R/G/B | 1,1,1 | ||
| Driving method | Constant current 1/16scan | |||
| LED Encapsulation | SMD | 3528 | ||
| Display resolution | DOTS | 64X32=2048 | ||
| Module weight | KG | 0.25 | ||
| Module port | HUB75-B | |||
| Module working voltage | VDC | 5 | ||
| Module consumption | W | 30 | ||
| ※ Screen parameters | ||||
| Viewing angle | Deg. | 140 ° | ||
| Option distance | M | 5-50 | ||
| Driving device | 2026/5020 | |||
| Every square metre module | PCS | 19.53 | ||
| Maximum power | W/ M2 | 700 | ||
| Frame Frequency | HZ/S | ≥60 | ||
| Refresh frequency | HZ/S | ≥600 | ||
| Equilibrium brightness | CD/ M2 | ≥2200 | ||
| Working environment temperature | 0C | -10~60 | ||
| Working environment humidity | RH | 10%～70% | ||
| Display working voltage | VAC | AC46～54HZ,220V±15%/110V±15% | ||
| Colour temperature | 8500K-11500K | |||
| Gray scale / color | ≥16.7M color | |||
| Input signal | RF S-Video RGB etc | |||
| Control system | PCTV nonlinearity card,DVI display card,Linsn control system | |||
| Mean free error time | HOURS | ＞5000 | ||
| Life Span | HOURS | 100000 | ||
| Lamp failure frequency | ＜0.0001 | |||
| Antijam | IEC801 | |||
| Safety | GB4793 | |||
| Resist the electricity | 1500V last 1min No breakdown | |||
| Steel box weight | KG/ M2 | 40 (standard steel box) | ||
| Earth leakage current | mA | |||
| IP rating | The back IP40,The front IP50 | |||
| Cabinet size (for reference) | mm | L640Xh640x80 | ||
Features:
1. The cabinet is made of Die-Casting aluminum , so can be spliced with no crack. The thickness of the cabinet is only 80mm. The assembling can be much quicker and more efficient for no tools is needed, which help customers to transport and mount without any difficulties ,reduce the cost of use greatly!
2. The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use.
3. Low power consumption and good performance of dissipating heat make it work normally in the condition of no air conditioning.
4. Which help customers to transport and mount without any difficulties ,reduce the cost of use greatly!

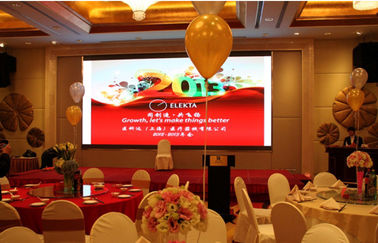

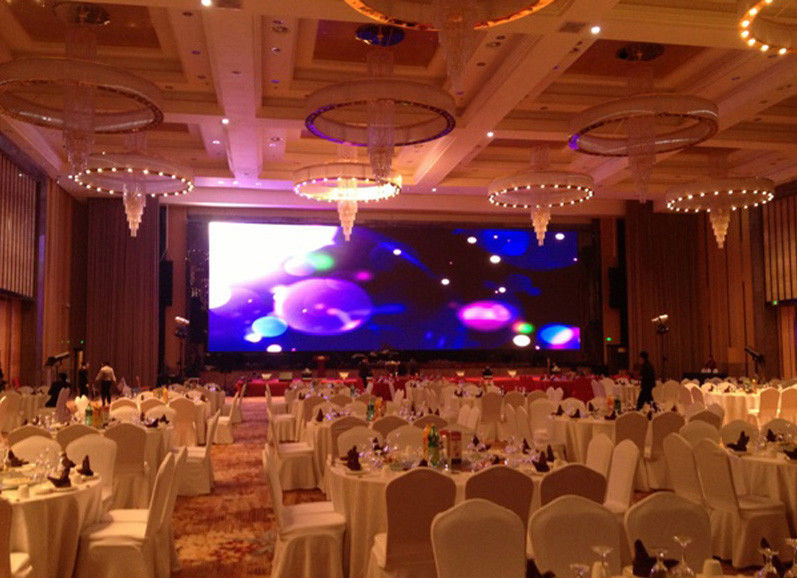

5. Suitable forindoor, commercial applications, banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications, government, offices, monitoring, schools, restaurants, hotels, entertainment, enterprises and other various indoor places.
Applications:
1: Reply your inquiry in 24 working hours.
2: Experienced staffs answer all your query in fluent English and Russian.
3: Customized design is available,OEM & ODM are welcomed.
4: Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5: Special discount and protection of sales area provided to our distributor.
6: Warmly welcome your visit in our company if available.
7: Warranty: 24 month quality guarantee, after 24 months, only charge for the cost of the repair. During the 24 months warranty time, we will be responsible for any damage happened to the display because of the quality fault, not wrong operation. As soon as we confirm that the damage is not caused by manual operation fault, we will deliver the good parts to you by air within 3 days for replacement. After 24 months, we can also offer you the parts for replacement at our bottom price.
8: Our assists with training and technical support for the customer in the factory, if required. You can also send your engineer to our factory at any time for LED display training. This service is free of charge.
