• P5 Rental LED Screens , Indoor LED Screen Rental With Die Casting Aluminum Cabinet
P5 Rental LED Screens , Indoor LED Screen Rental With Die Casting Aluminum Cabinet

P5 Rental LED Screens , Indoor LED Screen Rental With Die Casting Aluminum Cabinet

Product Details:

Place of Origin: China
Brand Name: GBLED
Certification: CE/ROHS/FCC
Model Number: P5

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case, Flight case
Delivery Time: 10-30 working days( depond on your quantity)
Payment Terms: T/T, Western Union
Supply Ability: 5000 sqm per month
Get Best Price Contact Now

Detail Information

Pixel Pictch: 5mm Module Size: 320*160mm
Brightness: 1600 Driving Method: Constant Current 1/16scan
Module Port: HUB75-D Module Working Voltage: 5V
Module Consumption: 15W
High Light:

led stage curtain screen


led stage display screen

Product Description

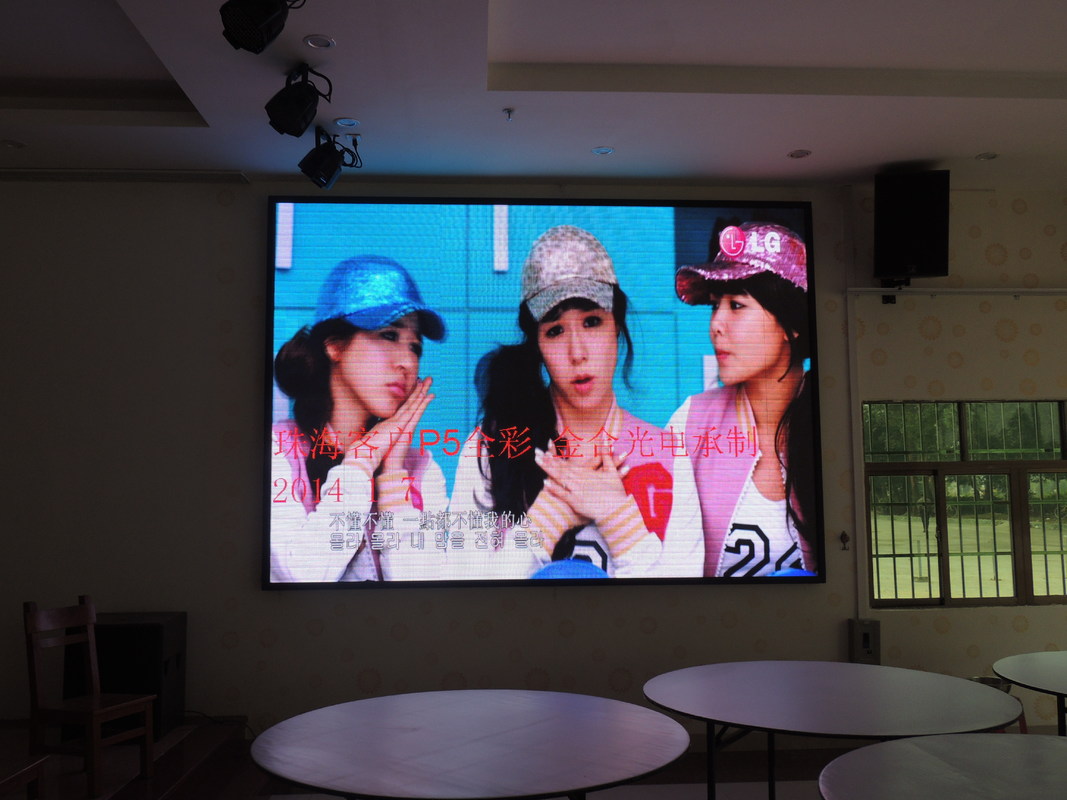

P5 Rental LED Screens , Indoor LED Screen Rental With Die Casting Aluminum Cabinet



Application area:


1 .  Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, so make the whole display
2 .  Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment,


※ Module Parameter
Technical parameters UNIT parameters values
Pixel pitch MM 5
Panel size MM L160XH160X15
Physical density /M2 40000
Pixel configuration R/G/B 1,1,1
Driving method   Constant current 1/16scan
LED Encapsulation SMD 3528
Display resolution DOTS 32X32=1024Dots
Module weight KG 0.12
Module port   HUB75-D
Module working voltage VDC 5
Module consumption W 15
※Screen parameter
Viewing angle Deg. H120 V120
Option distance M 5-50
Driving device
Every square metre module PCS 39
Maximum power W/ M2 600
Frame Frequency HZ 60
Refresh frequency HZ ≥100
Equilibrium brightness CD/ M2 ≥1600
Working environment temperature 0C -10~60
Working environment humidity RH 10%~70%
Display working voltage VAC AC46~54HZ,220V±15%/110V±15%
Colour temperature   9500K-11500K
Gray scale/color   ≥16.7M color
Input signal   RF S-Video RGB etc
Control system   PCTV ,nonlinearity card,display card,Linsn control system
Mean free error time HOURS >5000
Life HOURS 100000
Lamp failure frequency   <0.0001
Antijam   IEC801
Safety   GB4793
Resist the electricity   1500V last 1min No breakdown
IP rating   The back IP40,The front IP50




1. Ultrathin and lightweight: aluminum cabinet, easy to install and transport

2. OEM cabinet size: cabinet size is adjustable and compatible with different pixels.

3. New design: combine the advantages of Die-casting Aluminum and Duralumin, using die-casting Aluminum process on the four corners of cabinet to improve precision and guarantee seamless assembling. In the meantime, cost is low.

4. Fast Installation and disassembling: connection lock between cabinets are patented, closely combined, safe, reliable and adjustable

5. Unique blanking circuit: high definition display by eliminating the row/line after-image without damaging the LED lamps.

6. Energy saving: low electric current, high-bright lamps, equipped with PFC switching power supply, save 30% electricity.

7. High refresh rate, high gray level: It can reach 16bit by using PWM driving IC, refresh rate is more than 4000HZ, the gray level is still high even under the condition of low brightness

8. Color correction: support dot-to-dot correction, guarantee the consistency of LED color and brightness, No chromatic aberration for new screens.

9. Dual back-up: both power supply and system dual back-up are optional, reliable performance.



After-sale Service


We promise we provide 2 years warranty for free maintain for our products and full life tracking service.


1. During the warranty period, we will repair the equipment free of charge unconditionally if the problem is caused by product quality or production and installation problem.

2. When the warranty expires. we continue to provide maintenance service for whole life of the equipment with relative service/material cost paid.

3. Updating software service is free of charge.

4. Quick respond and repair and help promised by sending technicians to help test and repair on site within 36 hours after customer’s request.

5. We will finish repairing within 5 days after defective equipment sent back to us.
