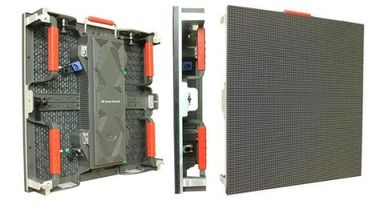

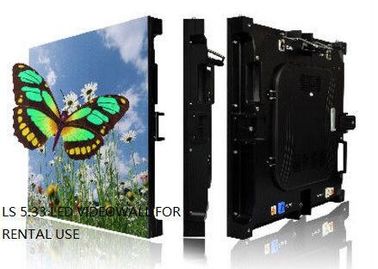

DIP P10 High Resolution Led Display Electronic Boards For Advertising

DIP P10 High Resolution Led Display Electronic Boards For Advertising

Product Details:

Place of Origin: Shenzhen, China
Brand Name: GBLED
Certification: CE/Rohs/ETL
Model Number: HD10

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wooden case, flight case
Delivery Time: 7-15 days after getting your deposit
Payment Terms: T/T, Western Union, Paypal, L/C
Get Best Price Contact Now

Detail Information

Module Size: 160x160 Model: HD10
Viewing Angle: 60°-120° Certification: CE Rohs ETL
Brand: Sage LED Type: 346
Warranty: 2-3 Years Application: Outdoor
High Light:

hd led video wall

,

hd led panel

Product Description



DIP P10 High Resolution Led Display Electronic Boards For Advertising





Description:


1. seamless assembling

2. Brightness automatical adjustment

3. High-definition visual effect

4. Approved by RoHS certification, Lead-free, enviromental design

5. Both above and below use stainless steel hasp

6. Ergonomic handle design, convenient handling

7. High performance and adjustable side lock, tools free.

8. International standards air plug on Power connectors, easy, fast and safe.

9. Receiving card to card with LAN cable, simple, less failure rate

10. Diversification assembling


Application:

The main screen: (Square Area) Live show, close-up shot, playback, competition information broadcast, advertisement and other switching varieties.
The secondary screen: (Trapezoidal Area) Mainly for advertisement, can also combined into a whole screen with the main square screen.
Cylindrical screen: Generally used for advertising, text messages, etc., can use be loop playback and partition play.


Our Services:

Two-year quality warranty with lifelong maintenance.
·Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
·Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.
·Spare parts: necessary spare parts are provided together with products to customers.
·Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
·Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
·Free on-site service for hardware related issues
.



Specifications:





Sage-HD10



Pitch 10mm
Module Size 160x160mm
Module cabinet 48(pcs)
Module Resolution 16x16(dot)
Cabinet Size 960mmx1280mm
Resolution/cabinet 96*128(dot)
Density 10000(dot/m²)
Pixel configuration 1R1G1B
LED Standard 346
Power Average Power: 200/150W/m²
Driving method 1/4 scan
Brightness ≥5000cd/m²
Input Voltage 110V/240V
Viewing Angle(H/V) 140°
Max Power Consumption 600/450W/m²
The Optimal viewing distance >10m
IP Degree IP65/IP54
Operating ambient humidity 10%-95%
Color 687Million Colors
Lifespan >100,000hrs
MTBF >50,000hrs
LED Failed <0.00001
Control Mode Video Sync
Rate ≥800HZ
Adopted Control System: PCTV Board + DVI Board + Control Board + Network cable Transmission
Video Signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION
- YPbPr, PAL/NTSC, HDMI, VGA, HD_SDI etc
LED parametr: R: (620-623nm) G: (519-522nm) B: (466-467nm)
  IV(800-1200mcd) G: IV1800-2300mcd) B: IV(450-520mcd)
Brightness adjustment: Manual adjustment: 256 levels for R, G, B
  Automatic adjustment: 8 grades for each color






Aging Testing:



LED display aging test precautions



1. The test content: black and white, red, green, blue monochrome, grayscale gradient, video effects, text effects
2. LED display a white screen test playing time is not less than 24 hours
3. Monochrome and grayscale gradient test not less than 24 hours
4. Video and text effects test not less than 24 hours




Package:

DIP P10 High Resolution Led Display Electronic Boards For Advertising 0
