Black SMD 1010 Electronic Indoor Rental HD Video Signs Pitch 1.56mm Ratio 16:9
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE, FCC, ROHS |
| Model Number: | V1.56-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10~20 Working Days |
| Payment Terms: | T/T, Western Union, Paypal, L/C |
| Supply Ability: | 10000SQ.M/Month |
|
Detail Information |
|||
| Refresh Rate: | 3840Hz | Brightness: | 800Nits |
|---|---|---|---|
| Drive Mode: | 1/27 Scan | Cabinet Size: | 600*337.5*80mm |
| Cabinet Weight: | 7.6kg/pc | Contrast Ratio: | 5000:1 |
| High Light: | hd led wall,hd led video wall |
||
Product Description
Black SMD 1010 Electronic Indoor Rental HD Video Signs Pitch 1.56mm Ratio 16:9
Advantage:
Safe Operation: With hot double backup for Signal, stable broadcasting would be guaranteed when failure happens.
Product Parameter:
|
Pixel pitch(mm) |
1.56 |
|
Pixel density(dots/m2) |
640000 |
|
Module resolution(W×H) |
128×108 |
|
Module size (mm) |
200(W)×168.75(H) |
|
Module weight (kg) |
0.4 |
|
Maximum power consumption of the module(W) |
40 |
|
Module of cabinet (W×H) |
2×2 |
|
Cabinet resolution(W×H) |
384×216 |
|
Cabinet size (mm) |
600(W)×337.5(H)×80(D) |
|
Cabinet area(m2) |
0.2025 |
|
Cabinet weight (kg) |
7.8 |
|
Cabinet level up degree(mm |
≤0.2 |
|
Maintenance mode |
Front |
|
Cabinet raw material |
Die-casting aluminum |
|
Single-point brightness correction |
yes |
|
Single - point color correction |
yes |
|
White Balance Brightness (nits) |
≥800(6500K) |
|
Color Temperature (K) |
3200—9300(adjustable) |
|
Viewing Angle (Horizontal / Vertical) |
160/160 |
|
Deviation of center distance of light - emitting |
<3% |
|
Brightness / chromaticity uniformity |
≥97% |
|
Contrast |
5000:1 |
|
Peak power consumption (W / m2) |
800 |
|
Average power consumption (W / m2) |
250 |
|
Power supply requirements |
AC90~264V,frequency 47-63(Hz) |
|
Frame rate (Hz) |
50&60 |
|
Drive mode |
Constant drive,1/27 scan |
|
Grayscale level |
65536 |
|
Refresh rate (Hz) |
≥3840 |
|
Number of color processing bits |
16bit |
|
Video playback capabilities |
2KHD,4KHD |
|
Operating temperature / humidity range (℃ / RH) |
-20 – 60 / 10%-85%RH |
|
Storage temperature / humidity range (℃ / RH) |
-20 – 60 / 10%-85%RH |
|
Applicable standards |
CCC,TUV-CE,ETL |

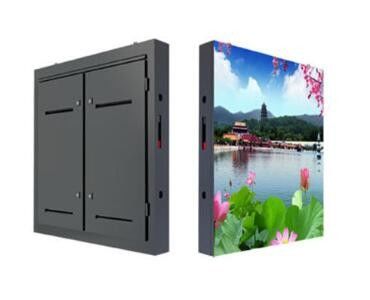

Product Pictures:
