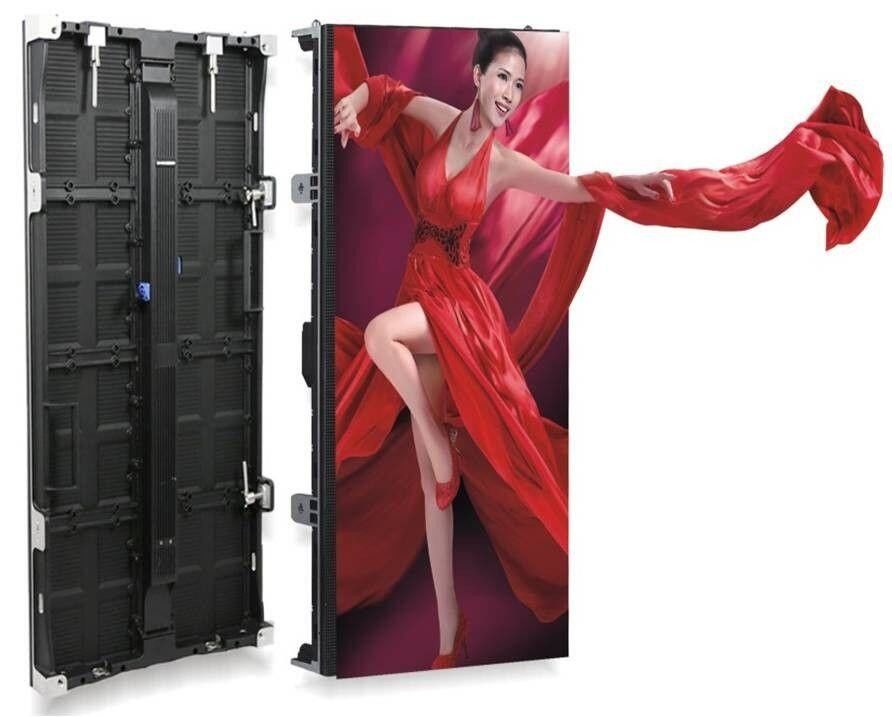

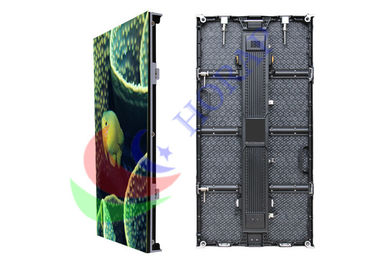

P5.68 Seamless Mobile Led Screen Rental Wide Viewing Angle, Hd Video Play Big Led Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE, FCC, ROHS |
| Model Number: | UF5.68-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight Case |
| Delivery Time: | 10~20 Working Days |
| Payment Terms: | T/T, Western Union, Paypal, L/C |
| Supply Ability: | 10000SQ.M/Month |
|
Detail Information |
|||
| Pixel Pitch: | 5.68mm | Pixel Density: | 30976 Dots/sq.m |
|---|---|---|---|
| Pixel Type: | SMD3528 | Service Access: | Back |
| Module Size: | 250*250mm | Cabinet Size: | 500*1000*75mm |
| Cabinet Weight: | 13.5kg/pc | Drive Mode: | 1/11 Scan |
| High Light: | indoor rental led display,led display screen rental |
||
Product Description
P5.68 Seamless Mobile LED Display For Indoor Advertising Screens Thickness 75mm
Product Quick Details:
- Die-cast aluminum cabinet 500x1000mm
- Front maintenance access
- Seamless splicing
Product Features:
- Alignment hole and location pin design for installation could achieve extreme precision between cabinets, seam splicing is less than 0.05mm.
- Cabinet size is 500*1000mm, thickness 75cm, and weight is only 13.5kg/pc, very light and slim, makes much easier for transporting, installation and movement, could save your cost and time.
- Fanless design, excellent natural heat dissipation achieves zero noise, providing quiet working environment, best choice for indoor rental events.
- User-friendly locking system, aviation plug and three handles on each cabinet makes disassembly and maintenance easy and convenient. Unique anti-burial design to avoid the patchwork.
- SMD guarantee super wide viewing angle, higher flatness and better performance, offers you clear and natural images in all directions.
- IC MBI5124 is used, high refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
General Information:
| Model No. | UF5.68-I | Description | Indoor Rental LED Display | |||
| Pitch | 5.68MM | Pixel Density | 30976 pixels/sq.m | |||
| Pixel Configuration | 1R1G1B | Pixel Type | SMD3528 | |||
LED Information:
| Color | Wave Length | Brightness | LED Chip | ||
| Red | 620~625nm | 130~180mcd | Epistar | ||
| Green | 520~525nm | 450~550mcd | Epistar | ||
| Blue | 465~470nm | 65~90mcd | Epistar | ||
Module Informatiom
| Module Size | 250*250mm | Module Resolution | 44*44 pixels |
Cabinet Information:
| Module Component | W:2*H:4pcs=8pcs |
| Cabinet Size | 500*1000*75mm |
| Cabinet Resolution | 88*176 pixels |
| Cabient Weight | 13.5kg/pc |
| Service Access | Back |
Product Parameter:
| ITEM | SPECIFICATION |
| Drive Mode | 1/11 scan, constant current |
| IC | MBI5124 |
| Brightness | 1500CD/SQ.M(adjustable) |
| Refresh Rate | 1920Hz |
| Frame Frequency | 50&60Hz |
| Grey Scale Level | 65536(adjustable) |
| Color Temperature | 3200~9300K(adjustable) |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 150°(Horizontal),120°(Vertical) |
| Best Viewing Distance | 5~100m |
| Protection Level | IP31 |
| Power Consumption (Max) | 800W/M2 |
| Power Consumption (Avg) | 300W/M2 |
| MTBF | ≥5,000 hours |
| Life-Span | 100,000 hours |
| Voltage | AC 100V~240V, 50/60 Hz |
| Control System | Synchronous/Asynchronous Control System |
Application:
Widely used in stage, concert, live on TV, wedding, conference, ceremony gala, exhibition presentation and commercial advertising etc.
