P5.68 Indoor Rental LED Screen Video / Mobile HD LED Screen High Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE, FCC, ROHS |
| Model Number: | T5.68-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight Case |
| Delivery Time: | 10~20 Working Days |
| Payment Terms: | T/T, Western Union, Paypal, L/C |
| Supply Ability: | 10000SQ.M/Month |
|
Detail Information |
|||
| Refresh Rate: | 1920 Hz | Drive Mode: | 1/11 Scan |
|---|---|---|---|
| Protection Level: | IP31 | Cabinet Size: | 500*500mm |
| Pixel Pitch: | 5.68mm | Pixel Density: | 30976 Dots/sq.m |
| High Light: | indoor led screen hire,indoor rental led display |
||
Product Description
P5.68 Indoor Rental LED Display Video / Mobile hd led screen High brightness
Product Quick Details:
- IC is MBI5124, refresh rate could reach 1920Hz
- Die-cast aluminum cabinet 500x500mm, featured slim and light
- -15 to +15 curve adjustment is available
Product Features:
Many control system for your choice, synchronous control, wifi control, 3G remote control etc. Indoor rental led displays is widely used for mobile events because of featured in slim, light, convenient connector and easy mounted.
- Front maintenance is optional, maintenance channel is not needed, a step to solve the problem of the installation space. No need to remove screws, makes maintenance easier, 10 times faster, thus save your time and cost.
- Curvature adjustment from -15 to +15 is optional, could meet more requirements of clients about different shapes.
- Mute design: excellent heat dissipation, the entire screen no fan design, to achieve zero noise, provide quiet working environment.
- High resolution and definition guarantee superior performance even with small screen size.
- Cabinet size is 500*500mm, and weight is only 8kg/pc, very light and slim, convenient in transporting and and installation, thus save labor cost and avoid wasting much time, very suitable for flow shows and rents.
- Alignment hole and location pin design for installation could achieve extreme precision between cabinets, besides module shaping one time, get seamless splicing and assemble easier.
- There are three handles for lifting cabinets, aviation plug and fast lock on each side is equipped, makes very convenient and comfortable for fast installation by one person without tools, besides guarantee seamless installation and keep smoothly
- IC MBI5124 is used, high refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
Product Specification:
| Pitch | 5.68MM | Pixel Density | 30976 pixels/sq.m | |||
| Pixel Configuration | 1R1G1B | Pixel Type | SMD2121 RGB, Black LED | |||
| Module Size | 250*250mm | Module Resolution | 44*44 pixels | |||
| Cabinet Size | 500*500mm | Cabinet Resolution | 88*88 pixels | |||
| Drive Mode | 1/11 scan, constant current | Drive IC | MBI5124 | |||
| Brightness | 1000cd | Refresh Rate | 1920Hz | |||
| Grey Scale Level | 65536 | Contrast Ratio | 4000:1 | |||
| Viewing Angle | 150°(Horizontal),120°(Vertical) | Best Viewing Distance | 5~50m | |||
| Protection Level | IP31 | Voltage | AC90~264V,47-63(Hz) | |||
Application:
Widely used in stage, concert, live on TV, wedding, conference, ceremony gala, exhibition presentation, commercial advertising and other indoor rental events.

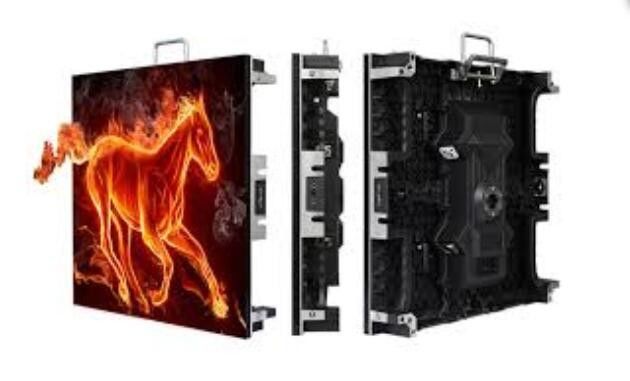

Product Pictures:
