Light Weight LED Video Wall Rental Front Service LED Advertising Billboard 1200cd/M2
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE/RoHS/FCC/ETL |
| Model Number: | C391S |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Product Name: | LED Display | Brightness: | 1200cd/m2 |
|---|---|---|---|
| Feature: | Magnet Adsorption | Standard: | CE/RoHS/FCC/ETL |
| Module Dimension: | (W)250mm X(H) 500mm | Module Weight: | 1.31 Kg |
| High Light: | led video wall hire,led video panel rental |
||
Product Description

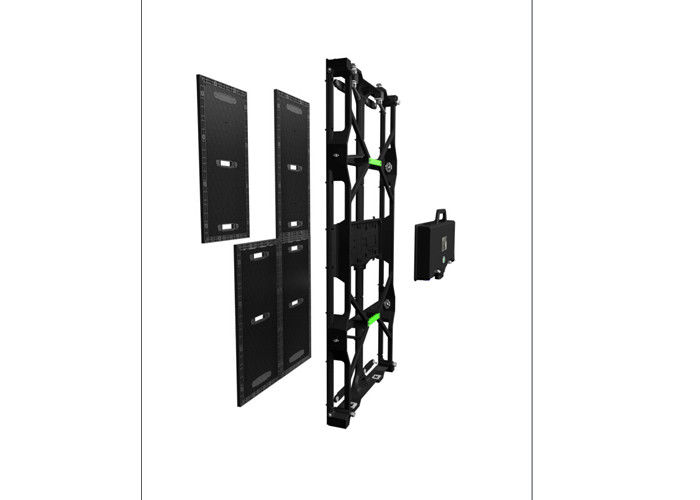

Light Weight Panel Indoor Rental LED Screens With Fast Locks
Description:
1. Low power consumption.
2. 4 fast locks with adjustment function for the seamless between panels.
3. Front & rear maintenance while display is running-no tools needed.
4. The outer lines can be through the side of the panels, tidier.
5. LED module connects to frame through magnet adsorption.
6. Large viewing angle: 160°/140°(horizontal/vertical).
7. Modules can be added to frame in any order.
8. Die-casting aluminum.
9. Panel weight: 13.5kg.
Specifications:
|
Model |
C391S |
|
Pixel pitch |
3.91 mm |
|
Configuration |
SMD2121 black |
|
Module dimension |
(W)250mm x(H) 500mm |
|
Module weight |
1.31 kg |
|
Panel dimension |
(W)500mmx(H)1000mmx(D)70mm |
|
Panel weight |
13.5 kg |
|
Pixel density |
65536 dots/㎡ |
|
Flatness error |
≤0.1 mm |
|
Viewing angle |
160°/140°(Horizontal/Vertical) |
|
Brightness |
>1200 cd/㎡ |
|
Color temperature |
12400 K |
|
Contrast |
4000:1 |
|
Repetition frequency |
50/60 Hz |
|
Refresh frequency |
1200 Hz |
|
Gray scale |
14 bit |
|
Ave. power |
100 W/㎡ |
|
Max power |
260 W/㎡ |
|
Working temp./humidity |
-10~40℃ / 10%~90%R |
|
Storing temp./humidity |
-40~60℃ / 10%~90%R |
|
Panel structure |
Die-casting aluminum alloy |
|
Maintenance |
Front and Rear |
|
Protection |
IP40 |
|
Driving mode |
Constant current driver |
|
Scanning |
1/16 |
|
Power requirements |
AC220V±10%, 47~63Hz |
|
Life time |
100,000 hrs |
|
Certificate |
CCC/TUV-CE/ETL, etc. |
Technical support:
1. Installation and Maintain Manual
2. LED display system connection diagram
3. Data wire connection diagram
4. Power supply wire connection diagram
5. multi-language software Guidance
Applications:
Big shows, rental events, TV studios, exhibitions.
