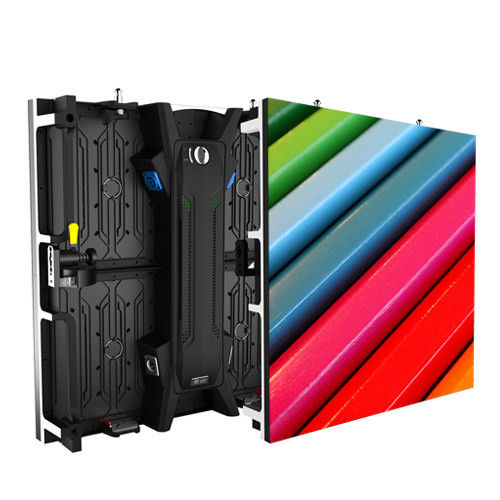

P2.61 SMD2020 Front Service LED Video Wall Rental Perimeter LED Display Board
Product Details:
| Place of Origin: | china |
| Brand Name: | GBLED |
| Certification: | ccc,ce |
| Model Number: | P2.61 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
|
Detail Information |
|||
| Pixel Configuration: | SMD2020 | Cabinet Dimensions: | 500x500x82.5 |
|---|---|---|---|
| Panel Material: | Die-casting Aluminum | Color Grayscale: | 14 |
| High Light: | led video wall hire,video wall led display |
||
Product Description
P2.61 SMD2020 Front Service Led Display Perimeter Advertising Boards Lightweight
Support module before and after maintenance
Support module hot plugging
Support modules can be swapped up and down.
Full die cast aluminum construction.
Two – way positioning design on both sides of the box.
Box floor protection design.
Technical Specification
| Parameter | C261R | C391R |
| Pixel pitch(mm) | 2.6 | 3.91 |
| Pixel Configuration | SMD2020 | SMD2020 |
| Pixel matrix per panel (dots) | 192 x 192 | 168 x 168 |
| Pixel density(pixels/m²) | 147456/dots | 65536/dots |
| Cabinet Dimensions (mm) | 500x500x82.5 | 500x500x82.5 |
| Panel material | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet weight (kg) | 6.8Kg/cabinet | 6.8Kg/cabinet |
| Color Grayscale | 14 | 14 |
| Gray Scale per Color(Bit) | 16384 | 16384 |
| Refresh Rate(Hz) | ≥1920 | ≥1920 |
| Driving Type | 1/32 | 1/16 |
| Brightness(cd/m2) | 1100cd/m2 | 1000cd/m2 |
| Optimal Horizontal Viewing Angle(°) | 140 | 140 |
| Optimal Vertical Viewing Angle(°) | 140 | 140 |
| AC Input Voltage(V) | AC110V/AC220V±10% | AC110V/AC220V±10% |
| AC Input Frequency(Hz) | 60 | 60 |
| AC Input Power Maximum Value(W/m²) | 460 | 460 |
| AC Input Power Typical Value(W/m²) | 160 | 160 |
| Storage Temperature( ℃) | -10℃ – 50℃ | -10℃ – 50℃ |
| Operating Temperature( ℃) | 0℃ – 40℃ | 0℃ – 40℃ |
| Storage Humidity( RH) | 10%~90% | 10%~90% |
| IP rating(Front & Rear) | IP40/IP40 | IP40/IP40 |
| Operating Humidity( RH) | 10%~90% | 10%~90% |
| Lifetime Typical Value( hrs) | 100000 | 100000 |
| Cabinet installation type | Rental | Rental |
| Cabinet maintenance type | Front & Rear | Front & Rear |
After services
(i) Warranty is for 2 years.
In the warranty period, we will maintain and replace the defect components for free without any man-made damage, but you should pay for shipping fee, both back and forth .After 2 years, we only charge the material cost, you should be responsible for shipment.
(ii) Free training: You can send your engineers to our factory for one week free of charge training, which includes the software operation, installation, adjustment, basic repairing, etc.
(iii) Technical Support: If needed, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such as visa, hotel, food, both trip plane ticket, and also USD150/day/staff (from our engineer’s departure from Shenzhen) and help to arrange our staff's visa.
Packing & Delivery
For Iron cabinet of indoor and outdoor LED display screens, we use wooden case to pack,
For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets
By air or by sea! FOB or CIF
Applications:
Trade shows, live shows, rental events, TV studios, exhibitions.
