P40 / P20 Light Weight LED Video Wall Rental Indoor LED Display For Live Shows
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE/RoHS/FCC/ETL |
| Model Number: | X481 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Product Name: | LED Display | Application: | Indoor |
|---|---|---|---|
| Repetition Frequency(Hz): | 60 | Protection: | IP40/IP20 |
| Configuration: | SMD | Flatness Error(mm): | ≤0.1 |
| High Light: | led video wall hire,video wall led display |
||
Product Description

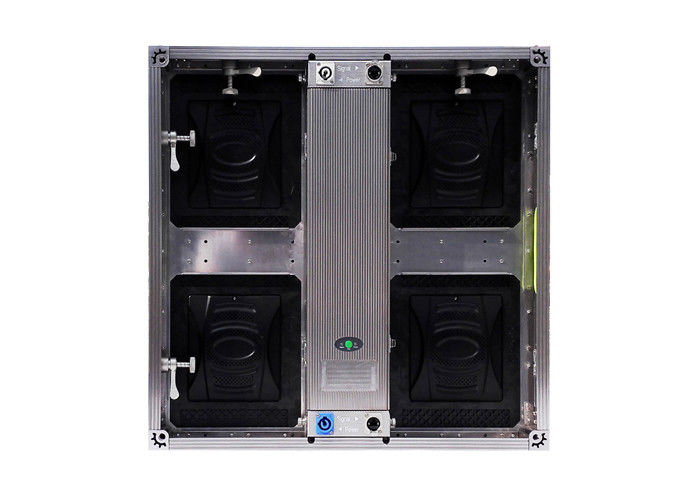

P40 / P20 Light Weight Indoor Rental LED Display For Live Shows
Description:
- Excellent product for stage use.
- Classical design and natural technic,reliable quality and great performance.
- Seamless connecting tech.,screen flatness error <0.1mm.
- Patented mask,eliminating the dark spots,improving consistency and viewing angle.
- High contrast,ideal gray scale,presenting the most real pictures.
- Supporting brightness and color correcting of the whole screen.
- Ideal load of power and parameter setting,make screen under the best working condition,moreover,furthest slow down brightness and color reduction.
Specifications:
|
Model |
X481 |
X601 |
|||||
|---|---|---|---|---|---|---|---|
|
Pixel pitch(mm) |
4.8 |
6.0 |
|||||
|
Configuration |
SMD |
||||||
|
Module dimension(mm) |
(W)288x(H)288 |
||||||
|
Module weight(kg) |
0.98 |
0.95 |
|||||
|
Panel dimension(mm) |
(W)576x(H)576x(T)76 |
||||||
|
Panel weight(kg) |
8.1 |
7.9 |
|||||
|
Pixel density(dots/㎡) |
43264 |
27778 |
|||||
|
Flatness error(mm) |
≤0.1 |
||||||
|
Viewing angle(°) |
140/100(Horizontal/Vertical) |
||||||
|
Brightness(cd/㎡) |
1800 |
1500 |
|||||
|
Color temperature(K) |
12388 |
14263 |
|||||
|
Repetition frequency(Hz) |
60 |
||||||
|
Refresh frequency(Hz) |
1800 |
||||||
|
Gray scale(bit) |
16 |
||||||
|
Ave. power(W/㎡) |
330 |
300 |
|||||
|
Max power(W/㎡) |
610 |
490 |
|||||
|
Working temp./humidity |
0~50℃/10%~90%RH |
||||||
|
Storing temp./humidity |
-40~60℃/10%~90%RH |
||||||
|
Panel structure |
Die-casting aluminum |
||||||
|
Protection |
IP40/IP20 |
||||||
|
Maintenance |
Rear |
||||||
|
Brightness/color correction |
Yes |
||||||
|
Driving mode |
Constant current driver, 1/12 scanning |
||||||
|
Power requirements |
AC220±10%, 50Hz |
||||||
|
Signal Transmission Distance |
CAT cable:<100m;Single mode fiber:<10km |
||||||
|
Installation type |
Rental/Fix |
||||||
|
Life time(hrs) |
100,000 |
||||||
|
Certificate |
CCC/TUV-CE/ETL, etc. |
||||||
Advantages:
1.The increase of the color depth, high refresh and gray-scale: 14 bit to 16 bit gray level, the refresh rate of 1000 hz ~ 3000 hz meet the effect of singing live broadcast, not scan line light flashes.
2.Cabinet adopts high strength die-casting aluminum technology, strength, light weight, high precision, enclosure compatible standardization design can be compatible with all models of modules installed.
3.Tool-less &fast install,can realize hanging,stow and any position installation.
Applications:
Product presentations, Live shows, rental events, TV studios, exhibitions.
