|Cabinet Dimensions (LxWxH)/（ Mm）:||500x500x82.5|
video wall led display,
led video panel rental

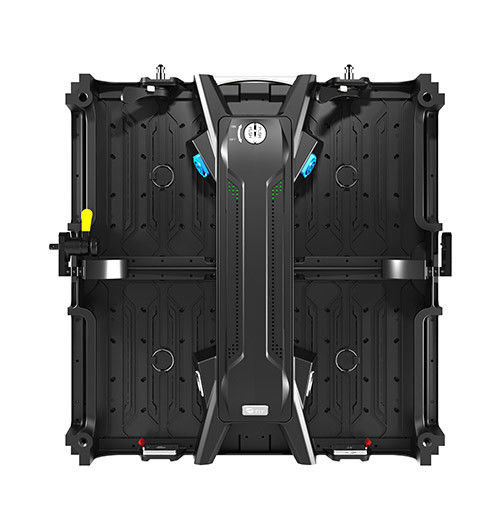

Super Slim P3 Indoor Rental Led Display Full Color , Stage Led Screens Energy Saving
1. Front and Rear maintenance.
2. 4 fast locks with adjustment function for the seamless between panels.
3. Front & rear maintenance while display is running-no tools needed.
4. The outer lines can be through the side of the panels, tidier.
5. LED module connects to frame through magnet adsorption.
6. Large viewing angle: 160°/140°(horizontal/vertical).
7. Modules can be added to frame in any order.
8. Die-casting aluminum.
|Physical Parameter||Pixel Configuration||SMD2020|
|Pixel Pitch( mm)||3.91|
|Pixel matrix per panel||128x128|
|Pixel density( pixels/sq.m.)||65536|
|Cabinet Dimensions (LxWxH)/( mm)||500x500x82.5|
|Module Dimensions (LxWxH)/( mm)||250x250x17|
|No. of Modules Per Panel (WxH)
(W × H)
|Panel material||die casting aluminum|
|Cabinet weight (kg/panel)||6.8kg|
|Module weight (kg/panel)||0.75kg|
|Electronic Parameter||Color Grayscale (Bit)||14|
|Gray Scale per Color ( level)||16384|
|Refresh Rate( Hz)||≥1920|
|Optical Parameter||Brightness( nit)||1000nit|
|Optimal Horizontal Viewing Angle( °)||140|
|Optimal Vertical Viewing Angle( °)||140|
|Electrical Parameter||AC Input Voltage( V)||AC110V/220V±10%|
|AC Input Frequency( Hz)||50/60|
|AC Input Power Maximum Value( W/m²)||460|
|C Input Power Typical Value( W/m²)||160|
|Circumstance Parameter||Storage Temperature( ℃)||―10 - 55|
|Operating Temperature( ℃)||―0 - 40|
|Storage Humidity( RH)||10%~90%|
|IP rating (Front/Rear)||FontIP40/RearIP40|
|Operating Humidity( RH)||10%~90%|
|Lifetime Typical Value( hrs)||100000|
|Installation type||Cabinet installation type||Rental/Front Maintainance|
(i) Warranty is for 2 years.
In the warranty period, we will maintain and replace the defect components for free without any man-made damage, but you should pay for shipping fee, both back and forth .After 2 years, we only charge the material cost, you should be responsible for shipment.
(ii) Free training: You can send your engineers to our factory for one week free of charge training, which includes the software operation, installation, adjustment, basic repairing, etc.
(iii) Technical Support: If needed, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such as visa, hotel, food, both trip plane ticket, and also USD150/day/staff (from our engineer’s departure from Shenzhen) and help to arrange our staff's visa.
Packing & Delivery
For Iron cabinet of indoor and outdoor LED display screens, we use wooden case to pack,
For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets
By air or by sea! FOB or CIF
Trade shows, live shows, rental events, TV studios, exhibitions.
