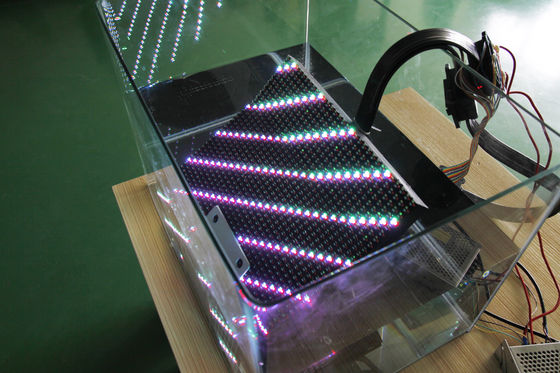

IP67 RGB Stadium Advertising Boards / LED Display Boards P9.525mm 32 x 32 Dots
Product Details:
Place of Origin: | China |
Brand Name: | GBLED |
Certification: | CE,FCC, EMC, UL, ETL, |
Model Number: | PD9S |
Payment & Shipping Terms:
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Flight Case/Plywood Case/Carton Costomized Dimension |
Delivery Time: | 10-30 work days |
Payment Terms: | T/T, MoneyGram, L/C |
Supply Ability: | 10000sqm per year |
Detail Information |
|||
Color: | RGB Color | LEDs: | SMD3535 |
---|---|---|---|
LED Chips: | Silan/Epistar | Refresh Rate: | 1440-4000Hz Frame/s |
Control Mode: | Synchronization/Asynchronization | IP Grade: | IP67 |
Video Acceptable: | RF,S-Video,VGA,CVBS,DVI,YPrPb,HDMI,SDI Etc. | Warranty Time: | 1~3 Years |
High Light: | stadium led screens,stadium display screen |
Product Description
IP67 RGB Color Sport Perimeter LED Display Boards P9.525 mm 32 x 32 Dots
Specifications:
Product Series | PD9S |
Pixel Pitch | 9.525mm |
Pixel Package | SMD3535 |
LED Configuration | 1R1G1B |
Pixel Density | 11,0 Pixels/㎡ |
Module Size | 1 feet x 1 feet |
Module Resolution | 32 x 32 dots |
Suggested Cabinet Size | 3 feet x 3 feet |
Cabinet Resolution | 96 x 96 dots |
Cabinet Material | Iron / Aluminum |
Brightness | ≥ 4500 nits |
Color Temperature | 3000-12000K |
Viewing Angle | H-140°/ V-140° |
Driving Mode | 1/4 |
Refresh Rate | 1920-3840Hz |
Frame Frenquency | 60Hz |
Grey Level | 4096~65536 |
Number of Color | >1 billion |
Maximum Power Consumption | 350 W/㎡ |
Average Power Consumption | 120~180 W/㎡ |
Input Voltage | AC220±10%, AC110 ±10% |
Input Frequency | 50-60Hz |
External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
IP Rating | IP67 |
Features:
1. Top Cabinet Special Design for Collision Avoidance.
2. Adjustable Soleplate Design, Cabinet Freely Regulated Angle 55°to 90°.
3. Back door and Cabinet Façade parallel, Simple and Practical.
4. Stowable Regulating Bracket, Saving Storage Space.
5. Separation of Inside Power Supplier and Control System Ensures Easy Maintenance.
6. Safe, Convenient and Quick.
7. Power Supplier and Signal Plug Connectors, International Standard.
Applications:
Any indoor sport tadium, such as volleyball, baseball, basketball etc.
Quick Detail:
1. 28°support adjustable.
2. Waterproof and 2 years warranty.
3. High Brightness more than 1500cd/sqm.
4. Long lifespan up to 100,000 hours.
5. Soft mark used.
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION.
Service & Support:
Two-year quality warranty with lifelong maintenance.
Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.
Spare parts: necessary spare parts are provided together with products to customers.
Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
Catalog of panda series catalog.pdf
