• Outdoor P8 SMD Full Color Commercial Advertising LED Display Waterproof
Outdoor P8 SMD Full Color Commercial Advertising LED Display Waterproof

Outdoor P8 SMD Full Color Commercial Advertising LED Display Waterproof

Product Details:

Place of Origin: CHINA
Brand Name: GBLED
Certification: CE FCC ROHS UL
Model Number: GFO-8

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 15-20 working days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000m2 per month
Get Best Price Contact Now

Detail Information

Panel Size: 1024mm X 768mm Waterproof: Yes
Brightness: 5000 Nits Materials: Steel Cabinet With Backdoor
Certification: CE FCC ROHS UL Origin: China
High Light:

full color led screen

,

outdoor full color led screen

Product Description

Outdoor P8 SMD Full Color Commercial Advertising LED Display with good waterproof


Description:
1. Standard panel size 1024mm x 768mm
2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
3. High brightness with 5000 nits.
4. Good heat dissipation
5. High refresh rate.
6. 2 years warranty, easy to install & maintenance.
7. CE, ROHS, FCC.

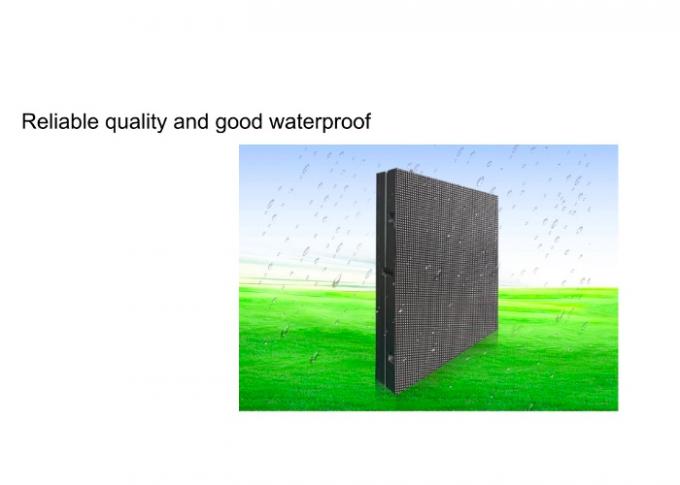

8. IP65: water-proof.
Specifications:

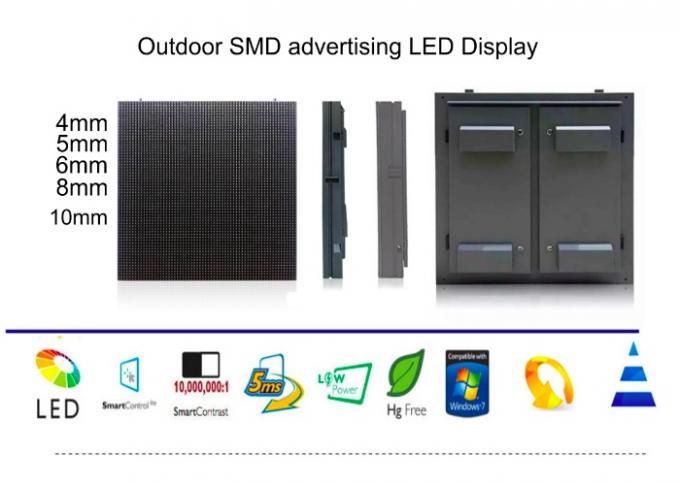

Outdoor Advertising LED Display
TypeP4(SMD)P5(SMD)P6(SMD)P8(SMD)P10(SMD)
ModulePixel Configuration19212727272727273535
Pixel Pitch (mm)456810
Module Size (W*H)256*128160*160192*192256*128320*160
Module Resolution (W*H)64*3232*3232*3232*1632*16
PanelPanel Size (W*H)768*768960*960960*9601024*768960*960
Panel Resolution (W*H)160*160160*160160*160128*9696*96
Weight (square meter)4545454545
Maintenance MethodRear
Pixel Denity (Dots/㎡)6250040000277771562510000
Brightness (cd/㎡)55005500550055005500
Refresh Rate (Hz)≥1920≥1920≥1920≥1920≥1920
Grey Level (Bit)12~16Adjustable
Color Temperature (K)6500 Adjustable

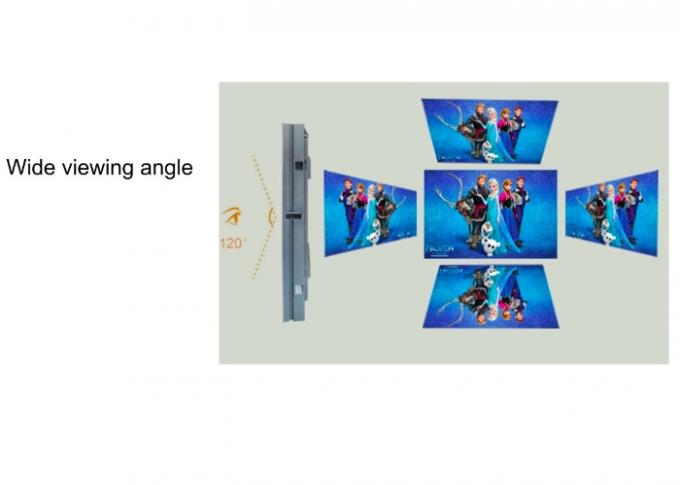

Horizontal/Vertical Viewing Angle (°)140/140
Max./Ave.Power Consumption (square meter)600/180600/180600/180600/180600/180
Operating Voltage  AC90~240V(50~60Hz)
Contrast Ratio  1/3000
ApplicationWorking Temperature (℃)  -25~65
Working Humidity (RH)  10~ 85% No Condensation
Working Life Span (hrs)  ≥100,000
Certificate  CCC.ETL/UL.CE-TUV.FCC.ROHS
Version:V1.0



Good service After-sale
1. Two years warranty for the whole system except human factor and force majeure
2. One year quality warranty, lifetime maintenance, and guarantee the maintenance time in contract.
3. During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge.
4. As to the product quality problems caused by design, manufacture, installation technology, material, the replacement and maintenance are free. The system damage caused by force majeure(flood, fire, earthquake, war and so on) as well as users) man-made disturbance(construction, cleaning ) should be coordinate by both sides to solve.
5. Life-long maintenance for the system: after the guarantee, we only charge the cost of hardware
