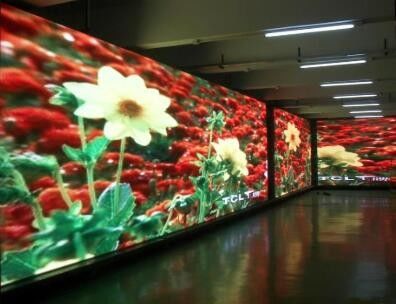

Advertising P5 Outdoor Full Color LED Display , Large Screen LED Video Display Panel

Advertising P5 Outdoor Full Color LED Display , Large Screen LED Video Display Panel

Advertising P5 Outdoor Full Color LED Display , Large Screen LED Video Display Panel

Product Details:

Place of Origin: China
Brand Name: GBLED
Certification: CE/ROHS/FCC
Model Number: P5

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Packed in road cases
Delivery Time: 15 working days after receipt of deposit
Payment Terms: T/T, Western Union
Supply Ability: 2,000 square meters per month
Contact Now
Detailed Product Description
Usage: Outdoor Function: Video
Color: Full Color Pixels: 5mm
Brightness: ≥7000nits Origin: China

Advertising P5 Outdoor Full Color LED Display , Large Screen LED Video Display Panel





Specifications



Display and Control Feature Structure Feature
Items Parameter Items Parameter
Pixel Pitch 5mm LED module size 160mm*160mm
Pixel composing 1R1G1B(3IN1) Display resolution/module 32 dots*32dots
Wavelength (R) 625±5nm Standard cabinet size 640*640mm
Wavelength (G) 522±2.5nm Weight per sqm 30 Kg/sqm
Wavelength (B) 567±2.5nm Protection classification IP65
Wave Angle (H) 140°(H)/140°(V) Install mode Wall mounted, hung and stand structure
LED package SMD2727 Cabinet Material Aluminum/Iron
Density 40000 Working Power
Display color 256*256*256 Specification Parameter
Whiteness brightness ≥7000cd/m2 Working voltage AC 220v/380v±10% 47~64Hz
Brightness level 128 grade Max power/sqm 950W/sqm
Changing frame frequency 60 Hz Average power/sqm 400W/sqm
Refresh 1000 Hz Short circuit protection Yes
Driving method Constant current 1/8 scan
Control mode synchronous Working Environment
Display port DVI Specification Parameter
MTBF >5000 hours Environment Outdoor
Out of control 1/10,000 ( scattered) Working temperature --20~60°C
lifetime 100,000 hours Working Humidity

10~90%





Features



1. Ultrathin and lightweight: aluminum cabinet, easy to install and transport.



2. OEM cabinet size: cabinet size is adjustable and compatible with different pixels.



3. New design: combine the advantages of Die-casting Aluminum and Duralumin, using die-casting Aluminum process on the four corners of cabinet to improve precision and guarantee seamless assembling. In the meantime, cost is low.



4. Fast Installation and disassembling: connection lock between cabinets are patented, closely combined, safe, reliable and adjustable.



5. Unique blanking circuit: high definition display by eliminating the row/line after-image without damaging the LED lamps.



6. Energy saving: low electric current, high-bright lamps, equipped with PFC switching power supply, save 30% electricity.



7. High refresh rate, high gray level: It can reach 16bit by using PWM driving IC, refresh rate is more than 4000HZ, the gray level is still high even under the condition of low brightness.



8. Color correction: support dot-to-dot correction, guarantee the consistency of LED color and brightness, No chromatic aberration for new screens.



9. Dual back-up: both power supply and system dual back-up are optional, reliable performance.



Our Services



1. Reply your enquiry in 24 working hours.



2. Experienced staffes answer all your questiones in fluent English.



3. Customized desigh is avialiable OEM&ODM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.



5. Special discount and protection of sales area provided to our distributor.





Excellent after-sale service



a) Warranty will be valid for 2 years against manufacturing defect.
b) The warranty shall not apply to the following circumstances.
c) Damage caused by undue ware& tear, misuse, improper installation or operation, neglect, accidents.
d) Damage caused by natural disasters, flood fire, lightning or pollution.
e) If item was opened, any parts removed or repaired by any unauthorized person.
