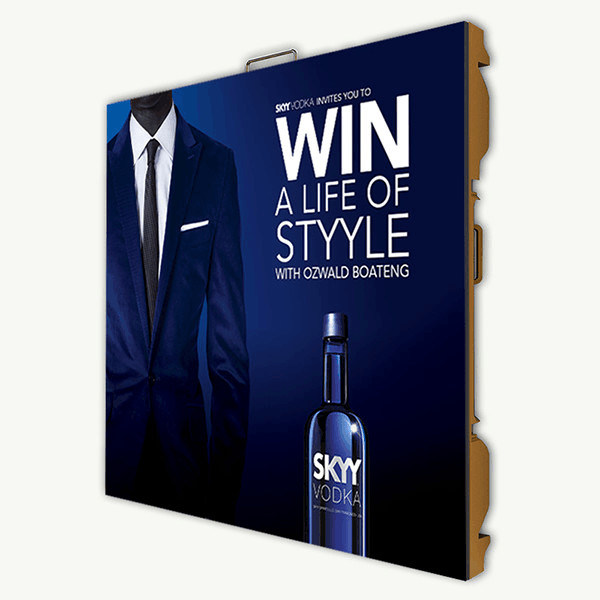

P4.81 Full Color Indoor Rental LED Screen High Resolution Indoor LED Display Screen
Product Details:
Place of Origin: | China |
Brand Name: | GBLED |
Certification: | CE, FCC, ROHS |
Model Number: | TC4.81-I |
Payment & Shipping Terms:
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Flight Case |
Delivery Time: | 10~20 Working Days |
Payment Terms: | T/T, Western Union, Paypal, L/C |
Supply Ability: | 10000SQ.M/Month |
Detail Information |
|||
Pixel Density: | 43264 Dots/sq.m | Module Size: | 250*250mm |
---|---|---|---|
Curvature: | -10~+10 Degree Adjusted | Pixel Pitch: | 4.81mm |
Cabinet Size: | 500*500mm | Cabinet Material: | Die-cast Aluminum |
Drive Mode: | 1/13 Scan | IC: | MBI5124 |
High Light: | indoor rental led display,led display screen rental |
Product Description
P4.81 Full Color Curved Indoor Rental LED Display For Video Curtain, 1/13 Drive
Product Quick Details:
- Pixel pitch: 4.81mm
- Curvature -10~+10 degree adjusted
- Slim and light weight
Product Features:
- Each cabinet have -10°~+10° curvature adjustment, could meet more needs of clients.
- Cabinet size is 500*500mm, thickness 75cm, and weight is only 8.2kg/pc, very light and slim, convenient in transporting and and installing, thus save labor cost and avoid wasting much time, very suitable for flow shows and rents.
- Fanless design, excellent natural heat dissipation achieves zero noise, providing quiet working environment, best choice for indoor rental events.
- Die-cast aluminum with CNC is finished, the dimension tolerance of less than 0.01mm, and module shaping one time, the machining accuracy of + 0.01mm, easy to realize seamless splicing.
- User-friendly locking system, aviation plug and three handles on each cabinet makes disassembly and maintenance easy and convenient. Unique anti-burial design to avoid the patchwork.
- IC MBI5124 is used, high refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
- Alignment hole and location pin design for installation could achieve extreme precision between cabinets, seam splicing is less than 0.05mm.
General Information:
Model No. | TC4.81-I | Curvature Adjustment | Yes | |||
Pitch | 4.81MM | Pixel Density | 43264 pixels/sq.m | |||
Pixel Configuration | 1R1G1B | Pixel Type | SMD2121, Black LED |
Product Parameter:
ITEM | SPECIFICATION |
Module Size | 250*250mm |
Module Resolution | 52*52 |
Cabinet Size | 500*500*75mm |
Cabinet Weight | 8.2kg/pc |
Drive Mode | 1/13 scan, constant current |
IC | MBI5124 |
Brightness | 1500CD/SQ.M(adjustable) |
Refresh Rate | 1920Hz |
Frame Frequency | 50&60Hz |
Grey Scale Level | 65536(adjustable) |
Color Processing Level | 16bit(adjustable) |
Color Temperature | 3200~9300K(adjustable) |
Contrast Ratio | 4000:1 |
Brightness/Color Uniformity | ≥97% |
Single Pixel Brightness Correction | Yes |
Single Color Brightness Correction | Yes |
Viewing Angle | 150°(Horizontal),120°(Vertical) |
Best Viewing Distance | 4~100m |
Protection Level | IP31 |
Power Consumption (Max) | 800W/M2 |
Power Consumption (Avg) | 300W/M2 |
Warranty:
2 years quality guaranteed, necessary design drawing and user manual step by step will be offered to you.
Application:
Widely used in high-end conference, high-end hotel, concert, live on TV, wedding, press conference, ceremony gala, exhibition presentation and commercial advertising and other rental events.
Packing List:
- Flight case, 12pcs cabinets/case,
- User manual x1pcs
- Load file x1pcs
- Cables
- Modules
- LEDs
- Control Cards and other necessary spare parts.
