Large Electronic Outdoor Transparent LED Display / High Brightness LED transparent screen

Large Electronic Outdoor Transparent LED Display / High Brightness LED transparent screen

Product Details:

Place of Origin: China
Brand Name: GBLED
Certification: CE, FCC, ROHS
Model Number: A16-O

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10~20 Working Days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 10000SQ.M/Month
Get Best Price Contact Now

Detail Information

Pixel Pitch: 16mm Pixel Density: 3906 Dots/sq.m
Pixel Type: DIP346 Module Size: 256x256mm
Module Resolution: 16*16 Pixels Cabinet Material: Iron Steel
Protection Level: IP65 Brightness: 8000CD
High Light:

transparent led display screen

,

led transparent screen

Product Description

Large Electronic Outdoor Transparent LED Display / High Brightness LED transparent screen





Application:

Widely used in Advertising media, Concert, TV SHOW, Super mall, Entertainment, School, Government, Trading conversation, Commodity fair, Exhibition, Cinema, News conferences, Meeting room, Airport, Hotel, Station Hall and other Public Places.


Product Features:

  1. High brightness 8000CD ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
  2. High protection grade of front IP65/rear IP54, enables it to be used in any outdoor harsh environment.
  3. High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
  4. Super performance/cost ratio offers you both top notch quality and reasonable price, maximizing the value of your investment.
  5. Aviation plug and quick lock is used, bringing easier cables connection and quicker assembly of cabinets to save time.
  6. Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans’ speed monitoring, three-way voltage monitoring and temperature monitoring etc.
  7. Low power consumption and fast heat dissipation with dual channel heat dissipation



Product Parameter:

ITEM SPECIFICATION
Pixel Pitch 16mm
Pixel Density 3096
Pixel Configuration 1R1G1B
Pixel Type DIP346
Module Size 256*256mm
Module Resolution 16*16
Drive Mode static scan, constant current
IC SM16106SC
Brightness 8000CD/SQ.M(adjustable)
Refresh Rate 3000Hz
Frame Frequency 50&60Hz
Grey Scale Level 65536(adjustable)
Color Temperature 3200~9300K(adjustable)
Contrast Ratio 4000:1
Viewing Angle 100°(Horizontal),45°(Vertical)
Best Viewing Distance 16~100m
Protection Level IP65
Power Consumption (Max) 850W/M2
Power Consumption (Avg) 300W/M2
Input Port DVI Connector (DVI Port)
Input Signal RF, TV, S-VIDIEO, RGB, VGA, DVI, HDTV, PAL, YUT, YC, COMPOSTITION





Packing List:

  • Wooden case, 4pcs cabinets/case,
  • User manual *1pcs
  • Load file *1pcs
  • Cables
  • Modules
  • LEDs
  • Control Cards and other necessary spare parts.

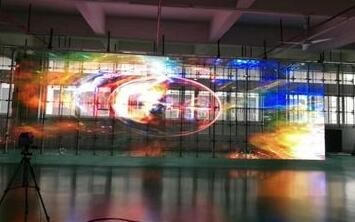

Product Pictures:
Large Electronic Outdoor Transparent LED Display / High Brightness LED transparent screen 0



Warranty:

2 years quality guaranteed, necessary design drawing and user manual step by step will be offered to you.
