Product Details:

Place of Origin: Shenzhen China
Brand Name: GBLED
Certification: 3C/GMC/ISO9001/CCPC
Model Number: P4.81

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case / Flight Case
Delivery Time: 7-15 Working Days
Payment Terms: T/T, L/C
Supply Ability: >300sqm/month
Get Best Price Contact Now

Detail Information

Product Name: LED Display Application: Indoor
Size Of Panel: 250x250 Resolution: 104 X104
Brightness: 1200cm/d Feature: Refresh Rate≥800.
Standard: 3C/GMC/ISO9001/CCPC Pixel Density: 43244
High Light:

stage background led screen

,

led stage curtain screen

Product Description



Stage Background LED Screen Stage LED Display For Concert / Wedding Party





Description



1.  More easy to carry and more light .

2.  Easy to Install and disassembly.

3.  Lower maintenance cost .

4.  Combined with the control system which has more than 14bit processing ,effecting a higher gray level.  5.  Red,green and blue LED chips incorporated encapsulation ,better perspective. Strong adaption to environment.





specifications



1.  Indoor led Display technical parameter

Pixel Density(pixel/㎡)

43244

White Balance Brightness (cd/㎡)

≥1200(adjustable)

Max Power Consumption

300W/cabinet

Average Power Consumption

150W/cabinet

Color Temperature

3200-9300(adjustable)

View Angle

Horizontal 110°;Vertical 110°

Best Viewing Distance(m)

5m—80m

Display Work Method

1/13 scan

Digital Processing

14 bit

Gray Scale

65536 levels per color

Refresh Frequency (Hz)

≥800

Input Signal

Video: PAL/NTSC  Option: VGA , Video , DVD,TV,

SDI.HDMI etc

Waterproof

No

Working Temperature(ºC)

-20~+45

Humidity(RH)

10% - 80%

Stored Temperature (ºC)

-30~+60

Lifetime (50%Brightness)(Hours)

≥100,000

Input Voltage(VAC)

AC 220(or 110V)

Input Power Frequency(Hertz)

50 to 60

Data Connection

Super CAT6 Cable or Fiber

Operating System

Windows(98/2000/XP/Vista)

Blind Spot Rate

<0.00001

Control Distance

CAT6 cable:150 meters;  Single Fiber: Up To 10 Kilometers

Panel Input Format (With Video Processor)

VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV

Earth Leakage Current(mA)

<2

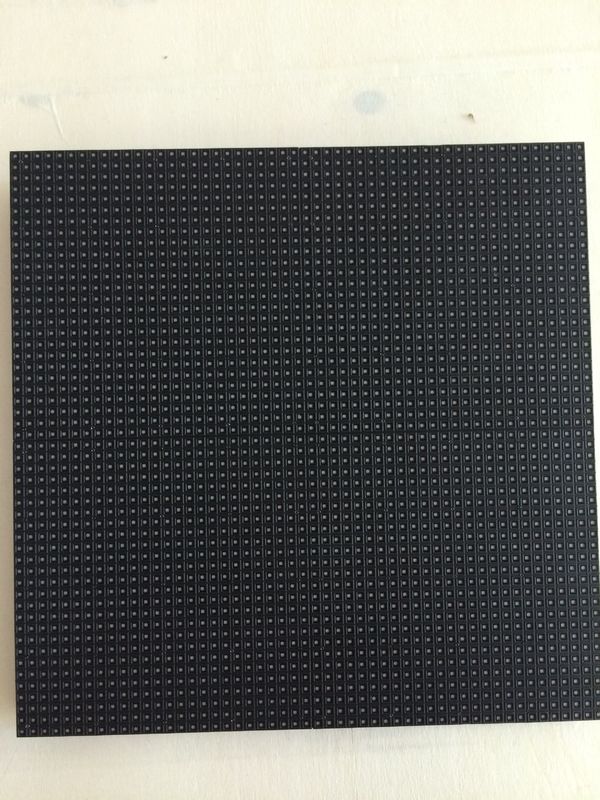

2.  Indoor LED Display Module

Pixel Configuration

SMD2121

Pixel Pitch 4.81 mm
Module Resolution

52x52

      Module Size(W*H)

250mm x 250mm

Weigth Per Module

0.52kg

Max Power Consumption

36 w


3.  Indoor LED Display Cabinet

Cabinet Size(W*H)

500mm × 500mm

Module Qty

4 pcs

   Cabinet Resolution

104 x 104

Cabinet Area

0.25

Weight Of One Cabinet

6.5 kg

Cabinet Pixel

43244

Cabinet Flatness

<0.2/㎡

Cabinet Material

Aluminum-alloy Cabinet





Applications



This Stage LED Display Are Very Popular In Commercial Advertising Field .  such as Community, bus station, schools, telecommunications, customs, stadiums, studio,shopping malls, airports, etc;



competitive advantage



1.  Good Sevice , 24/7 online support service.

2.  Good Quality For Every LED Display Product.

3.  High Quality Driving IC .

4.  Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.

5.  Two Years  Maintenance Service With  Free.
