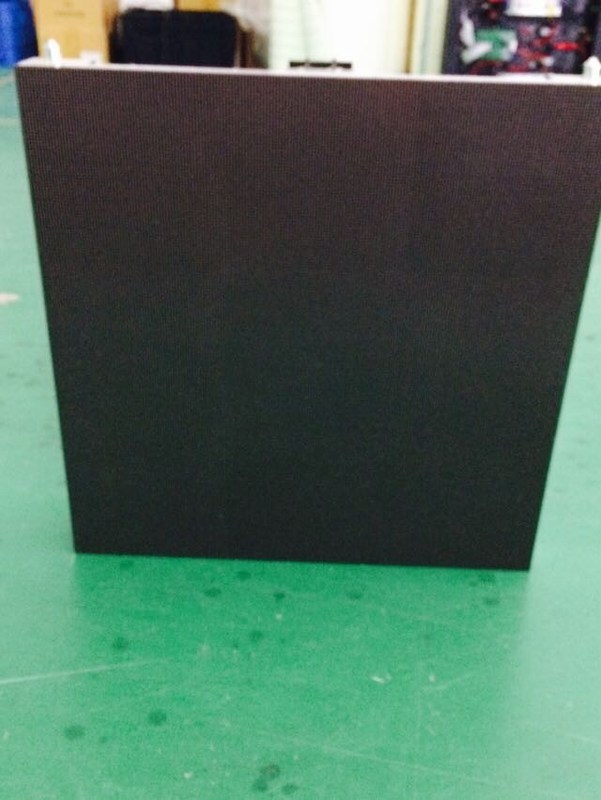

Small Pixel Stage Rental LED Display , White SMD LED Screen For Stage
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | GBLED |
| Certification: | 3C/GMC/ISO9001 |
| Model Number: | P3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case / Flight Case |
| Delivery Time: | 10-20 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | >250sqm/month |
|
Detail Information |
|||
| Product Name: | Indoor P3.0 Mm High Refresh Rate Led Display Cabinet With Nova Or Linsn Control System | Application: | Indoor |
|---|---|---|---|
| Size Of Panel: | 240x240 | Resolution: | 160x160 |
| Brightness: | 1200cm/d | Refresh Frequency: | ≥1200. |
| Type: | Rental | ||
| High Light: | led stage curtain screen,led stage display screen |
||
Product Description
Small Pixel Indoor Stage LED Display , White SMD LED Screen For Stage
Description
1) Low cost high quality
2) Ultra Light
3) Aluminum Die Casting Cabinet
4) White SMD
5) High Brightness
specifications
1. Indoor led Display technical parameter
|
Pixel Density(pixel/㎡) |
111111 |
|
White Balance Brightness (cd/㎡) |
≥1200(adjustable) |
|
Max Power Consumption |
300W/cabinet |
|
Average Power Consumption |
150W/cabinet |
|
Color Temperature |
3200-9300(adjustable) |
|
View Angle |
Horizontal 110°；Vertical 80° |
|
Best Viewing Distance(m) |
3m—60m |
|
Display Work Method |
1/6 scan |
|
Digital Processing |
14 bit |
|
Gray Scale |
65536 levels per color |
|
Refresh Frequency (Hz) |
≥1200 |
|
Input Signal |
Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc |
|
Waterproof |
No |
|
Working Temperature(ºC) |
-20～+45 |
|
Humidity(RH) |
10% - 80% |
|
Stored Temperature (ºC) |
-30～+60 |
|
Lifetime (50%Brightness)(Hours) |
≥100,000 |
|
Input Voltage(VAC) |
AC 220(or 110V) |
|
Input Power Frequency(Hertz) |
50 to 60 |
|
Data Connection |
Super CAT6 Cable or Fiber |
|
Operating System |
Windows(98/2000/XP/Vista) |
|
Blind Spot Rate |
＜0.00001 |
|
Control Distance |
CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
|
Panel Input Format (With Video Processor) |
VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
|
Earth Leakage Current(mA) |
＜2 |
|
Pixel Configuration |
SMD2121 |
Pixel Pitch | 3 mm |
| Module Resolution |
80x80 |
Module Size(W*H) |
240mm x 240mm |
|
Weigth Per Module |
0.47kg |
Max Power Consumption |
75w |
3. Indoor LED Display Cabinet
|
Cabinet Size(W*H) |
480mm × 480mm |
Module Qty |
4 pcs |
|
Cabinet Resolution |
160 x 160 |
Cabinet Area |
0.2304㎡ |
|
Weight Of One Cabinet |
7.8 kg |
Cabinet Pixel |
111111 |
|
Cabinet Flatness |
＜0.2/㎡ |
Cabinet Material |
Die Casting Cabinet |
Applications
Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
competitive advantage
1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
