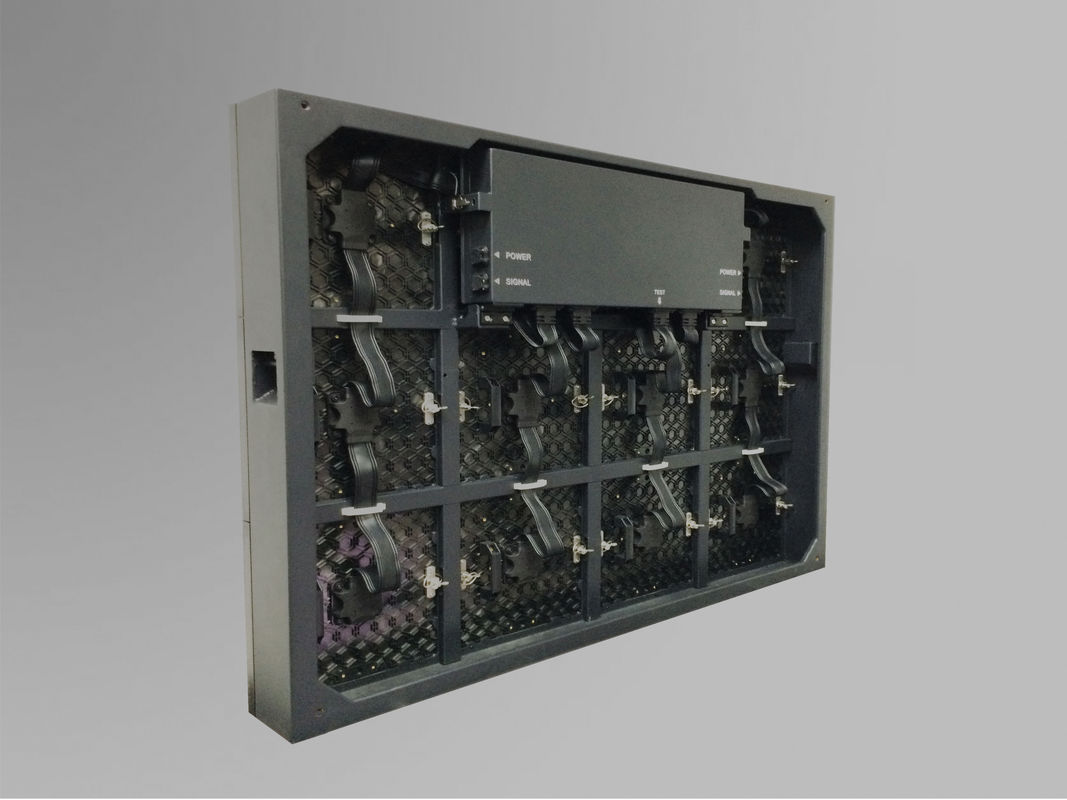

• LED Module P10 1RGB LED Billboards Advertising Wall 320mm x 320mm
LED Module P10 1RGB LED Billboards Advertising Wall 320mm x 320mm

LED Module P10 1RGB LED Billboards Advertising Wall 320mm x 320mm

Product Details:

Place of Origin: China
Brand Name: GBLED
Certification: CE/RoHS/FCC/ETL etc.
Model Number: E1000D

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case or wooden box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sqms per month
Get Best Price Contact Now

Detail Information

Pixel Pitch (mm): 10.0 Configuration: DIP346
Module Dimension (mm): 320 X 320 Module Weight(kg): 2.08
Refresh Frequency(Hz): 1920 Gray Scale(bit): 14
High Light:

stadium led screens

,

stadium display screen

Product Description

Low Price Stadium LED Screen Full Color Board With High Brightness



Features:
1. High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system
2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system
3. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof  your LED display screen's investment.
4. Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
6. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.


Specification:

Model E1000D
Pixel pitch (mm) 10.0
Configuration DIP346
Module dimension (mm) 320 x 320
Module weight(kg) 2.08
Panel dimension(mm) 1280x960x120
Panel weight(kg) 50
Pixel density(dots/㎡) 10000
Flatness error(mm) ≤0.1
Viewing angle(°) 140/100(Horizontal/Vertical)
Brightness(cd/㎡) >7500
Contrast 4000:1
Repetition frequency(Hz) 50/60
Refresh frequency(Hz) 1920
Gray scale(bit) 14
Ave. power(W/㎡) 200
Max power(W/㎡) 698
Working temp./humidity -20~65℃/10%~90%RH
Storing temp./humidity -20~65℃/10%~90%RH
Protection IP65/IP54
Scanning 1/4
Power requirements AC90~264V, 47~63Hz
Signal Transmission Distance CAT cable:<100m;Single mode fiber:<10km
Installation type Fix
Life time(hrs) 100,000
Certificate CCC/TUV-CE/ETL, etc.




















Service:
1). Your inquiry related to our products or prices will be replied in 24hrs.
2). Well-trained and experienced staffs to answer all your enquires in fluent English .
3). OEM&ODM, any your customized screen we can help you to design and put into product.

After-Sale Service
1. Two year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in

48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual,

easy maintenance manual and control system software CD and so on

FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory.

2.Q:How to get the price list?
A:Price list Pls Email /call /fax to us with you like items name together with you details(name,details address

,telephone,etc),we will send to you as soon as possible.

3.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.which methods to be used is based on the

 weight and size of the package, and with consideration of customer's requirements. by sea:20-40 days; by air:5-10 days ;by express:3-6d ays

4.Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder in Guangzhou, you can let your forwarder ship the products for you.

And then you will no need to pay the freight to us.

5.Q:What's the Payment method?
A:T/T,Western Union or Payapl, 30% deposit before production, the balance before delivery. We suggest you transfer the full price at one time.

Cause there is bank process fee, it would be a lot of money if you make twice transfer.

6.Q:How to Place an order?
A:Please kindly send us you order by email or Fax,we will confirm the PI with you .we wish to know the below:

Delivery information-company name,details address,phone/fax number,destination,transportation way,Product information:item

 number,size,quantity,logo,etc
