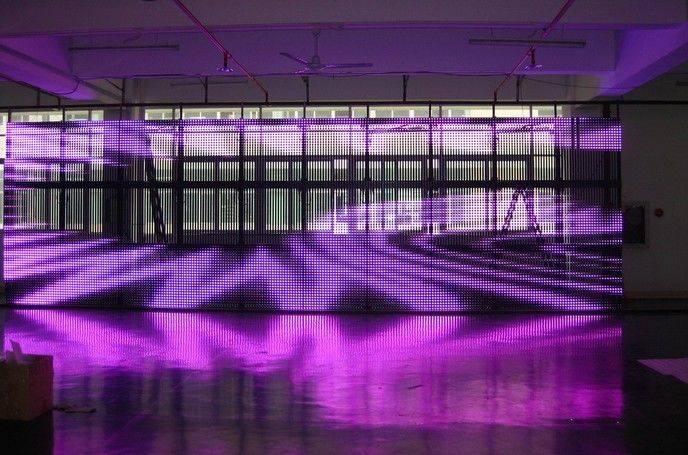

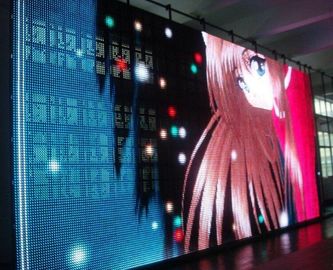

Indoor P18 Transparent Glass LED Screen Stage Background With 6944 Pixel Density

Indoor P18 Transparent Glass LED Screen Stage Background With 6944 Pixel Density

    • Indoor P18 Transparent Glass LED Screen Stage Background With 6944 Pixel Density
    • Indoor P18 Transparent Glass LED Screen Stage Background With 6944 Pixel Density
    • Indoor P18 Transparent Glass LED Screen Stage Background With 6944 Pixel Density
    • Indoor P18 Transparent Glass LED Screen Stage Background With 6944 Pixel Density
    • Indoor P18 Transparent Glass LED Screen Stage Background With 6944 Pixel Density
  • Indoor P18 Transparent Glass LED Screen Stage Background With 6944 Pixel Density

    Product Details:

    Place of Origin: Shenzhen China
    Brand Name: GBLED
    Certification: 3C/GMC/ISO9001/CCPC
    Model Number: P18.0mm

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Wooden Case/ Flight Case
    Delivery Time: 7-15 Working Days
    Payment Terms: L/C, T/T
    Supply Ability: >500sqm/month
    Contact Now
    Detailed Product Description
    Product Name: Indoor Background High Brightness P18.0mm LED Led Curtain Display Screen Pixel Pitch: 18mm
    Size Of Panel: 480 X160 Brightness: 6000
    Usage: Advertising Pixel Density: 6944
    Weight: 46 KG For Each Cabinet

    Indoor P18 Transparent Glass LED Screen Stage Background With 6944 Pixel Density

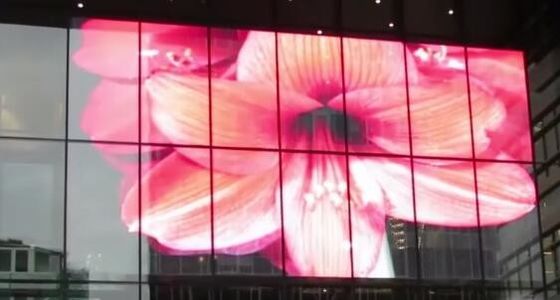

    Applications

    The RGB LED Display Are Very Popular In Outdoor Field. This Type Screen
    Are Popular Used Outdoor Shopping Center ,Outdoor Building,Foodball Field,crossroad,
    highway,Concert,airport etc;


    competitive advantage


    1. Good Sevice , 24/7 online support service.
    2. Good Quality For Every LED Display Product.
    3. Good Price.
    4. High Quality Driving IC .
    5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
    6. Two Years Maintenance Service With Free.




    Description

    Panel input format(with video processor), such as ,VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV  .  There are also interfaces for Sound signal and video signal.  The gray level si 65536 level, and the brightness, contrast,saturation, chroma can be adjusted by manual and sensor.  Show all sort of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously or asynchronously.   Can be used outdoor in all kinds of circumstance, and excellent capability of antisepsis, waterproof.  More faster to assemble or disassemble it without any tool.





    1. The P18  LED

    curtain display features light weight and very thin body design. The cabinet weight is only 5.2kg.
    2. The anti-reflective masking ensures clearer and more beautiful images.
    3. As the display screen is flexible, the maintenance and installation is very convenient.
    4. The steel materials with high thickness provide the cabinets with high structural stability. The cabinets won't be deformed even after repeated installation.
    5. According to clients' demands, we can offer curtain LED displays with IP67 protection grade for both front and back sides.
    6. Constructed using superior quality materials, the product can be utilized in areas with different temperature conditions. In addition to standard products, we can also offer products supporting working temperature from -30℃ to 60℃.
    7. We provide our products with 2-year warranty and lifetime maintenance, and we can also offer 24/7 service.





    Technical Specifications



    Cabinet size

    600mm*600mm

    Density of pixel

    2844 dots/sqm

    Pixel composition

    1Red, 1Green, 1Blue

    Supply voltage

    AC 220V/50HZ or AC110V/60HZ

    Average power consumption

    300 w/sqm

    Pixel pitch

    18.75mm

    Luminance of white balance

    ≥5800 cd/sqm

    View angle(H/V)

    110°/90°

    Gray scale

    display≥16.7 M color(synchronized)

    Driving method

    Static constant driving

    Refresh frequency

    >400 Hz/s

    Frame frequency

    >60 Hz/s

    View distance

    >18m

    Operating temperature

    -20~60 °C

    Mean Time between failures

    >100, 000 hours

    Working life

    > 1, 000, 000 hours

    Malfunction dot rate

    <0.0001

    Display content

    Text, Graphics, Logo, Animation, live video, etc.

    Communication distance

    <100m (>100m optical fiber)

    Cabinet structure

    Steel

    Control system

    LINSN

    Connection method

    Synchronized Computer(windows XP, vista), TV, DVD player, VCD player, VCR, etc.

    LED Encapsulation

    SMD 5050 (3 in 1)

    Waterproof Grade

    IP65









    Our company

    Our product quality management is strictly adhering to the ISO9001: 2008 certifications system and 7S management standard, to seek for greater perfection, which exerts profound influence on standardization of LED industry.GBLED is a national new high-tech enterprise,which owns number of national patents and has been cited as "Shenzhen Flat Panel Display Industry Association", "Member of Shenzhen SME Development Association", "Member of Semi-conductor and Lighting Promotion Association", "Member of Shenzhen Electronic Chamber of Commerce", "Member of China Optics and Optoelectronics Industry Association and LED Display Applications Branch Association", "Certified Supplier of Made-in-China" etc.

    With an outstanding business performance and good social reputation,We has won respect from various circles of society, and acquired the "2009-2010 Excellent LED Display Application Engineering", "China Well-known Enterprise", "AAA Quality, Service and Prestige Unit", "China Top 100 Enterprise", "Guangdong China Top 10 Enterprise", "Shenzhen Well known Brand Enterprise", "National New High-tech Enterprise" etc.
    Indoor P18 Transparent Glass LED Screen Stage Background With 6944 Pixel Density
