Perimeter Stadium P8 Advertising led screen panels Boards At Football Grounds
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | GBLED |
| Certification: | CE,ROHS |
| Model Number: | FP8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case or flight case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union |
| Supply Ability: | 1000 sqm/per month |
|
Detail Information |
|||
| Pixel Pitch: | 8mm | Pixel Package: | SMD3535 |
|---|---|---|---|
| Cabinet Material: | Iron Or Aluminum | Cabinet Weight: | 6000nit |
| Driving Mode: | 1/4 | Refresh Rate: | 960~3840Hz |
| Input Maximum Power: | 900W/m2 | Actual Use Power: | 300-450W/m2 |
| High Light: | stadium led screens,stadium advertising boards |
||
Product Description
Perimeter Stadium P8 Advertising led screen panels Boards At Football Grounds
Description:
Adjustable in angles: stadium screen can be set in different viewing angle suit to camera shooting ,and audience needs angle:60︒65︒70︒ 75︒80︒85︒90︒.
Support various media format, from words, images, to video. More clear, more vivid, higher viewing experience.
The picture content chaninging ,can play video ,picture ,text etc formats,more colorful ,high definition ,long viewing distance.
Adopting control system, power and signal bakcup technology, improving site disiplay performance and protecting advertisers benifits.

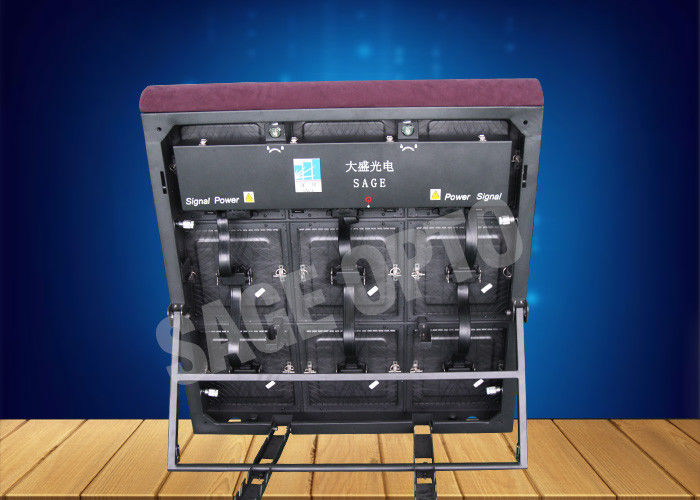

Humanization design: Fast lock design on the side, improves screen smoothness and saves assembling, programming labor. Supporting Structure desing reduces the spaces, and can be get into the cabinet after folding.
Package:
Flight case package prevents from moisture and dust ,save time and labor .Stored in different color cases makes it more easy to install.
Service and Support:
Free Training:
In order to let our customers control the system skillfully, and easily handle some basic malfunction or system failure in the operation. We offer our users a training course in the following two steps:
1. Factory training with the follow course
- Basic computer knowledge
- Basic LED knowledge
- LED hardware structure and working principle
- Screen programming and all the software demonstration
- System daily maintenance and safety regulations
2. On-site training
- The installation of system software
- The function of apparatus in system and the method of the right usage
- The inspection, adjustment and test of apparatus and the measurement tools common use and instrumental usage
- The apparatus protection instructions
- Ordinary software & hardware malfunction disposal
- The maintenance of apparatus.
Specifications:
| Product Series | FP8 |
| Pixel Pitch | 8mm |
| Pixel Package | SMD3535 |
| LED Configuration | 1R1G1B |
| Pixel Density | 15625 Pixels/㎡ |
| Module Size | 256 x 128mm |
| Module Resolution | 32 x 16 dots |
| Cabinet Size (W x H x D) | 768 x 768 x 150mm |
| Cabinet Resolution | 96 x 96 dots |
| Cabinet Material | Iron / Aluminum |
| Cabinet Weight | ＜ 35kg/㎡ |
| Brightness | 6000 nits |
| Driving Mode | 1/4 |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-120°/ V-120° |
| Refresh Rate | 960-3840Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 billion |
| Maximum Power | ≤900 W/㎡ |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP65 |
