Ceiling Seamless Splice Stadium LED Display , commercial LED Cube Display P6
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | GBLED |
| Certification: | CE,ROHS |
| Model Number: | SD6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case or flight case |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union |
| Supply Ability: | 1000 sqm/per month |
|
Detail Information |
|||
| Pixel Pitch: | 6mm | Pixel Package: | SMD3528 |
|---|---|---|---|
| Density: | 27777 Dots | Average Powe: | 130-200W/㎡ |
| Cabinet Material: | Iron Or Aluminum | Cabinet Weight: | ≤35kg/㎡ |
| Brightness: | 1500 Cd/m2 | IP Grade: | IP40/IP43 |
| High Light: | stadium advertising boards,stadium display screen |
||
Product Description

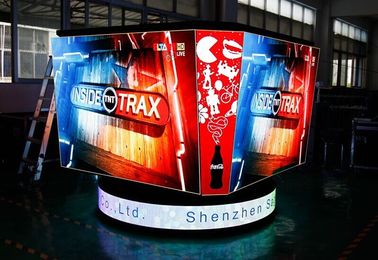

Ceiling Seamless Splice Stadium LED Display , commercial LED Cube Display P6
Descriptions:
The main screen: (Square Area) Live show, close-up shot, playback, competition information broadcast, advertisement and other switching varieties.
The secondary screen: (Trapezoidal Area) Mainly for advertisement, can also combined into a whole screen with the main square screen.
Cylindrical screen: Generally used for advertising, text messages, etc., can use be loop playback and partition play.
Specifications:
| Product Series | SD6 |
| Pixel Pitch | 6mm |
| Pixel Package | SMD3528 |
| LED Configuration | 1R1G1B |
| Pixel Density | 27777Pixels/㎡ |
| Cabinet Material | Iron / Aluminum |
| Cabinet Weight | ＜ 35kg/㎡ |
| Brightness | 1500 nits |
| Driving Mode | 1/8 |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-140°/ V-140° |
| Refresh Rate | 960-2880Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 8192~65536 |
| Number of Color | 1 billion |
| Maximum Power | ≤400 W/㎡ |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP43 |
Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.
Spare parts: necessary spare parts are provided together with products to customers.
Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
Free on-site service for hardware related issues .
Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
Sage’s time & scoring system is a set of portable information release system which applied in all kinds of ball games. The designated referee or relevant staff in the venue operate the system, control the match rhythm and collect statistical data, and the operating results will be displayed on the LED screen.The system can automatically get the statistic data for the match referee and competition analysis.
The fence panel in the stadium is a kind of unconventional ratio LED display, such as 50:1, 100:1,200:1 or 300:1, it is unfavorable to use the control system suit for the conventional ratio as 4:3 or 16:9.Our R&D team have dedicated the specialized control system that one computer control the LED screen with 320 meters long and 1 meter high.
Users only need to make video or pictures according to the actual size, and don't need to cut the video or pictures, so as to avoid the sync problem, reduce the workload and increase the visual effect of display screen.
For the LED display with more than 320 meters width, we can use more computers to realize. Theoretically, the control system can realize the display of infinite pixels.
