10mm Football Stadium LED Screen Advertising led Boards Full Color Led Video Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE/RoHS/FCC/ETL etc. |
| Model Number: | E1000D |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case or wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 sqms per month |
|
Detail Information |
|||
| Pixel Pitch (mm): | 10.0 | Configuration: | DIP346 |
|---|---|---|---|
| Module Dimension (mm): | 320 X 320 | Module Weight(kg): | 2.08 |
| Ave. Power(W/㎡): | 200 | Max Power(W/㎡): | 698 |
| High Light: | stadium led screens,stadium display screen |
||
Product Description

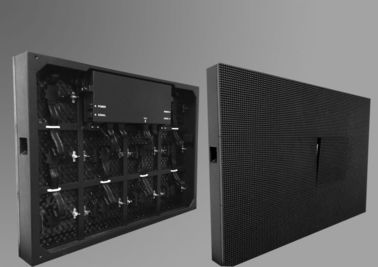

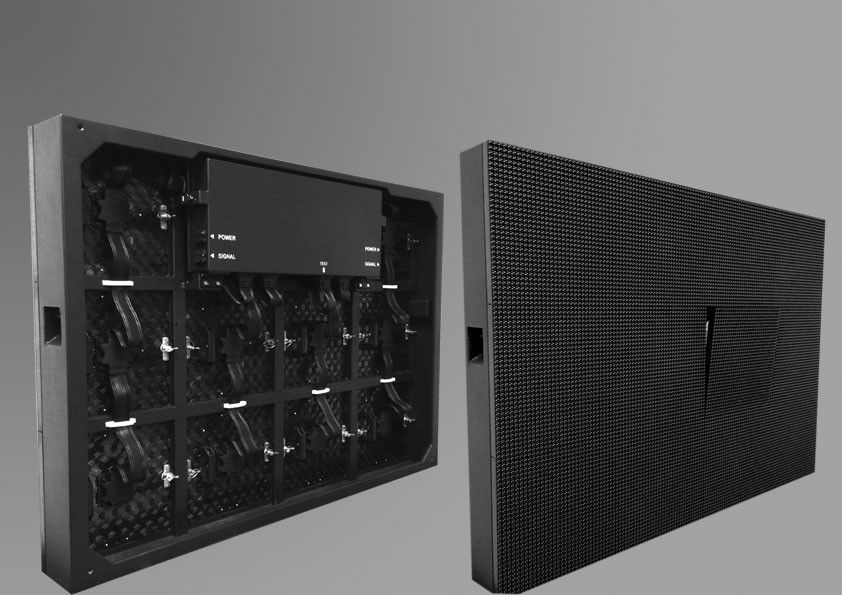

High Difinition Stadium LED Screen Display 10mm Football Pitch
Features:
1. High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system
2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system
3. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen's investment.
4. Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
Specification:
| Model | E1000D |
| Pixel pitch (mm) | 10.0 |
| Configuration | DIP346 |
| Module dimension (mm) | 320 x 320 |
| Module weight(kg) | 2.08 |
| Panel dimension(mm) | 1280x960x120 |
| Panel weight(kg) | 50 |
| Pixel density(dots/㎡) | 10000 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 140/100(Horizontal/Vertical) |
| Brightness(cd/㎡) | >7500 |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | 1920 |
| Gray scale(bit) | 14 |
| Ave. power(W/㎡) | 200 |
| Max power(W/㎡) | 698 |
| Working temp./humidity | -20~65℃/10%~90%RH |
| Storing temp./humidity | -20~65℃/10%~90%RH |
| Protection | IP65/IP54 |
| Scanning | 1/4 |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance | CAT cable:<100m;Single mode fiber:<10km |
| Installation type | Fix |
| Life time(hrs) | 100,000 |
| Certificate | CCC/TUV-CE/ETL, etc. |
Service:
1).Your inquiry related to our products or prices will be replied in 24hrs.
2).Well-trained and experienced staffs to answer all your enquires in fluent English .
After-Sale Service
1. Two year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in
48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
FAQ:
1. Q:Are you a factory or trading company?
A:We are a factory.
2.Q:How to get the price list?
A:Price list Pls Email /call /fax to us with you like items name together with you details(name,details address
,telephone,etc),we will send to you as soon as possible.
3.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.which methods to be used is based on the
weight and size of the package, and with consideration of customer's requirements. by sea:20-40 days; by air:5-10 days ;by express:3-6d ays
4.Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder in Guangzhou, you can let your forwarder ship the products for you
. And then you will no need to pay the freight to us.
5.Q:What's the Payment method?
A:T/T,Western Union or Payapl, 30% deposit before production, the balance before delivery. We suggest you transfer the full price at one time.
Cause there is bank process fee, it would be a lot of money if you make twice transfer.
