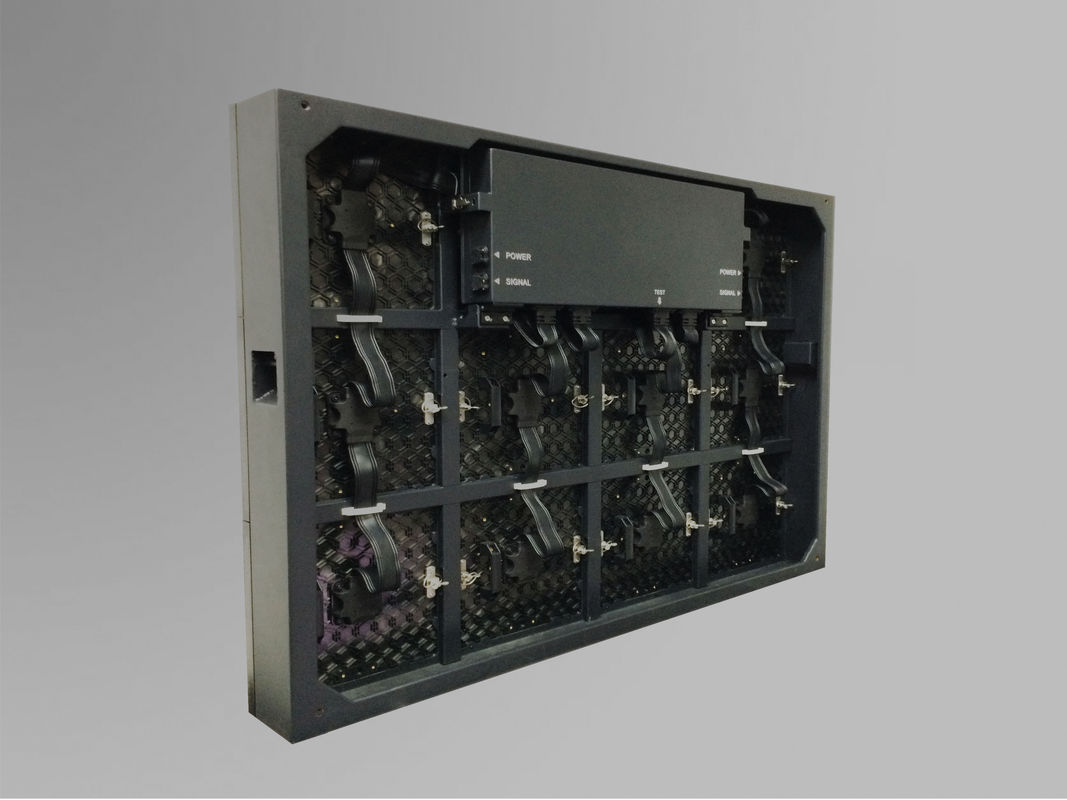

• HD Pixel Pitch 10 Stadium LED Screen Outdoor LED Advertisment Display , CE Approval
HD Pixel Pitch 10 Stadium LED Screen Outdoor LED Advertisment Display , CE Approval

HD Pixel Pitch 10 Stadium LED Screen Outdoor LED Advertisment Display , CE Approval

Product Details:

Place of Origin: China
Brand Name: GBLED
Certification: CE/RoHS/FCC/ETL etc.
Model Number: E1000D

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case or wooden box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sqms per month
Get Best Price Contact Now

Detail Information

Pixel Pitch (mm): 10.0 Configuration: DIP346
Module Dimension (mm): 320 X 320 Module Weight(kg): 2.08
Working Temp./humidity: -20~65℃/10%~90%RH Storing Temp./humidity: -20~65℃/10%~90%RH
High Light:

stadium led screens


stadium advertising boards

Product Description

Large Viewing Angle Stadium LED Screen Display For Outdoor Advertisments


1. Professional lock design makes seamless connection available;

2. High brightness;

3. Information source can be camera, video, VCD, DVD, LD, TV and so on; Clear picture without flicker and distortion;

4. Black LED and light absorbing mask patent increase the display effect ;

5. Unique thermal structure with aluminum plate, stable and reliable;

6. Light, thin and intensive design offers more space to be creative ;

7. Accurate, fast and flexible installation positioning can take place in different area;

8. High definition guarantee excellent performance;


Model E1000D
Pixel pitch (mm) 10.0
Configuration DIP346
Module dimension (mm) 320 x 320
Module weight(kg) 2.08
Panel dimension(mm) 1280x960x120
Panel weight(kg) 50
Pixel density(dots/㎡) 10000
Flatness error(mm) ≤0.1
Viewing angle(°) 140/100(Horizontal/Vertical)
Brightness(cd/㎡) >7500
Contrast 4000:1
Repetition frequency(Hz) 50/60
Refresh frequency(Hz) 1920
Gray scale(bit) 14
Ave. power(W/㎡) 200
Max power(W/㎡) 698
Working temp./humidity -20~65℃/10%~90%RH
Storing temp./humidity -20~65℃/10%~90%RH
Protection IP65/IP54
Scanning 1/4
Power requirements AC90~264V, 47~63Hz
Signal Transmission Distance CAT cable:<100m;Single mode fiber:<10km
Installation type Fix
Life time(hrs) 100,000
Certificate CCC/TUV-CE/ETL, etc.



1) Price Advantage: we have the best competitive price at the market; also have the same even better quality;

2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps;

3) Quality advantage: From material to finished product, from design to produce, we control all steps that are the guarantee of the quality and reliability;

4) Service advantage: Better service at same situation, better cooperation at same service.

usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment, etc.

5) Professional display manufacturer, full set of production equipment

Quality Control: 100% of the lamps will be tested and keep lighting for72 hours to test its quality reliability , and we will also test its temperature after72 hours’ lighting.

Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.

After-Sale Service
1. Two year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in

48 hours.
3. Customer satisfaction tracking report.

A.  What is LED?

LED is the abbreviation leds (LIGHT EMITTING DIODE), it’s emit visible wavelengths led in the led video display industry.

B. what is a pixel and pixel pitch?

The pixel is the smallest unit of light-emitting, consists of red, green and blue colors. The same as ordinary computer monitors.

Pixel pitch refers to the center of the distance between two adjacent pixels.
