High Brightness Advertising Led Display Screen IP65 / IP54 High Contrast Ratio
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE/RoHS/FCC/ETL etc. |
| Model Number: | E1000D |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case or wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 sqms per month |
|
Detail Information |
|||
| Pixel Pitch (mm): | 10.0 | Configuration: | DIP346 |
|---|---|---|---|
| Module Dimension (mm): | 320 X 320 | Module Weight(kg): | 2.08 |
| Protection: | IP65/IP54 | Scanning: | 1/4 |
| High Light: | stadium led screens,stadium advertising boards |
||
Product Description

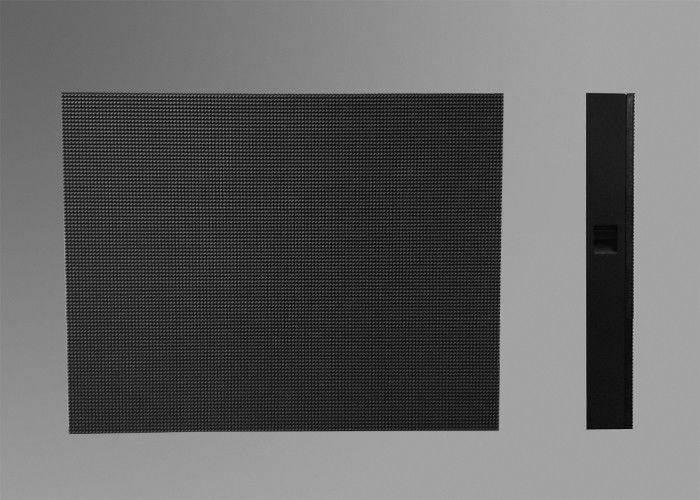

High Brightness Stadium LED Screen 10mm With Light Weight Cabinet
Features:
1. Professional lock design makes seamless connection available;
2. High brightness;
3. Information source can be camera, video, VCD, DVD, LD, TV and so on; Clear picture without flicker and distortion;
4. Black LED and light absorbing mask patent increase the display effect ;
5. Unique thermal structure with aluminum plate, stable and reliable;
6. Light, thin and intensive design offers more space to be creative ;
7. Accurate, fast and flexible installation positioning can take place in different area;
Specification:
| Model | E1000D |
| Pixel pitch (mm) | 10.0 |
| Configuration | DIP346 |
| Module dimension (mm) | 320 x 320 |
| Module weight(kg) | 2.08 |
| Panel dimension(mm) | 1280x960x120 |
| Panel weight(kg) | 50 |
| Pixel density(dots/㎡) | 10000 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 140/100(Horizontal/Vertical) |
| Brightness(cd/㎡) | >7500 |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | 1920 |
| Gray scale(bit) | 14 |
| Ave. power(W/㎡) | 200 |
| Max power(W/㎡) | 698 |
| Working temp./humidity | -20~65℃/10%~90%RH |
| Storing temp./humidity | -20~65℃/10%~90%RH |
| Protection | IP65/IP54 |
| Scanning | 1/4 |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance | CAT cable:<100m;Single mode fiber:<10km |
| Installation type | Fix |
| Life time(hrs) | 100,000 |
| Certificate | CCC/TUV-CE/ETL, etc. |
Advantage:
1. Weather resistance:
IP65 rating delivers best waterproof effect that ensures our product's stable broadcasting in harshest weather
condition.
2. World-class image quality :
Strict system control and pixel to pixel correction make the image smooth and uniformity.
3. System flexibility:
Able to show a variety of content of video, animation, graphic and so on.
4. Service facility:
Modular design makes module individual and can fix easily without affecting others.
After-Sale Service
1. Two year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in
48 hours.
Application:
Mainly for outdoor advertising, information publishing, journalism and communication in some places, such
as cultural square, traffic arteries, stations, terminals, information centers, entertainment venues, shopping,
centers, commercial city and etc.
