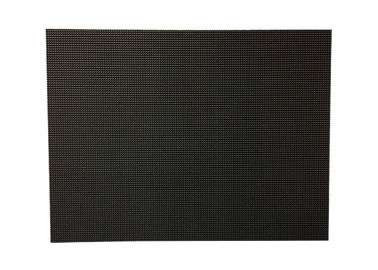

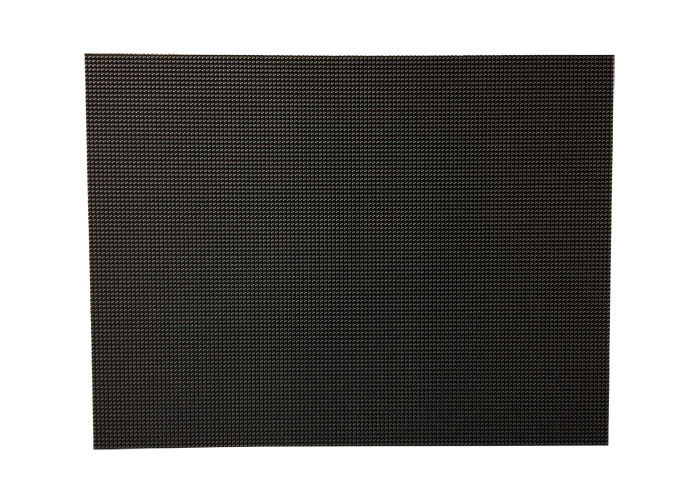

• High Resolution Stadium LED Display P10 Full Color Led Screen DIP346
High Resolution Stadium LED Display P10 Full Color Led Screen DIP346

High Resolution Stadium LED Display P10 Full Color Led Screen DIP346

Product Details:

Place of Origin: China
Brand Name: GBLED
Certification: CE/RoHS/FCC/ETL etc.
Model Number: E1000D

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case or wooden box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sqms per month
Get Best Price Contact Now

Detail Information

Pixel Pitch (mm): 10.0 Configuration: DIP346
Gray Scale(bit): 14 Scanning: 1/4
Panel Dimension(mm): 1280x960x120 Flatness Error(mm): ≤0.1
High Light:

stadium led screens

,

stadium display screen

Product Description

High Resolution Stadium LED Display 10mm With Light Weight Cabinet
 Features:

1. Wide application field & short ROI time:
commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
5. Long-term Brightness:
7000-nit brightness (for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
6. Easy Installation & Using:
easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system


Specification:

Model E1000D
Pixel pitch (mm) 10.0
Configuration DIP346
Module dimension (mm) 320 x 320
Module weight(kg) 2.08
Panel dimension(mm) 1280x960x120
Panel weight(kg) 50
Pixel density(dots/㎡) 10000
Flatness error(mm) ≤0.1
Viewing angle(°) 140/100(Horizontal/Vertical)
Brightness(cd/㎡) >7500
Contrast 4000:1
Repetition frequency(Hz) 50/60
Refresh frequency(Hz) 1920
Gray scale(bit) 14
Ave. power(W/㎡) 200
Max power(W/㎡) 698
Working temp./humidity -20~65℃/10%~90%RH
Storing temp./humidity -20~65℃/10%~90%RH
Protection IP65/IP54
Scanning 1/4
Power requirements AC90~264V, 47~63Hz
Signal Transmission Distance CAT cable:<100m;Single mode fiber:<10km
Installation type Fix
Life time(hrs) 100,000
Certificate CCC/TUV-CE/ETL, etc.






















Function:
1. Show all kinds of word, text, graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other formats with your PC synchronously.

2. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI, MOV, MPG, etc.We have three display modes as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
3. 10 BIT grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chromic can be adjusted by manual and sensor, whose scope is 256 grade


Advantage:
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under direct sunlight.
2) Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.
3) The brightness can be adjustable to meet the need of changing environment.
4) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizon.
5) Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .

6) Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it’s easy to operate the system.

Service
1. The price depends on the quantity.We can offer you the best competitive price with the same even better quality.
2. Good  after sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
3. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
4. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
5. Help you design OEM&ODM or any your customized lightings and put into production.
6. Distributorship are offered for your unique design and some our current models

After-Sale Service
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.

Applications:

The stadium led displays are widely used in the football field, basketball court , swimming center and diving center.

1.  Show function(advertising, such as Nike, Coca cola,etc)

2.  Function of time and score(live showing the score)

3.  Information processing function
4.  Emergency treatment function
