Pixel pitch 10mm Stadium LED Screen DIP346 Large Viewing Angle 10000 Dts/㎡
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE/RoHS/FCC/ETL etc. |
| Model Number: | E1000D |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case or wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 sqms per month |
|
Detail Information |
|||
| Pixel Pitch (mm): | 10.0 | Configuration: | DIP346 |
|---|---|---|---|
| Gray Scale(bit): | 14 | Scanning: | 1/4 |
| Pixel Density(dots/㎡): | 10000 | Protection: | IP65/IP54 |
| High Light: | stadium led screens,stadium display screen |
||
Product Description

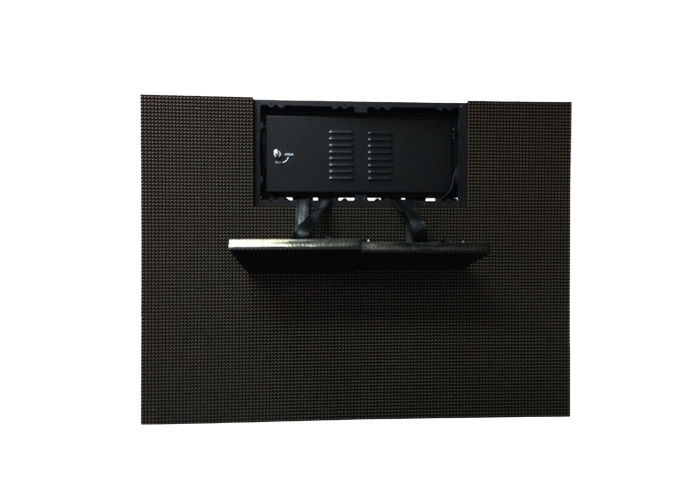

Front Service Stadium LED Display 10mm With Large Viewing Angle
High Brightness and Saving Engergy
Outdoor HD led display leader,very mature product,each type is at least 2 years ahead of the industry. Using the high brightness led light with the lowest consumption, saving engergy ≥30%, with 28 core technologypatent, whole saving engergy≥50%, energy saving and environment protection.
Adopt general led module series with core technology, make it possible for customer to upgrade the screen to smaller pixel pitch,Increase the secondary marketing opportunity and maintain good relationship.
2. Support Format Low Cost Installation
Broadct color gamut, intelligent adjustment for color temperature and brightness.Uniform color, high contrast, the picture is vivid and nature. Support main displaying format, workable for DVI HDMI 3G/HD/SD SDI display format. Modularized design,low cost for installation and maintenance, easy to operate,support hot plugging.
3. Double Security Strong and Flat
IP65 for rear and back side, fit for naked installation without decoration.Dual backup for power supply and system,double security. The surface is dark black, strong and flat, UV-resistancemodule components,make the screen keep flat
Specification:
| Model | E1000D |
| Pixel pitch (mm) | 10.0 |
| Configuration | DIP346 |
| Module dimension (mm) | 320 x 320 |
| Module weight(kg) | 2.08 |
| Panel dimension(mm) | 1280x960x120 |
| Panel weight(kg) | 50 |
| Pixel density(dots/㎡) | 10000 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 140/100(Horizontal/Vertical) |
| Brightness(cd/㎡) | >7500 |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | 1920 |
| Gray scale(bit) | 14 |
| Ave. power(W/㎡) | 200 |
| Max power(W/㎡) | 698 |
| Working temp./humidity | -20~65℃/10%~90%RH |
| Storing temp./humidity | -20~65℃/10%~90%RH |
| Protection | IP65/IP54 |
| Scanning | 1/4 |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance | CAT cable:<100m;Single mode fiber:<10km |
| Installation type | Fix |
| Life time(hrs) | 100,000 |
| Certificate | CCC/TUV-CE/ETL, etc. |
Features:
1.
Function:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real display effect.
4) Big viewing angle to 140 degree at horizontal line, 100 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
Advantage:
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, big viewing angle, easy repair
3) Quality advantage: each performance index of our products has achieved the domestic advanced level. The craft obeys standards of the nation and the profession, and all components use the finest product in the nation.
4) Service advantage: Better service at same situation, better cooperation at same service!
Service:
1) Your inquiry related to our products or price will be replied in 24hrs
2) OEM&ODM,any your customized lightings we can help you to design and put into product
3) Distributoership are offered for your unique design and some our current models
4) Protection of your sales area,ideas of design and all your private information
5) Top Quality+Reasonable Price+Responsible After Service=Successful & Win
After-Sale Service
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
Applications:
The stadium led displays are widely used in the football field, basketball court , swimming center and diving center.
1. Show function(advertising, such as Nike, Coca cola,etc)
2. Function of time and score(live showing the score)
3. Information processing function
