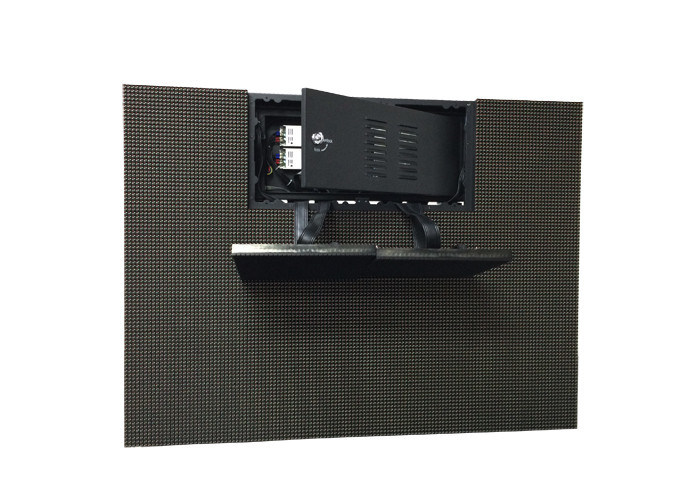

Front Maintance Stadium LED Screen Panel P10mm High Brightness 320 x 320mm
Product Details:
Place of Origin: | China |
Brand Name: | GBLED |
Certification: | CE/RoHS/FCC/ETL etc. |
Model Number: | E1000D |
Payment & Shipping Terms:
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Flight case or wooden box |
Delivery Time: | 15 working days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 5000 sqms per month |
Detail Information |
|||
Pixel Pitch (mm): | 10.0 | Configuration: | DIP346 |
---|---|---|---|
Gray Scale(bit): | 14 | Scanning: | 1/4 |
Viewing Angle(°): | 140/100(Horizontal/Vertical) | Brightness(cd/㎡): | >7500 |
High Light: | stadium led screens,stadium advertising boards |
Product Description
Front Maintance Stadium LED Screen Panel P10 With High Brightness
Features:
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC, together with with the multi-circuit structure, achievs evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness, low attenuation, high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate, high gray scale, ghost-canceling, low power consumption, low EMI, anti-creeping, multi-route redundancy backup-supporting, and dot-by-dot-calibration.
Specification:
Model | E1000D |
Pixel pitch (mm) | 10.0 |
Configuration | DIP346 |
Module dimension (mm) | 320 x 320 |
Module weight(kg) | 2.08 |
Panel dimension(mm) | 1280x960x120 |
Panel weight(kg) | 50 |
Pixel density(dots/㎡) | 10000 |
Flatness error(mm) | ≤0.1 |
Viewing angle(°) | 140/100(Horizontal/Vertical) |
Brightness(cd/㎡) | >7500 |
Contrast | 4000:1 |
Repetition frequency(Hz) | 50/60 |
Refresh frequency(Hz) | 1920 |
Gray scale(bit) | 14 |
Ave. power(W/㎡) | 200 |
Max power(W/㎡) | 698 |
Working temp./humidity | -20~65℃/10%~90%RH |
Storing temp./humidity | -20~65℃/10%~90%RH |
Protection | IP65/IP54 |
Scanning | 1/4 |
Power requirements | AC90~264V, 47~63Hz |
Signal Transmission Distance | CAT cable:<100m;Single mode fiber:<10km |
Installation type | Fix |
Life time(hrs) | 100,000 |
Certificate | CCC/TUV-CE/ETL, etc. |
Description:
1) Strong centralized control technology, Equipment is simple and complete
2) Software environment
3) Multimedia structure, screen directly controlled by the computer
4) Real-time 256 degree gray, reflect the true colors
5) Brightness adjustment
6) Support for multiple display mode
7) Contrast, brightness adjustment of the entire screen ion of Tube Core.
Advantage:
1) Price: we have the best competitive price, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle
3) Quality: We control all steps, that's the guarantee of the quality
Service:
1) Your inquiry related to our products or price will be replied in 24hrs
2) OEM&ODM,any your customized lightings we can help you to design and put into product
3) Distributoership are offered for your unique design and some our current models
Applications:
Widely applied to traffic information distribution of station, quay and airport, conference, shoppingmall, brand presentantion,TV station, stageshow, concert and so on.
