High Resolution SMD LED Display Screen Background LED Screen Custom Made

High Resolution SMD LED Display Screen Background LED Screen Custom Made

High Resolution SMD LED Display Screen Background LED Screen Custom Made

Product Details:

Place of Origin: Shenzhen China
Brand Name: GBLED
Certification: 3C/GMC/ISO9001
Model Number: P6.25

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden Case/ Flight Case
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: >320sqm/month
Contact Now
Detailed Product Description
Product Name: P6.25mm Led Display Cabinet 500X500 Alunimum Cabinet Pixel Pitch: 6.25mm
Size Of Panel: 250x250 Brightness: 5000
Usage: Advertising Pixel Density: 25600
Weight: 8.5 KG For Each Cabinet



High Resolution SMD LED Display Stage Background LED Screen Custom Made



Description

1) High Quality Aluminum Cabinet

2) Super Sharp High Brigthness Output

3) High Refresh Rate

4) Low Maintanence

5) Rental Indoor Led Display Cabinet


specifications

1.  Indoor led Display technical parameter

Pixel Density(pixel/㎡)

25600

White Balance Brightness (cd/㎡)

≥5000(adjustable)

Max Power Consumption

300W/cabinet

Average Power Consumption

150W/cabinet

Color Temperature

3200-9300(adjustable)

View Angle

Horizontal 110°;Vertical 110°

Display Work Method

1/10 scan

Digital Processing

14 bit

Gray Scale

65536 levels per color

Input Signal

Video: PAL/NTSC  Option: VGA , Video , DVD,TV, SDI.HDMI etc

Waterproof

Yes

Working Temperature(ºC)

-20~+45

Humidity(RH)

10% - 80%

Stored Temperature (ºC)

-30~+60

Lifetime (50%Brightness)(Hours)

≥100,000

Input Voltage(VAC)

AC 220(or 110V)

Input Power Frequency(Hertz)

50 to 60

Data Connection

Super CAT6 Cable or Fiber

Operating System

Windows(98/2000/XP/Vista)

Blind Spot Rate

<0.00001

Control Distance

CAT6 cable:150 meters;  Single Fiber: Up To 10 Kilometers

Panel Input Format (With Video Processor)

VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV

Earth Leakage Current(mA)

<2



2. Indoor LED Display Module

Pixel Configuration

SMD3535

Pixel Pitch 6.25 mm
Module Resolution

40 x 40

      Module Size(W*H)

250mm x 250mm

Weigth Per Module

0.65kg

Max Power Consumption

50w

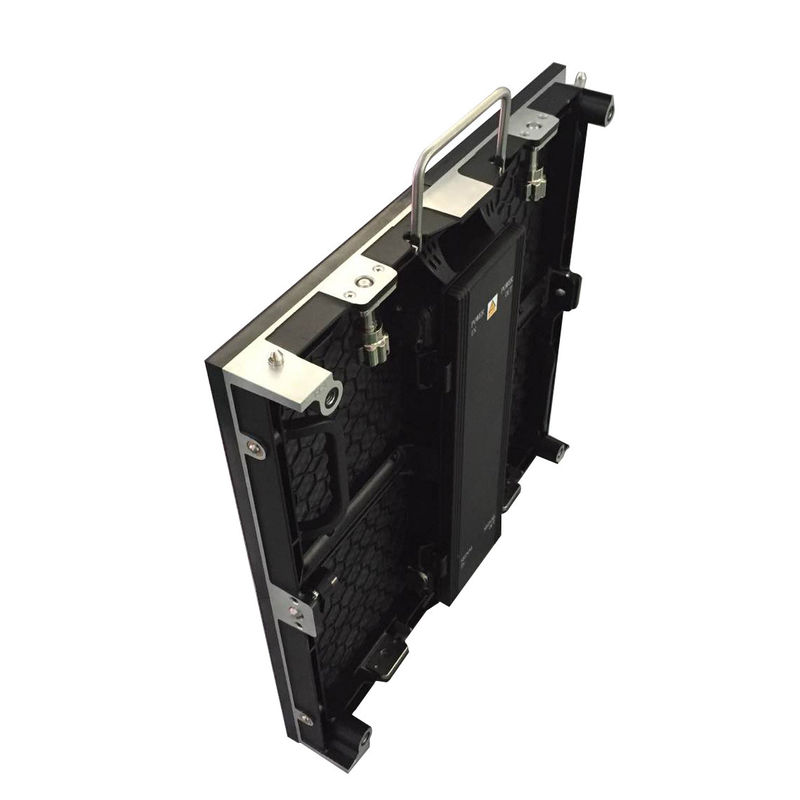

3. Indoor LED Display Cabinet

Cabinet Size(W*H)

500mm × 500mm

Module Qty

4 pcs

   Cabinet Resolution

80 x 80

Cabinet Area

0.25

Weight Of One Cabinet

8.5 kg

Cabinet Pixel

25600

Cabinet Flatness

<0.2/㎡

Cabinet Material

Die Casting Cabinet




Applications

 The LED display is  widely used in public places, advertising, city road network, city parking lot, railway station and metro as well as other transportation guidance systems. and some hall.


competitive advantage

1.  24/7 online support service.
2.  Every LED Product Is a Good Quality .
3.  Every LED Product Will Have Better Price.
4.  Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
5.  Two Years  Maintenance Service With  Free.
