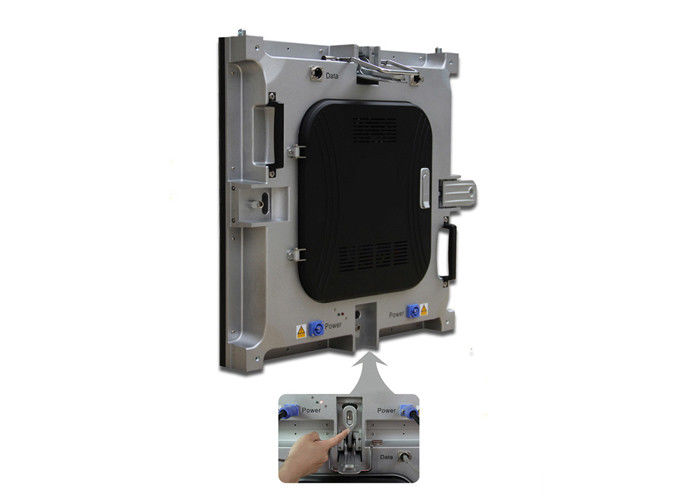

IP40 / IP21 LED Video Wall Rental P6 LED Display Board With Fast Locks
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE/RoHS/FCC/ETL |
| Model Number: | L601 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Viewing Angle(°): | 160°/140°(Horizontal/Vertical) | Panel Structure: | Die-casting Aluminum |
|---|---|---|---|
| Protection: | IP40 / IP21 | Maintenance: | Rear |
| Color Temperature(K): | 5000~9500 (Adjustable) | Contrast: | 4000:1 |
| High Light: | led video wall hire,video wall led display |
||
Product Description
P6 Full Color Video IndoOr Rental LED Display With Fast Locks
Specifications:
|
Model |
L401 |
L481 |
L601 |
||
|
Pixel pitch (mm) |
4.0 |
4.8 |
6.0 |
||
|
Configuration |
SMD2020 |
SMD3528 |
SMD3528 |
||
|
Module dimension (mm) |
288x288 |
||||
|
Module weight(kg) |
0.59 |
0.78 |
0.76 |
||
|
Panel dimension(mm) |
(W)576x(H)576x(T)85 |
||||
|
Panel weight(kg) |
7.8 |
||||
|
Pixel density(dots/㎡) |
62500 |
43403 |
27778 |
||
|
Flatness error(mm) |
≤0.1 |
||||
|
Viewing angle(°) |
160/140 (Horizontal/Vertical) |
||||
|
Brightness(cd/㎡) |
1200 |
1200 |
1500 |
||
|
Color temperature(K) |
5000~9500 (Adjustable) |
||||
|
Contrast |
4000:1 |
||||
|
Repetition frequency(Hz) |
50/60 |
||||
|
Refresh frequency(Hz) |
1200 |
||||
|
Gray scale(bit) |
16 |
||||
|
Ave. power(W/㎡) |
360 |
200 |
250 |
||
|
Max power(W/㎡) |
910 |
510 |
610 |
||
|
Working temp./humidity |
-10~40℃/10%~80%RH |
||||
|
Storing temp./humidity |
-20~60℃/10%~85%RH |
||||
|
Panel structure |
Die-casting aluminum |
||||
|
Maintenance |
Rear |
||||
|
Protection |
IP40 / IP21 |
||||
|
Driving mode |
Constant current driver |
||||
|
Scanning |
1/12 |
1/15 |
1/8 |
||
|
Power requirements |
AC90~264V, 47~63Hz |
||||
|
Signal Transmission Distance |
CAT cable:<100m; Single mode fiber:<10km |
||||
|
Installation type |
Rental / Fix |
||||
|
Life time(hrs) |
100,000 |
||||
|
Certificate |
CCC/TUV-CE/ETL, etc. |
||||
Description:
- Die-casting aluminum body,light weight for easy transportation and high-accuracy installation.
- Tool-free assembly and disassembly.
- Supporting installation of hanging/stacking on the ground.Including stage/TV show/studio,and other events applications.
Features:
• Wide adjustability range allows the user to regulate the display brightness for all environmental conditions.
• Low energy consumption and rapid heat dissipation aid in extending the product life span.
• Easy to maintain with simple LED module replacement.
• Using SMT or AI automatic production line reduces manufacturing variation and improves product quality.
