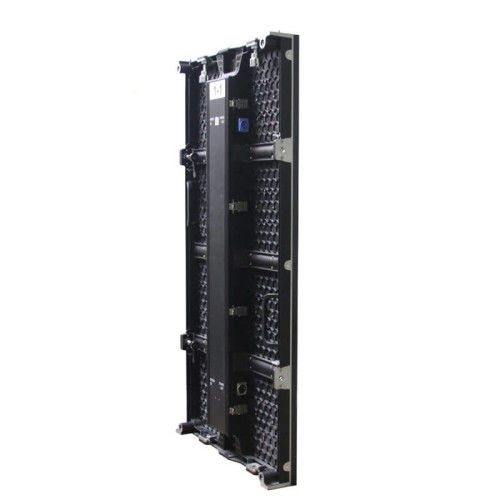

CCC CE Approval LED Video Wall Rental P3.91 Indoor LED Video Wall Panels
Product Details:
| Place of Origin: | china |
| Brand Name: | GBLED |
| Certification: | ccc,ce |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
|
Detail Information |
|||
| Configuration: | SMD2020 | Module Dimension: | (W)250mm X(H)250mm |
|---|---|---|---|
| Panel Dimension: | (W)500x(H)1000x(T)80 | Flatness Error(mm): | ≤0.1 |
| Certification: | Ccc,ce | Origin: | China |
| High Light: | led video wall hire,video wall led display |
||
Product Description
P3.91 Indoor Full Color Led Display Rental / Led Video Panels For Stage Performance
500x1000mm big panel,speedily and easily mounting,perfect 16:9 colorful image.
Ultra thin body,die-casting aluminum structure,high-accuracy connection,error<0.1mm.
Natural aluminum heat conduction design(no-cooling fan),quiet world.
HQ-image.Good consistency / No particle and mosaic phenomenon.
Muti-layer circuit PCB,uniform current distribution,low power consumption,fast heat dissipation,prolong the life of the screen.
Tool-free locking system.
Technical Specification
| Model | C391 | C481 | C561 | C480 | C620 | |||
| Pixel pitch(mm) | 3.9 | 4.8 | 5.6 | 4.8 | 6.2 | |||
| Configuration | SMD2020 | SMD2020 | SMD3528 | SMD2828 | SMD3535 | |||
| Module dimension | (W)250mm x(H)250mm | |||||||
| Module weight(kg) | 0.55 | 0.50 | 0.48 | 0.77 | 0.68 | |||
| Panel dimension(mm) | (W)500x(H)1000x(T)80 | |||||||
| Panel weight(kg) | 12 | |||||||
| Pixel density(dots/㎡) | 65536 | 43264 | 30976 | 43264 | 25600 | |||
| Flatness error(mm) | ≤0.1 | |||||||
| Viewing angle | 120°/120°(Horizontal/Vertical) | |||||||
| Brightness(cd/㎡) | 1200 | 6000 | 6000 | |||||
| Color temperature(K) | 5000~9500 (Adjustable) | |||||||
| Contrast | 4000:1 | |||||||
| Repetition frequency | 50/60Hz | |||||||
| Refresh frequency | 1920Hz | |||||||
| Gray scale(bit) | 16 | |||||||
| Ave. power(W/㎡) | 280 | 230 | 200 | 340 | 250 | |||
| Max power(W/㎡) | 720 | 580 | 500 | 840 | 640 | |||
| Working temp./humidity | -10~40℃/10%~80%RH | |||||||
| Storing temp./humidity | -20~60℃/10%~85%RH | |||||||
| Panel structure | Die-casting aluminum | |||||||
| Maintenance | Rear | |||||||
| Protection | IP40/IP21 | IP40/IP21 | IP40/IP21 | IP65/IP54 | IP65/IP54 | |||
| Driving mode | Constant current driver | |||||||
| Scanning | 1/16 | 1/13 | 1/11 | 1/9 | 1/7 | |||
| Power requirements | AC90~264V, 47~63Hz | |||||||
| Life time(hrs) | 100,000 | |||||||
| Certificate | CCC/TUV-CE/ETL, etc. | |||||||
After services
(i) Warranty is for 2 years.
In the warranty period, we will maintain and replace the defect components for free without any man-made damage, but you should pay for shipping fee, both back and forth .After 2 years, we only charge the material cost, you should be responsible for shipment.
(ii) Free training: You can send your engineers to our factory for one week free of charge training, which includes the software operation, installation, adjustment, basic repairing, etc.
(iii) Technical Support: If needed, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such as visa, hotel, food, both trip plane ticket, and also USD150/day/staff (from our engineer’s departure from Shenzhen) and help to arrange our staff's visa.
Packing & Delivery
For Iron cabinet of indoor and outdoor LED display screens, we use wooden case to pack,
For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets
By air or by sea! FOB or CIF
Applications:
Trade shows, live shows, rental events, TV studios, exhibitions.
