Electronic HD Large Outdoor Video Screens / Large Viewing Angle Stage LED Video Wall
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GBLED |
| Certification: | CCC,CE,ETC,ETL |
| Model Number: | Talent Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 1 week |
|
Detail Information |
|||
| Brand: | GBLED | Model: | Talent Series |
|---|---|---|---|
| Certification: | CCC,CE,ETC,ETL | Gray Scale: | 14bit |
| Working Temp./humidity: | -20~50℃/10%~90%RH | Storing Temp./humidity: | -40~60℃/10%~90%RH |
| High Light: | video wall led display,led video panel rental |
||
Product Description

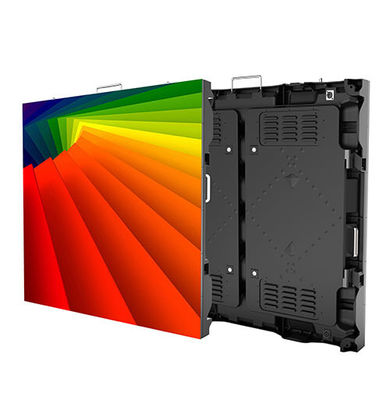

Electronic HD Outdoor Led Advertising Display Screen Large Viewing Angle
Stable performance, wide applicability, high refresh rate, high protection grade, superb cost effective:
1. The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions.
2. Superb refresh rate provides you coherent video effects to meet your needs for high display quality.
3. Superb cost effective offers you both top notch quality and reasonable price, maximizing the value of your investment
| Model | T400 | T500 | T660 | T800 | T1000 |
| Pixel pitch | 4mm | 5mm | 6.7mm | 8mm | 10mm |
| Configuration | 3in1 SMD | ||||
| Module dimension | 320×160 | ||||
| Module weight | 0.60kg | 0.58kg | 0.60kg | 0.53kg | 0.51kg |
| Panel dimension | 960x960x120mm | 960x960x120mm | 960x960x120mm | 960x960x120mm | 960x960x120mm |
| Panel weight | – | – | – | – | – |
| Pixel density | 62500dots/㎡ | 40000dots/㎡ | 22500dots/㎡ | 15625dots/㎡ | 10000dots/㎡ |
| Flatness error | ≤0.5mm | ||||
| Viewing angle | 140°/120° | ||||
| Brightness | >5500 | >6500 | >5500 | >4500 | >6500 |
| Contrast | 4000:1 | ||||
| Repetition frequency | 50/60Hz | ||||
| Refresh frequency | 840 | 1320 | 960 | 720 | 1440 |
| Gray scale | 14bit | ||||
| Ave. power | 450W/㎡ | 450W/㎡ | 310W/㎡ | 315W/㎡ | 400W/㎡ |
| Max power | 1140W/㎡ | 1140W/㎡ | 760W/㎡ | 780W/㎡ | 1000W/㎡ |
| Working temp./humidity | -20~50℃/10%~90%RH | ||||
| Storing temp./humidity | -40~60℃/10%~90%RH | ||||
| Panel structure | Die-cast aluminum | ||||
| Maintenance | Rear | ||||
| Protection | IP65(front)/IP54(rear) | ||||
| Driving mode | Constant current driver | ||||
| Scanning | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Power requirements | AC90~264V, 47~63Hz | ||||
| Life time | 100,000hrs | ||||
| Certificate | CCC/TUV-CE/ETL, etc. | ||||
Service:
Technical training
Our company will train the users based on the manual, system use guide and maintenance guide. The training include system use, system maintenance and equipment protection.
After-sales services modes
A. Phone service
CLT after-sales Services Department provides customers with 24 –hour- phone service. When you contact us, please let us know the following information:
1. Your name and phone number
2. Product model
3. Detailed fault information (if the fault could be presented by pictures, please takes pictures and sends them to us as possible as you can)
Our after-sales service engineers will offer technical support and guidance based on your description.
B. Real-time communication service
CLT after-sales service engineers could provide customer services through TM & E-mail & Skype, for example, sending the video files of software operation & graphic card setup by TM to show how to operate.
C. Remote control service
CLT can operate the customer’s computer remotely via Internet, to install and set up software for customers, and to dispose of the technical fault of LED display system software.
After-sale service
1: we will replace the broken parts with new parts in the next order
2: choose the cheapest and safest shipping company
3: Track the order until you get the goods
Application
This kind of LED full color led video wall is appliled for advertising, city beautifying, information publicity, great concerns and relative activities.
·--- Outdoor advertising, digital billboards, advertising in big companies
·--- Sports halls, fields, playgrounds.
·--- Airports, bus stations and railway passenger terminals.
·--- Facades of shopping malls, department stores, banks and car dealerships.
Our company:
We are the professional LED screen service provider, was Established in 2004 with a registered capital of more than $ 10 Million, now ranks the leading manufacturer of LED display. Since its inception, our company has kept rapid growth; Our products have been sold to more than 130 countries and regions, and the brand GBLED has got highly recognition in the world.
As always, on "Action speaks louder than words" as its brand business philosophy. Working hard and being a magnanimous man. We are been utilizing the advanced technologies and pursuing innovation to produce the best quality product, and regarding every order as our vanity project. To make our product perfect, we introduce the most advanced production equipments and detecting facilities, So as to maintain a strict quality standard of every production process. Thanks to those efforts, our products have passed many certificates, such as, CE, UCS, CCC, FCC approval etc.
Our product quality management is strictly adhering to the ISO9001: 2008 certifications system and 7S management standard, to seek for greater perfection, which exerts profound influence on standardization of LED industry.GBLED is a national new high-tech enterprise,which owns number of national patents and has been cited as "Shenzhen Flat Panel Display Industry Association", "Member of Shenzhen SME Development Association", "Member of Semi-conductor and Lighting Promotion Association", "Member of Shenzhen Electronic Chamber of Commerce", "Member of China Optics and Optoelectronics Industry Association and LED Display Applications Branch Association", "Certified Supplier of Made-in-China" etc.
With an outstanding business performance and good social reputation,We has won respect from various circles of society, and acquired the "2009-2010 Excellent LED Display Application Engineering", "China Well-known Enterprise", "AAA Quality, Service and Prestige Unit", "China Top 100 Enterprise", "Guangdong China Top 10 Enterprise", "Shenzhen Well known Brand Enterprise", "National New High-tech Enterprise" etc.
Here we promise that, every client, every order and every feedback will be valued byGift Booking. Let's hand in hand, regarding "Showing the beauty of the world" as our mission, and creating a more colorful and brighter world.
