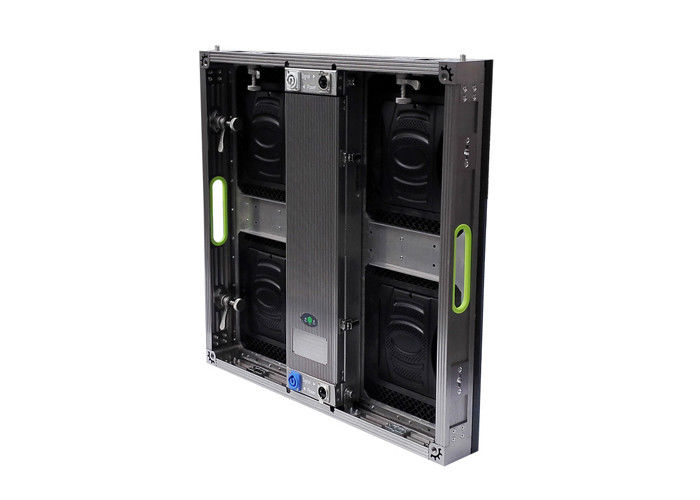

Indoor Full Color LED Display Ultra Thin LED Screen Rental Easy To Install Without Tools
Product Details:
| Place of Origin: | China |
| Brand Name: | GBLED |
| Certification: | CE/RoHS/FCC/ETL |
| Model Number: | X481 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case |
| Delivery Time: | 15 working days after received your payment |
| Payment Terms: | T/T |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Refresh Frequency(Hz): | 1800 | Gray Scale(bit): | 16 |
|---|---|---|---|
| Flatness Error(mm): | ≤0.1 | Viewing Angle(°): | 140/100(Horizontal/Vertical) |
| Maintenance: | Rear | Driving Mode: | Constant Current Driver, 1/12 Scanning |
| High Light: | led video wall hire,video wall led display |
||
Product Description
LED Display High Contrast Ultra Thin Indoor Rental Easy To Install Without Tools
Specifications:
|
Model |
X481 |
X601 |
|||||
|---|---|---|---|---|---|---|---|
|
Pixel pitch(mm) |
4.8 |
6.0 |
|||||
|
Configuration |
SMD |
||||||
|
Module dimension(mm) |
(W)288x(H)288 |
||||||
|
Module weight(kg) |
0.98 |
0.95 |
|||||
|
Panel dimension(mm) |
(W)576x(H)576x(T)76 |
||||||
|
Panel weight(kg) |
8.1 |
7.9 |
|||||
|
Pixel density(dots/㎡) |
43264 |
27778 |
|||||
|
Flatness error(mm) |
≤0.1 |
||||||
|
Viewing angle(°) |
140/100(Horizontal/Vertical) |
||||||
|
Brightness(cd/㎡) |
1800 |
1500 |
|||||
|
Color temperature(K) |
12388 |
14263 |
|||||
|
Repetition frequency(Hz) |
60 |
||||||
|
Refresh frequency(Hz) |
1800 |
||||||
|
Gray scale(bit) |
16 |
||||||
|
Ave. power(W/㎡) |
330 |
300 |
|||||
|
Max power(W/㎡) |
610 |
490 |
|||||
|
Working temp./humidity |
0~50℃/10%~90%RH |
||||||
|
Storing temp./humidity |
-40~60℃/10%~90%RH |
||||||
|
Panel structure |
Die-casting aluminum |
||||||
|
Protection |
IP40/IP20 |
||||||
|
Maintenance |
Rear |
||||||
|
Brightness/color correction |
Yes |
||||||
|
Driving mode |
Constant current driver, 1/12 scanning |
||||||
|
Power requirements |
AC220±10%, 50Hz |
||||||
|
Signal Transmission Distance |
CAT cable:<100m;Single mode fiber:<10km |
||||||
|
Installation type |
Rental/Fix |
||||||
|
Life time(hrs) |
100,000 |
||||||
|
Certificate |
CCC/TUV-CE/ETL, etc. |
||||||
Description:
- Nice design for easy installation.
- Patented mask,eliminating the dark spots,improving consistency and viewing angle.
- High contrast,ideal gray scale,presenting the most real pictures.
- Supporting brightness and color correcting of the whole screen.
Advantages:
1. Light weight, the weight of the cabinets less than 8.5 kg; easy installation.
2. The module can be quickly removed and easy to maintain.
3. Simply perfect appearance, cabinet is adopted die casting molding, high precision and can be realized fine adjustment.
4. Has a great universality and easy to upgrade.
5. Different pixel pitches are available.
Service:
1. We can provide customers a comprehensive solution delivery of series-related products.
2. We can provide customers high quality products which allow them to scream.
3. We can provide custom-made service.
4. We can provide customers one year free warranty, and support renewals extended.
5. We can provide customers the free installation guidance and technical support.
6. We are willing to provide any countries and regions in the world with products and technical support. At present, our product has covered more than 100 countries and regions.
